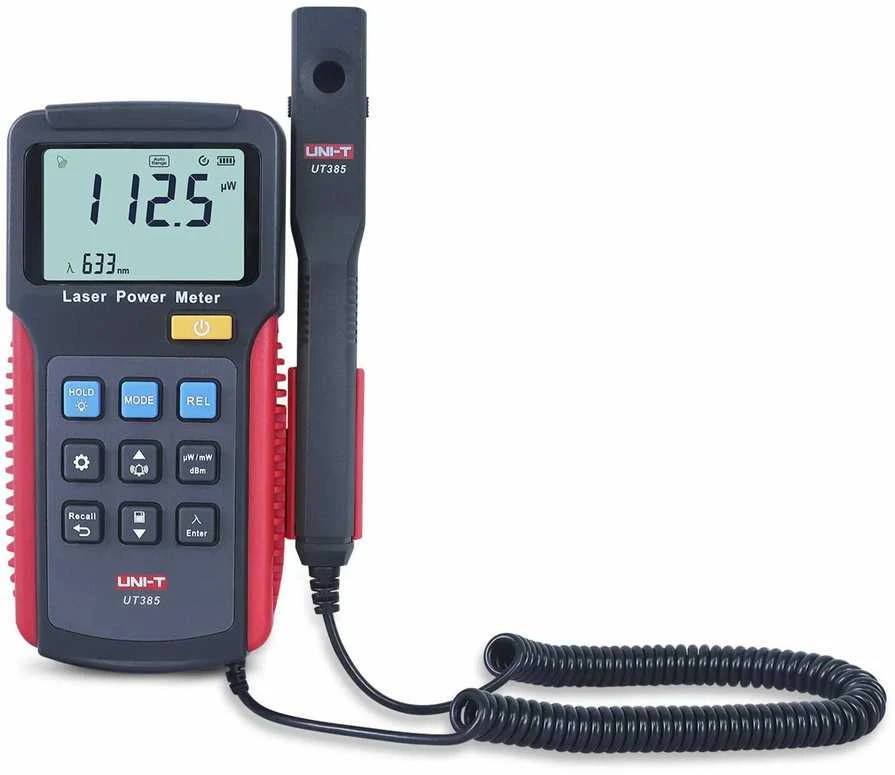

Uni-T UT385 Laser Power Meter

The Uni-T UT385 Laser Power Meter is a practical device designed for precise measurement of laser beam power in the range from 0 µW to 39.99 mW, making it ideal for testing, maintenance, and laboratory applications. Equipped with a sensitive detection sensor, a clear LCD display, and the ability to select wavelengths in the 400–1100 nm range, it allows you to adapt measurements to various light sources. The compact split-type design with a flexible cable facilitates work in various conditions, while features such as data logging and threshold alarms enhance measurement control.

Measurement accuracy and ease of use

Thanks to its precise sensor, the UT385 delivers stable and reliable results, which is crucial when working with laser devices that require parameter monitoring. The clear, backlit LCD screen allows for quick data reading even in low light, and the 0.5-second sampling rate enables real-time monitoring of changes. The ability to store up to 199 data sets facilitates analysis of results over time, while low power consumption and automatic shut-off ensure longer operation without the need for frequent battery replacement.

Functionality tailored to various applications

The ability to select the wavelength (including 520 nm, 633 nm, 650 nm, and 780 nm) allows for precise matching of the meter to a specific laser source, which increases measurement accuracy. The threshold alarm function alerts you when a set value is exceeded, helping to protect equipment and keep parameters within a safe range. The device operates over a wide range of temperatures and humidity levels, making it suitable for both workshop and laboratory environments.

Uni-T UT385 Laser Power Meter
9V battery
USB cable
User manual (English)
Document download guide
Packaging
Storage box

Manufacturer	Uni-T
Model	UT385
Measurement range	0 µW ~ 39.99 mW
Accuracy	0–10 µW: ±(5% + 0.3); 10 µW–39.9 mW: ±5%
Wavelength range	400 nm ~ 1100 nm
Wavelength presets	520 nm, 633 nm, 650 nm, 780 nm
Display	4-digit LCD, backlight
Sampling frequency	0.5 s
Data memory	199 sets
Operating temperature	0°C ~ 40°C
Operating humidity	≤80% RH (non-condensing)
Storage temperature	-10°C ~ 50°C
Power supply	9V battery (6F22)
Dimensions	198 × 104 × 35 mm
Weight	319 g
Certifications	CE, RoHS
