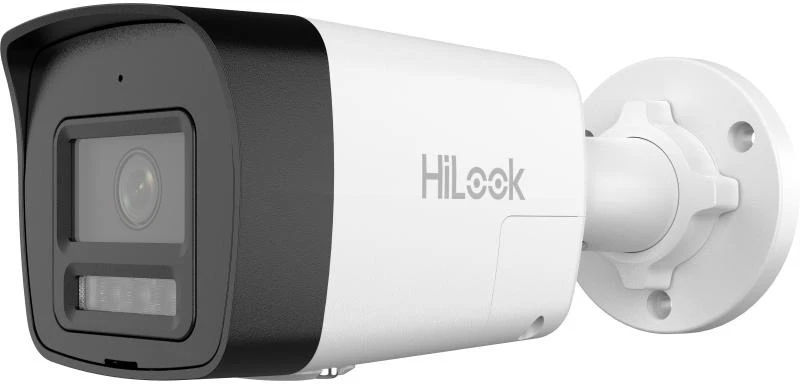

HiLook bullet IPC-B180HAP-LUF / SL F2.8 (balta, 8 MP, 30 m IR, 30 m LED, Audio Alarm), žema kaina

Patvirtinimai
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Aplinkosauga CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Apsauga IP67: IEC 60529-2013
Saugumas CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Garsas
Garso bitų dažnis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Garso atrankos dažnis 8 kHz/16 kHz
Garso tipas Mono sound
Pašalinių garsų šalinimas Yes

DORI
DORI 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Sąsaja Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light

Bendra informacija
Matmenys 179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")
Flashing Light Red and Blue Light
Pagrindinės funkcijos Heartbeat,anti-banding,mirror,password protection,password reset via email
Kalba English, Ukrainian
Medžiaga Metal
Pakuotės dydis 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Maitinimas 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Svoris Approx. 450 g (1.0 lb.)
Svoris su įpakavimu Approx. 655 g (1.4 lb.)

Nuotrauka
Dienos/nakties perjungiklis Day,Night,Auto,Schedule
Nuotraukų pagražinimas BLC,HLC,3D DNR
Vaizdo nustatymai Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privatumo kaukė 4 programmable rectangle privacy masks
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB

Sąsaja
Integruotas mikrofonas Yes,1 built-in microphone
Integruotas garsiakalbis Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukas Yes

Objektyvas
Diafragma F2.0
Focal Length & FOV 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° 4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
Rainelės tipas Fixed
Objektyvo tvirtinimas M12
Objektyvo tipas Fixed focal lens, 2.8 and 4 mm optional

Tinklas
API Open Network Interface (Profile S, Profile T, Profile G),ISAPI,SDK
Klientas iVMS-4200,HiLookVision
Protokolai TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
Sauga Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
Naudotojas/prievadas Up to 32 users 3 user levels: administrator, operator, and user
Naršyklė Plug-in required live view: IE 10, IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+

Vaizdas
Bitų dažnio valdymas CBR,VBR
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Pagrindinis srautas 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Antrinis srautas 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Vaizdo bitų dažnis 32 Kbps to 16 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
