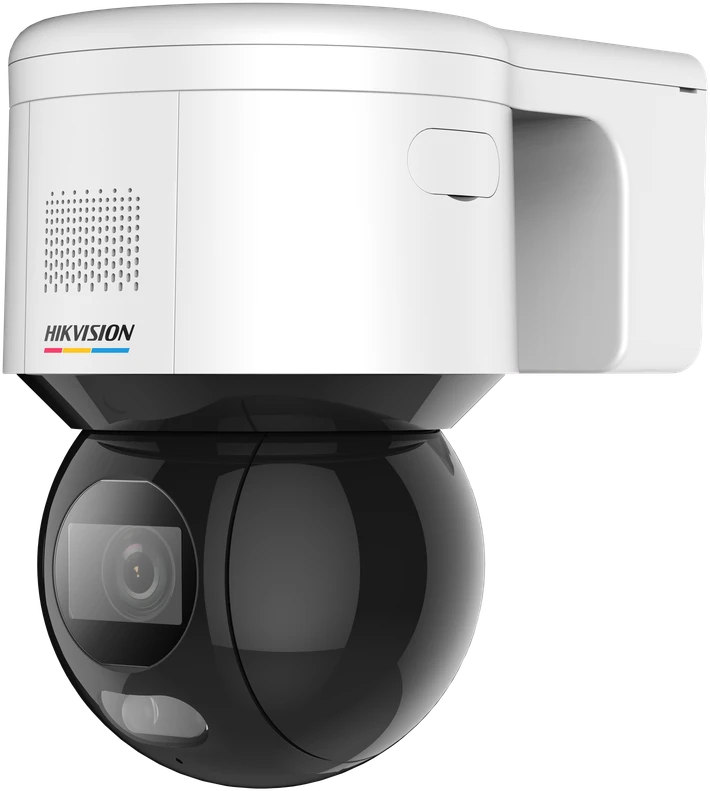

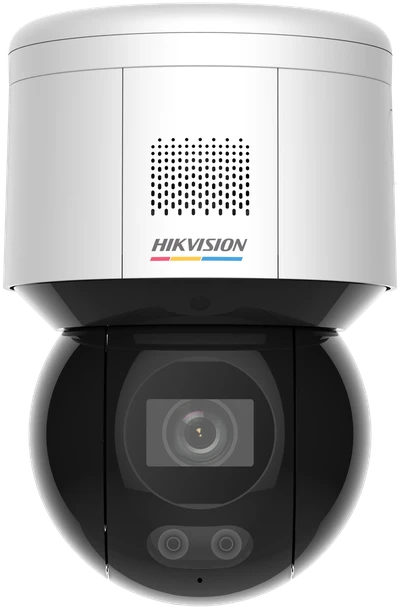

„Hikvision“ mini spartusis kupolas DS-2DE3A400BW-DE(F1)(T5), žema kaina

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas
50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG
SVC H.264 and H.265 encoding
ROI 8 fixed regions for each stream

Internetas
Vidinė atmintis NAS (NFS, SMB/ CIFS)
Protokolai IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
Tiesioginis vaizdo žiūrėjimas Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Saugumas Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Naršyklė IE 10+, Chrome 57+, Firefox 52+, Safari 12+

Nuotrauka
Diena/Naktis režimas Day, night, auto, scheduled-switch
Nuotraukų pagražinimas BLC, HLC, 3D DNR
WDR 120 dB WDR
Rūko šalinimas Digital defog
Regioninė ekspozicija Yes
Nuotraukos nustatymai Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Nuotraukos parametrų keitiklis Yes
Privatumo kaukė Up to 24 masks (8 masks for each scene)
SNR ＞52 dB

Sąsaja
Įmontuotas garsiakalbis 1 built-in speaker
Galia 12 VDC; < 60 mA
Interneto sąsaja 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
Saugyklos vieta Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
Signalizacija 1 input, 1 išvestis
Garsas 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimas Yes

Funkcijos
Pagrindinės funkcijos Video tampering alarm, motion detection, alarm input, alarm output, exception
Išmaniosios funkcijos Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
Signalizacijos sąsaja Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing

Išmaniosios funkcijos
Veido atpažinimas Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
Perimetro apsauga
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Pagrindinis
Pagrindinės funkcijos Mirror, password protection, watermark, IP address filter
Sistemos parametrai
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A

Max. 14 W (including max. 4 W for white light)
Darbo sąlygos Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
Rasos šalinimas Yes
Dydis 179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71")
Approx. 1.125 kg (2.48 lb.)

Patvirtinimai
Apsauga IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
