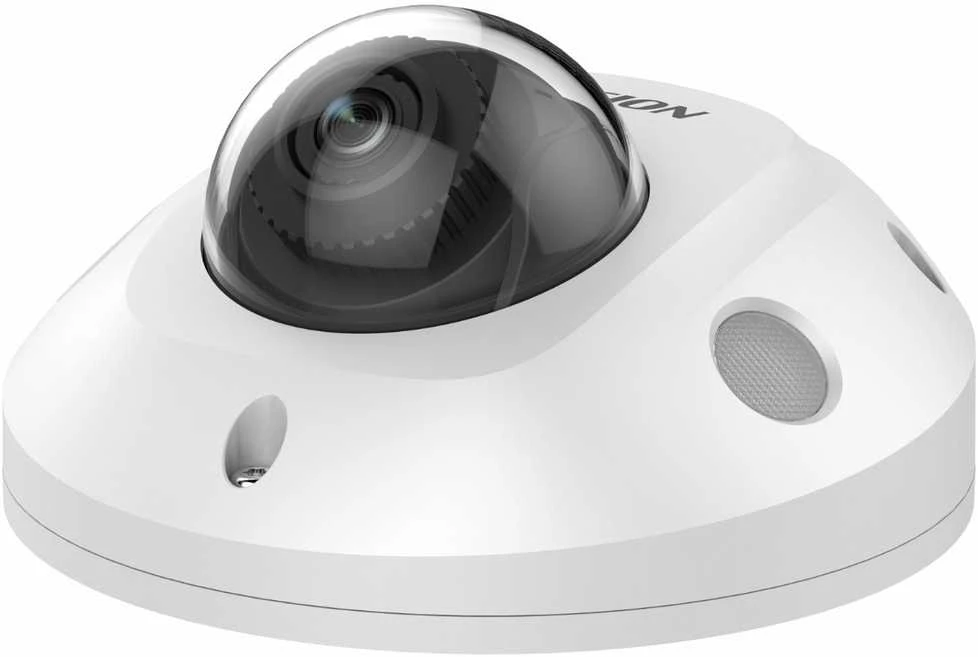

Hikvision mini dome DS-2CD2546G2-IS F2.8 (balta, 4 MP, 30 m. IR, AcuSense), žema kaina

Dėmesio! Ar prekė turi maitinimo šaltinį (power supply) teiraukitės pas vadybininką

Kamera
Sensorius	1/2.7" Progressive Scan CMOS
Min. apšvietimas	Color: 0.003 Lux @ (F1.4, AGC ON)
Užrakto greitis	1/3 s to 1/100,000 s
Diena naktis	ICR Cut
Lėtas užraktas	Yes
Reguliavimo kampas	Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
WDR	120 dB
Objektyvas
Objektyvas ir matymo kampas	2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123° 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
Diafragma	F1.4
Objektyvo mantavims	M12
Diafragmos tipas	Fixed
Apšvietimas
IR atstumas	Up to 30 m
Bangos ilgis	850 nm
Išmanus papildomas pašvietimas	Yes
Papildomas pašvietimas	IR
Video
Raiška	2592 × 1944
Pagrindinis srautas	50Hz: 20 fps (2592 × 1944) 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2592 × 1944) 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Antrinis srautas	50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Trečias srautas	50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Suspaudimas	Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit dažnis	32 Kbps to 8 Mbps
H.264	BaseLine Profile/Main Profile/High Profile
H.265	Main Profile
H.264+	Main Stream supports
H.265+	Main Stream supports
Bit dažnio kontrolė	CBR/VBR
Video konfiguravimas (SVC)	Yes
Svarbio sritys (ROI)	1 fixed region for main stream and sub-stream
Audio
Aplinkos triukšmo filtravimas	Yes
Audio dažnis	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio suspaudimas	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit dažnis	64Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 192Kbps(MP2L2)/ 8 to 320Kbps(MP3)/16 to 64Kbps(AAC)
Tinklas
Vienalikė peržiūra	Up to 6 channels
API	Open Network Video Interface (Porfile S, Profile G), ISAPI, SDK
Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Vartotojai	Up to 32 users. 3 user levels: administrator, operator and user
Apsauga	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Tinklinis talpinimas	MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Klientai	iVMS-4200, Hik-Connect, Hik-Central
Naršyklės	Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Vaizdas
Diena / naktis perjungimas	Day, Night, Auto, Schedule
Vaizdo gerinimas	BLC, HLC, 3D DNR
Vaizdo parametrų perjungimas	Yes
Vaizdo nustatymai	Rotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR	≥ 52 dB
Sąsajos
Integruotas mikrofonas	Yes
Audio	-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type: non-equilibrium
Alarmas	-S: 1 alarm input, 1 alarm output (max. 24 VAC/24 VDC @500 mA)
Vidinė atmintis	Built-in micro SD slot, up to 256 GB
Perkrovimas	Yes
Ryšio sąsaja	1 RJ45 10M/100M self-adaptive Ethernet port
Išmanios funkcijos
Pagrindiniai įvykiai	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Išmanūs įvykiai	Scene change detection
Gylusis mokymasis
Veido aptikimas	Yes
Perimetro apsauga	Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Bendriniai
Laikymo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbinės sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Maitinimas	12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3
Energijos sąnaudos	12 VDC, 0.58 A, max. 7 W PoE: (802.3af, 36 V to 57 V), 0.24 A to 0.15 A, max. 8.5 W
Maitinimo jungtis	Ø5.5 mm coaxial power plug
Medžiagos	Metal
Matmenys	Ø110 × 57.4 mm (Ø4.4" × 2.3")
Pakuotės matmenys	134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
Svoris	Approx. 370 g (0.8 lb.)
Svoris su pakuote	Approx. 650 g (1.4 lb.)
Apjungimo būdai	Upload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger capture, send email Only -S model supports: audible warning, trigger alarm output, trigger alarm input
programos versija	V5.5.135
Kalbos	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Programos perkrovimas	Yes
Patvirtinimai
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Saugumas	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Aplinka	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Apsauga	IP67 (IEC 60529-2013), IK08 (IEC 62262:2002)
