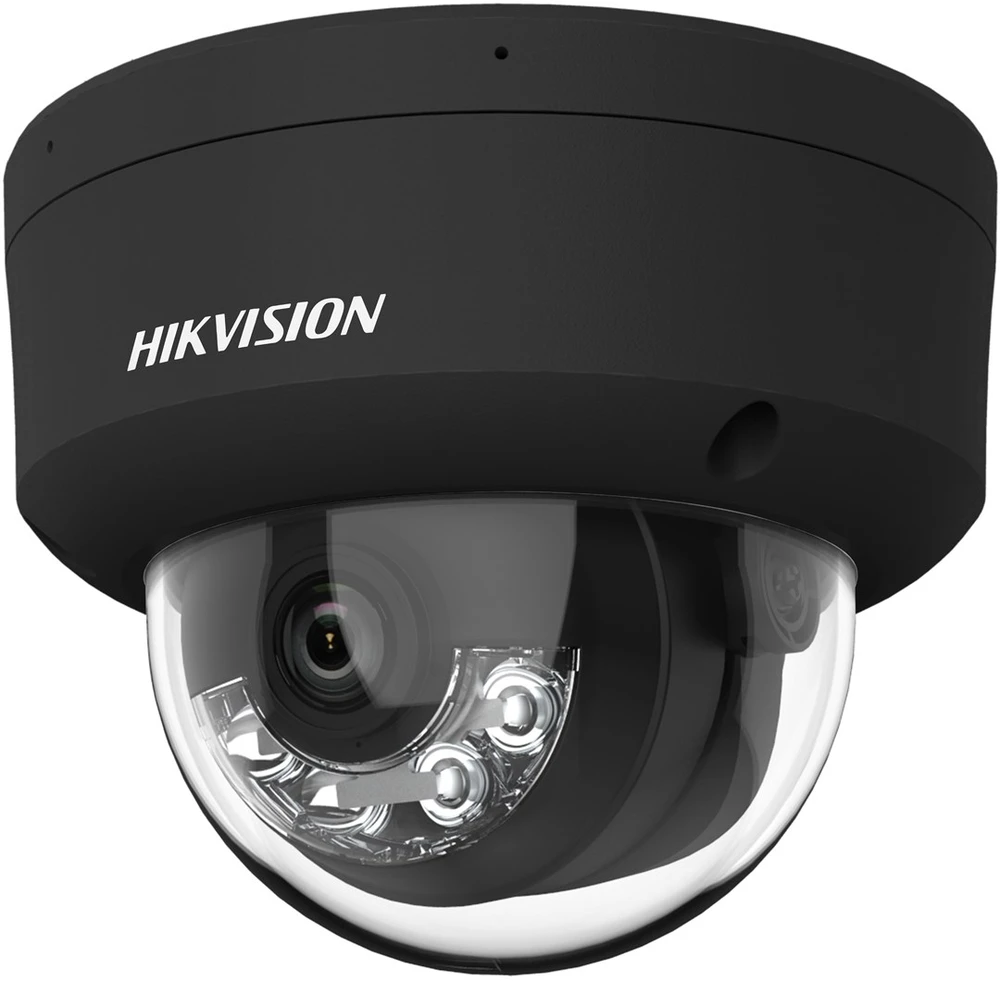

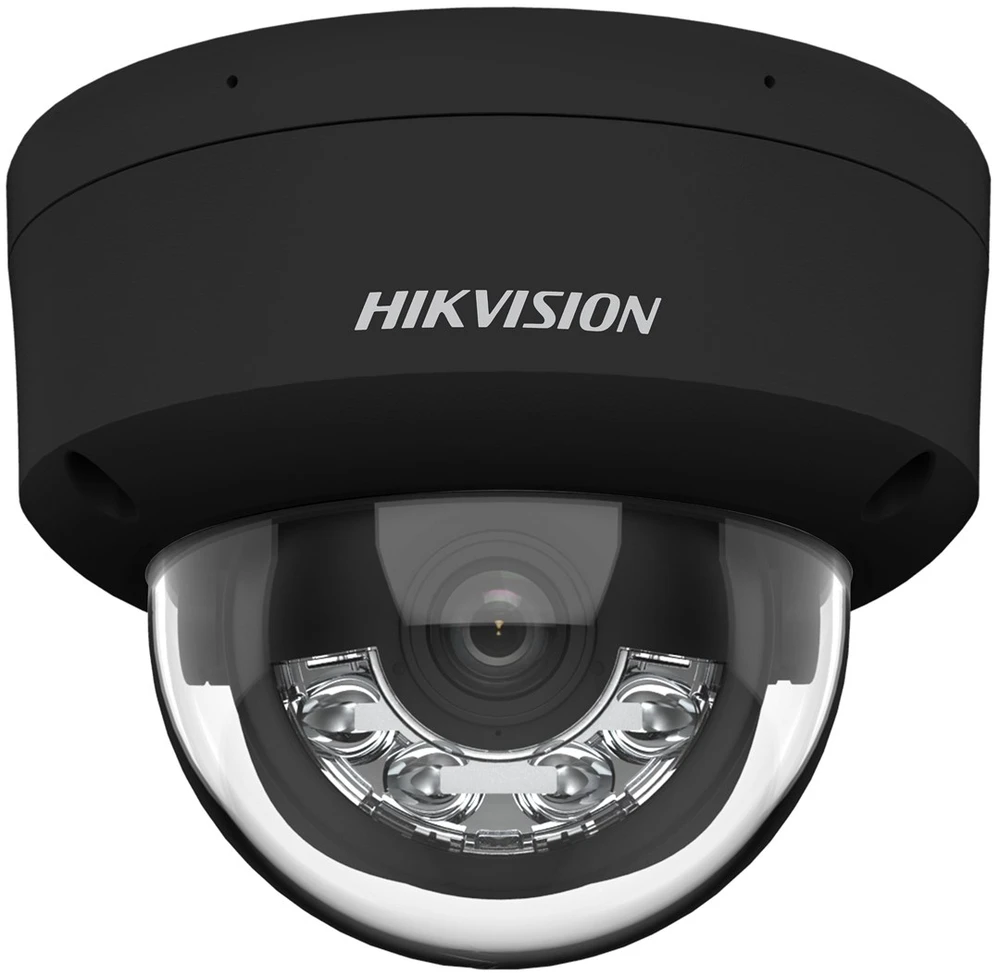

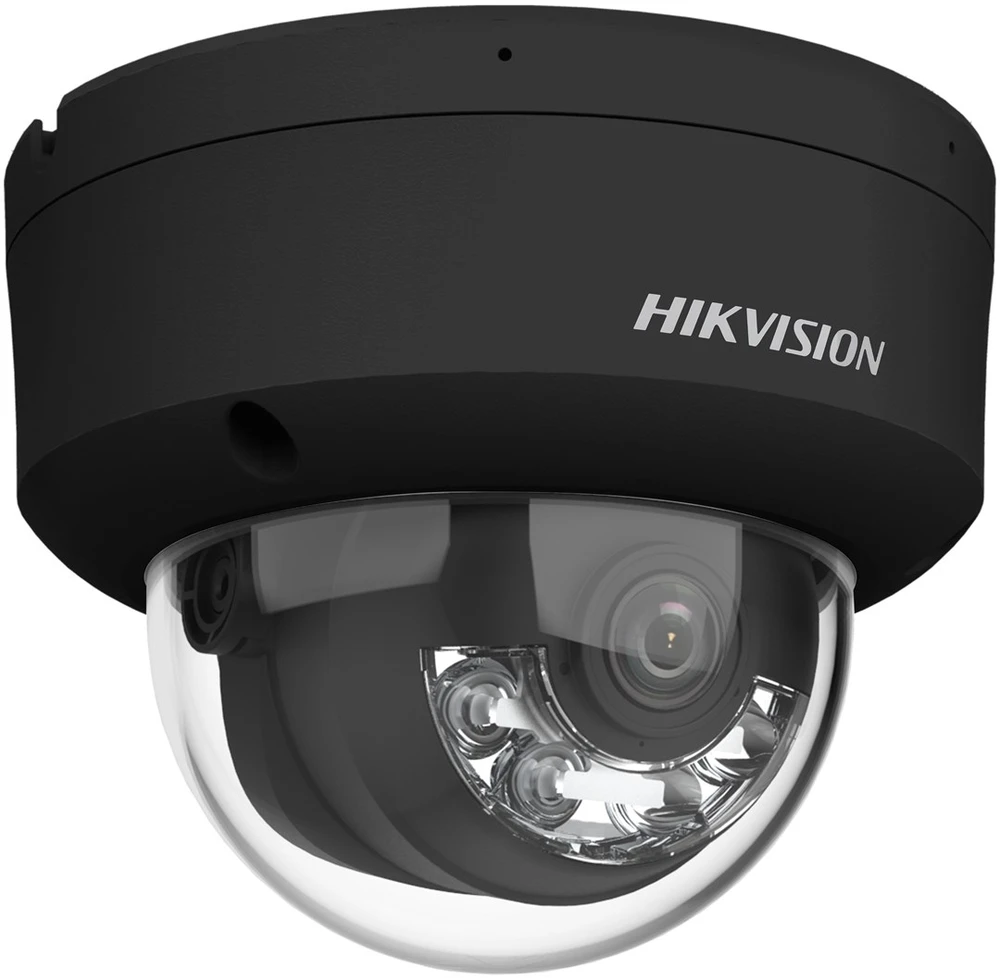

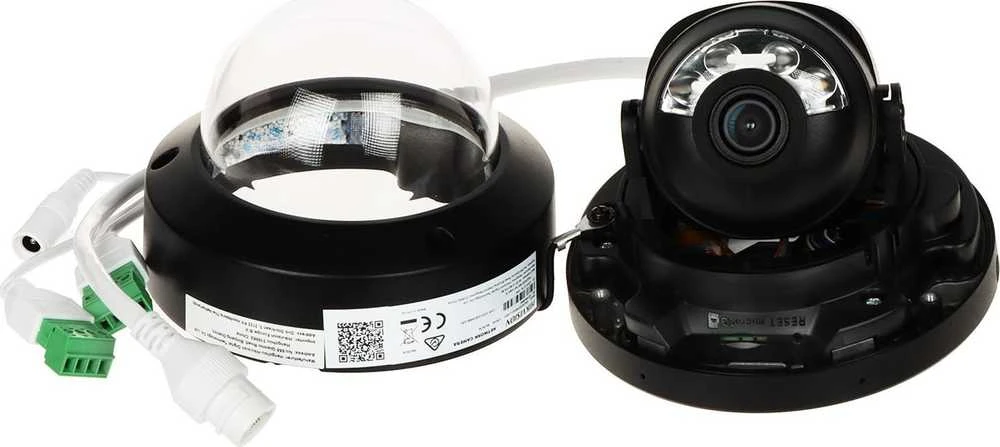

Hikvision kupolinė kamera DS-2CD2143G2-LIS2U 2.8mm (juodas, 4MP, AcuSense, IR+LED 30 m.), žema kaina

Dėmesio! Ar prekė turi maitinimo šaltinį (power supply) teiraukitės pas vadybininką

Patvirtinimai
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Aplinkosauga CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Apsauga IP67: IEC 60529-2013,IK10: IEC 62262:2002
Saugumas CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1

Garsas
Garso bitų greitis -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis -2U: 8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimas -2U: Yes

DORI
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Išmaniosios funkcijos
Perimeter Protection Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,-S: trigger alarm output

Bendras

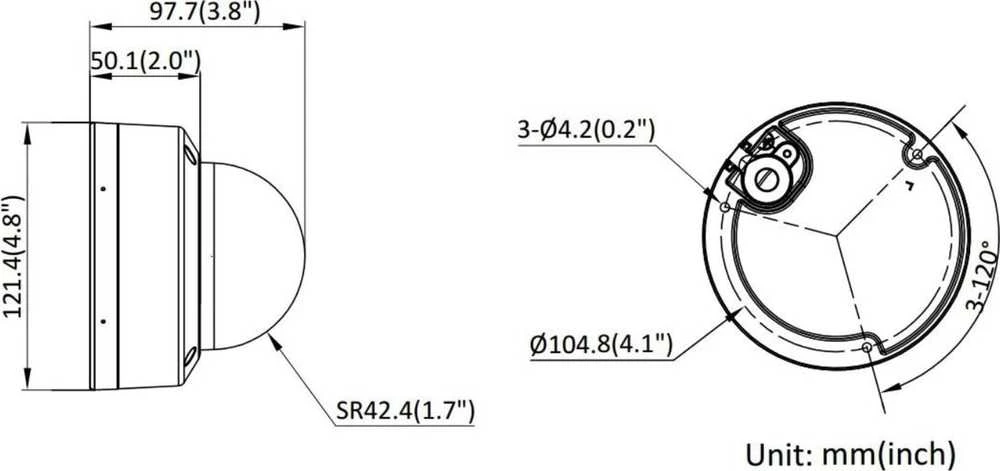

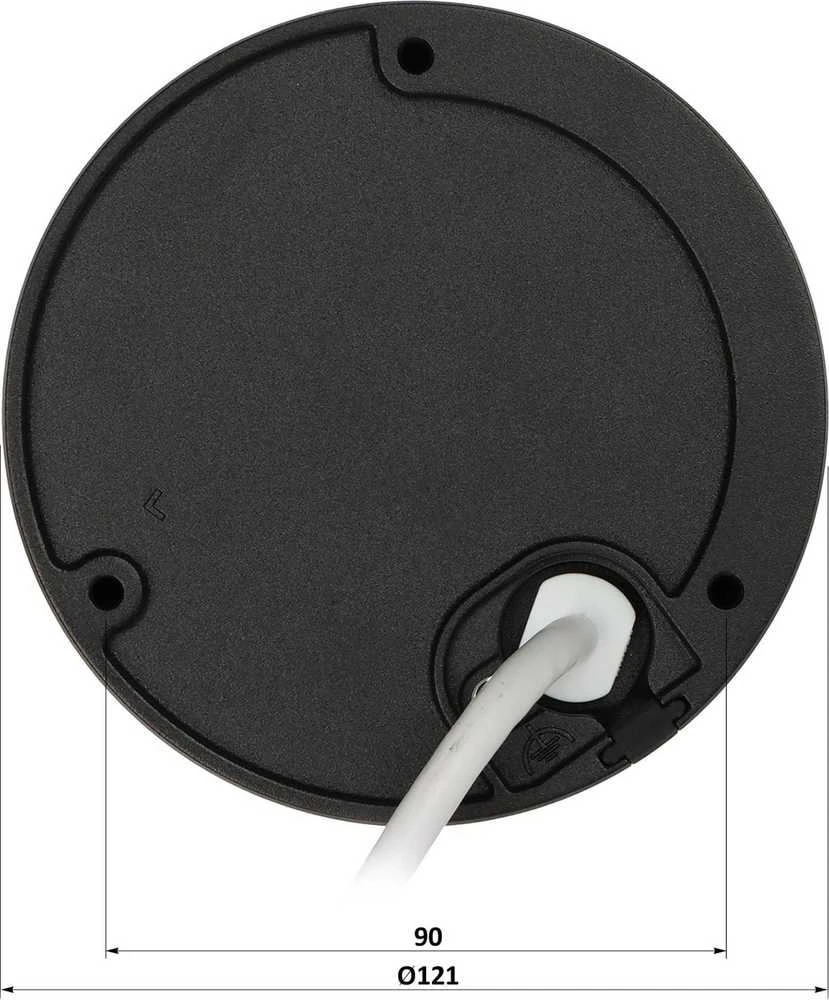

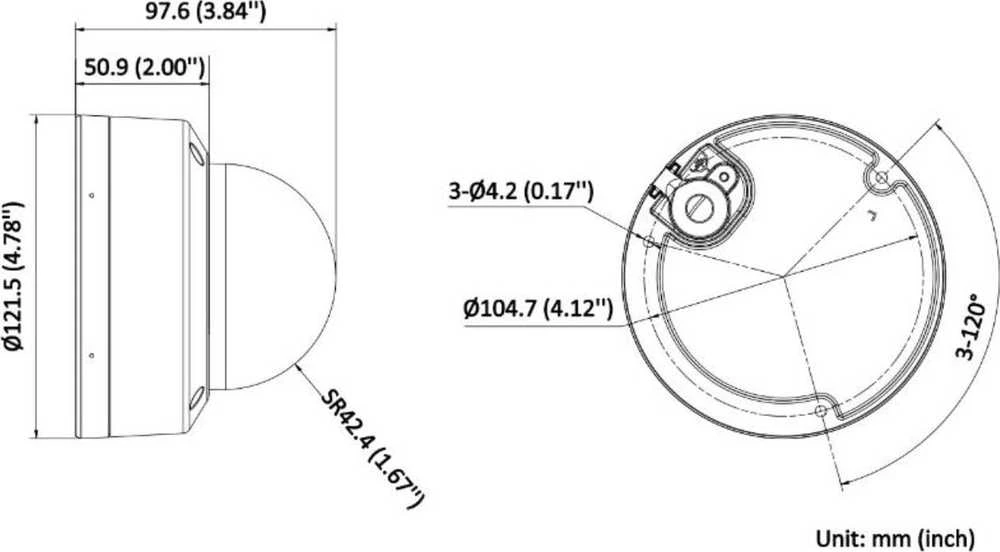

Matmenys Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Pagrindinės funkcijos Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Medžiaga Base: aluminum alloy, cover: aluminum alloy
Pakuotės dydis 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Energija 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Svoris Approx. 600 g (1.3 lb.)
Svoris su įpakavimu Approx. 830 g (1.8 lb.)

Sąsaja
Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)

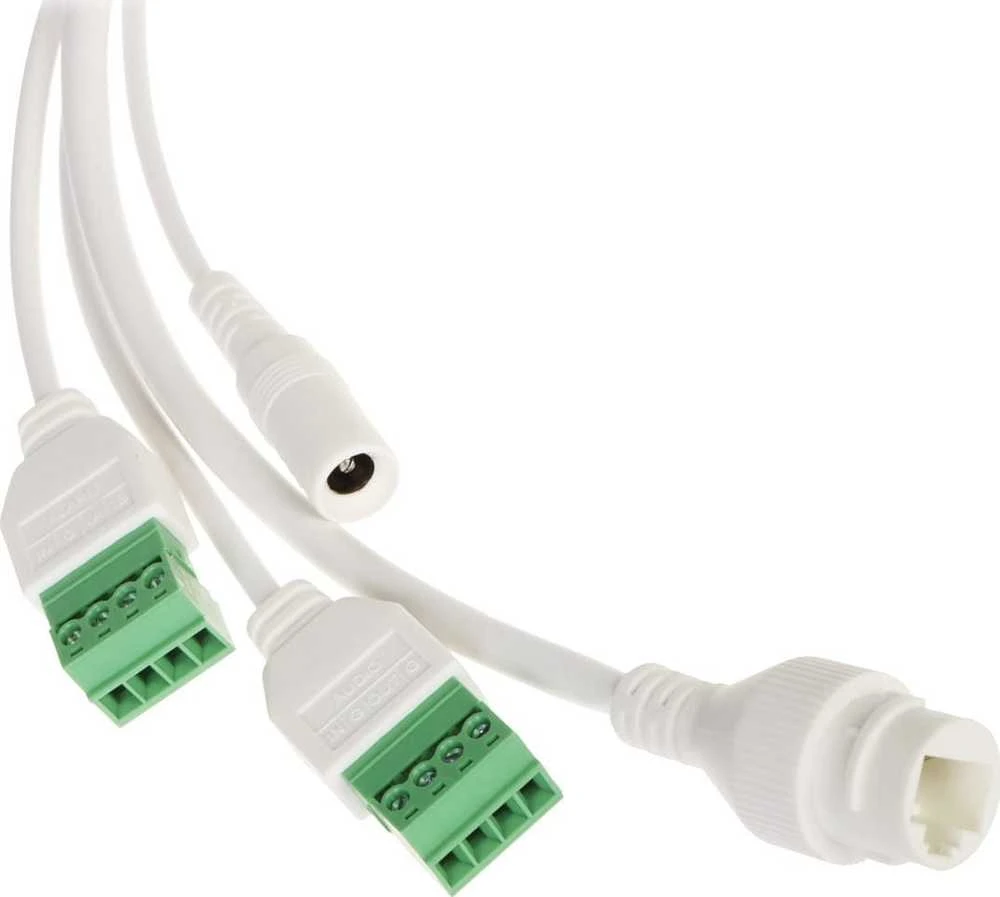

Garsas Built-in Microphone: -2U: Arrayed dual-microphone -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port

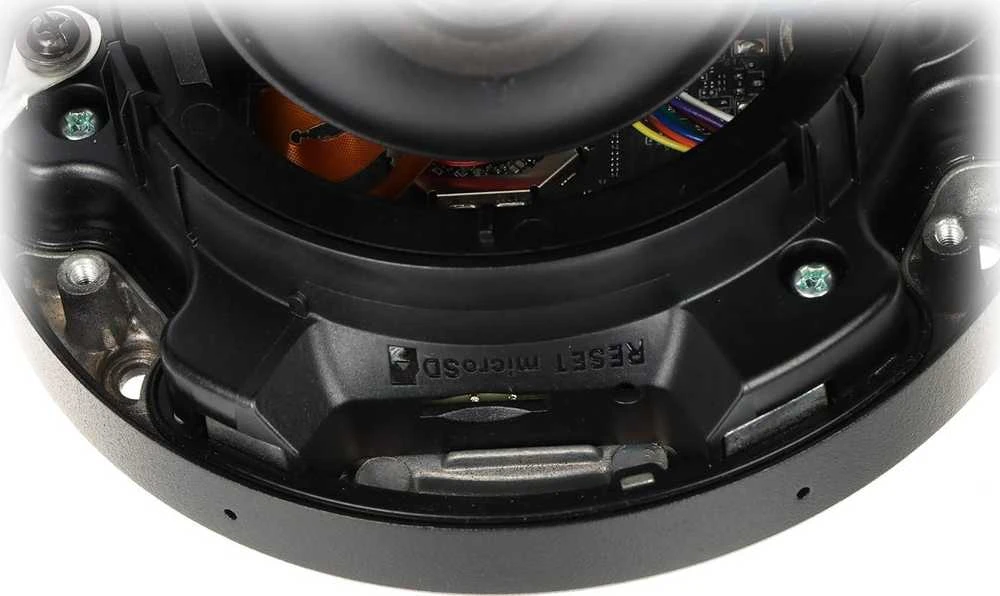

Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukas Yes

Objektyvas
Diafragma F1.6
Ryškumo gylis 2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞
Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Rainelės tipas Fixed
Lęšio montavimas M12
Objektyvo tipas Fixed focal lens, 2.8 and 4 mm optional

Tinklas
API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Klientas iVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintis NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Saugumas Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
Naudotojas/prievadas Up to 32 users 3 user levels: administrator, operator, and user
Naršyklė Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Vaizdas
Bitų dažnio valdymas CBR,VBR
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Pagrindinis srautas 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Antrinis srautas 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Tikslinis apkarpymas Yes
Trečias srautas 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Vaizdo bitų greitis 32 Kbps to 8 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
