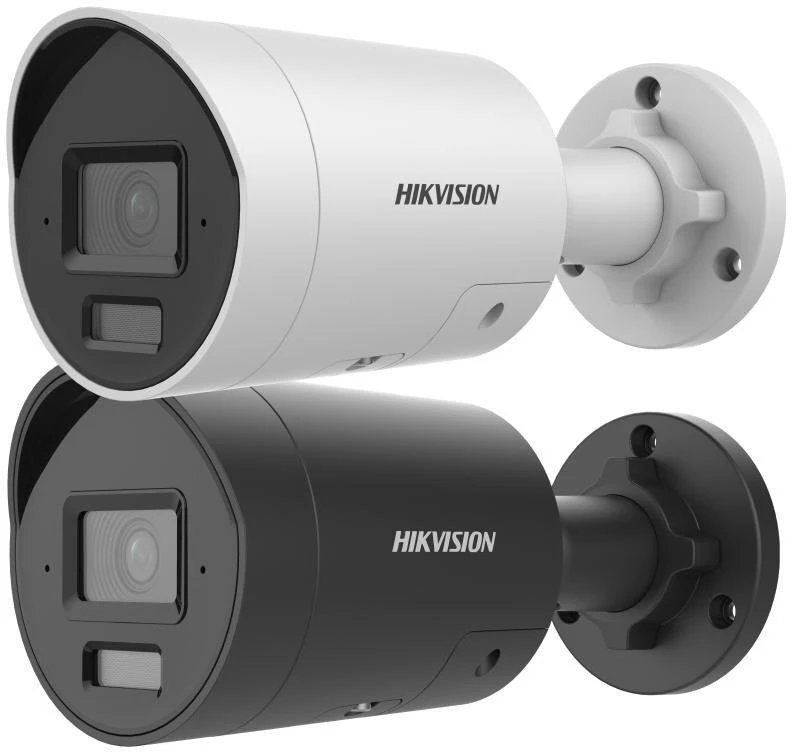

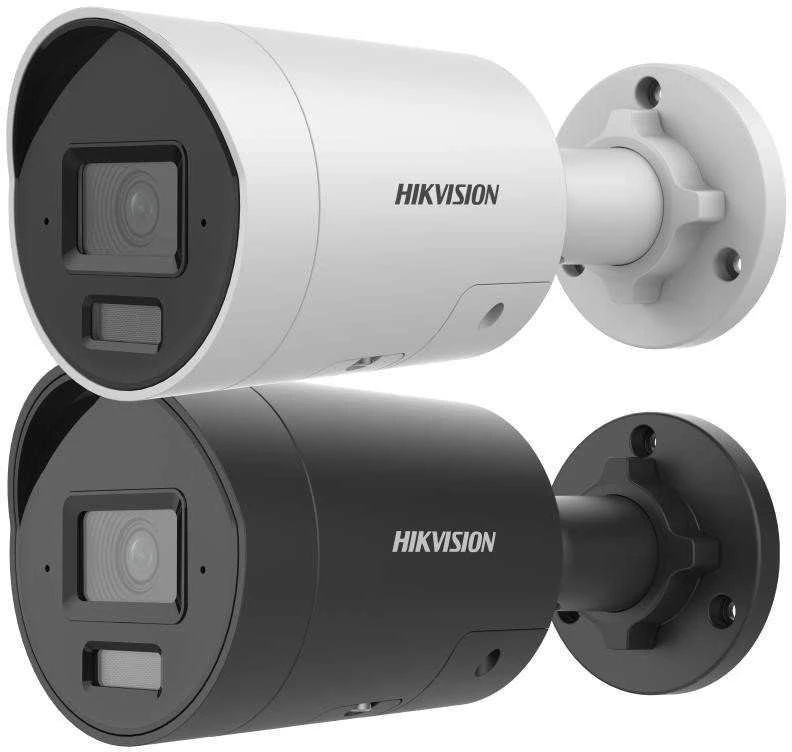

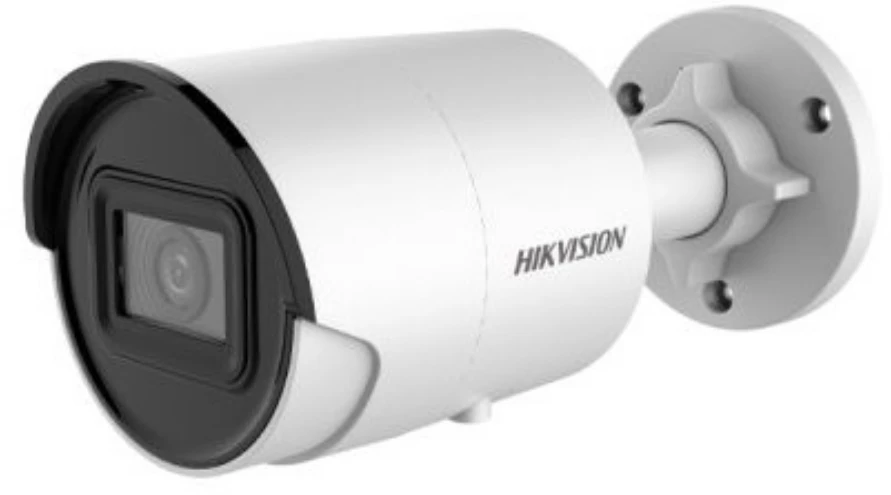

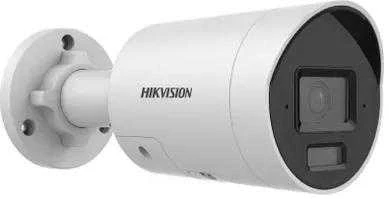

Name: „Hikvision“ kulkos formos DS-2CD2086G2H-I2U/SL F2.8 (balta, 40 m. IR, 8 MP, „AcuSense“, „DarkFighter“)
Brand: Hikvision
SKU: 44947432
Price: 259.99 EUR
Availability: InStock

Patvirtinimai
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Aplinkosauga CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Apsauga IP67: IEC 60529-2013
Saugumas UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Garso
Garso bitų greitis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/48 kHz
Garso tipas Mono sound
Pašalinių garsų šalinimas Yes

Camera
Kampo keitimas Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Diena&Naktis IR cut filter
Sensorius 1/1.8" Progressive Scan CMOS
Maks. rezoliucija 3840 × 2160
Min. apšvietimas Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
Užrakto greitis 1/3 s to 1/100,000 s

DORI
DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Išmaniosios funkcijos
Veido atpažinimas Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
Išmaniosios funkcijos Scene change detection

Pagrindinis
Dydis Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")
Flashing Light /SRB model: Red and Blue Light /SL model: White Light
Pagrindinės funkcijos Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Medžiaga Metal
Pakuotės dydis 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Maitinimas 12 VDC ± 25%, 1.25 A, max. 15 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Svoris Approx. 515 g (1.1 lb.)
Svoris su įpakavimu Approx. 845 g (1.9 lb.)

Apšvietimas
IR bangos ilgis 850 nm
Išmanus papildomas apšvietimas Yes
Papildomo apšvietimo diapazonas Up to 40 m
Papildomo apšviešimo tipas IR

Nuotrauka
Diena/Naktis režimas Day,Night,Auto,Schedule
Nuotraukų pagražinimas BLC,HLC,3D DNR,Defog
Nuotraukos parametrų keitiklis Yes
Nuotraukos nustatymai Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privatumo kaukė 4 programmable polygon privacy masks
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB

Sąsaja
Įmontuotas mikrofonas Yes, 2 built-in microphones
Įmontuotas garsiakalbis Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukas Yes

Lęšis
Diafragma F1.0
Ryškumo gylis 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 130° 4 mm, horizontal FOV 90°, vertical FOV 47°, diagonal FOV 111°
Rainelės tipas Fixed
Lęšio montavimas M16
Lęšio tipas Fixed focal lens, 2.8 and 4 mm optional

Tinklas
API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
Klientas iVMS-4200,Hik-Connect
Vidinė atmintis NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Naršyklė Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Vaizdas
Bitų greičio kontrolė CBR,VBR
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Pagrindinis srautas 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Antrinis srautas 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Vaizdo bitų greitis 32 Kbps to 16 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
