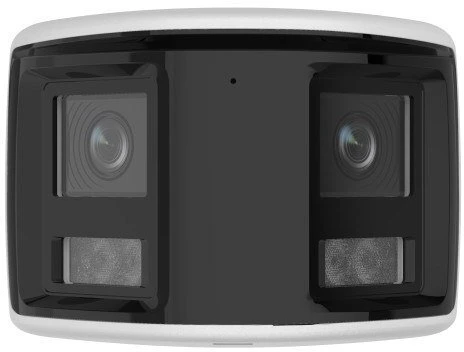

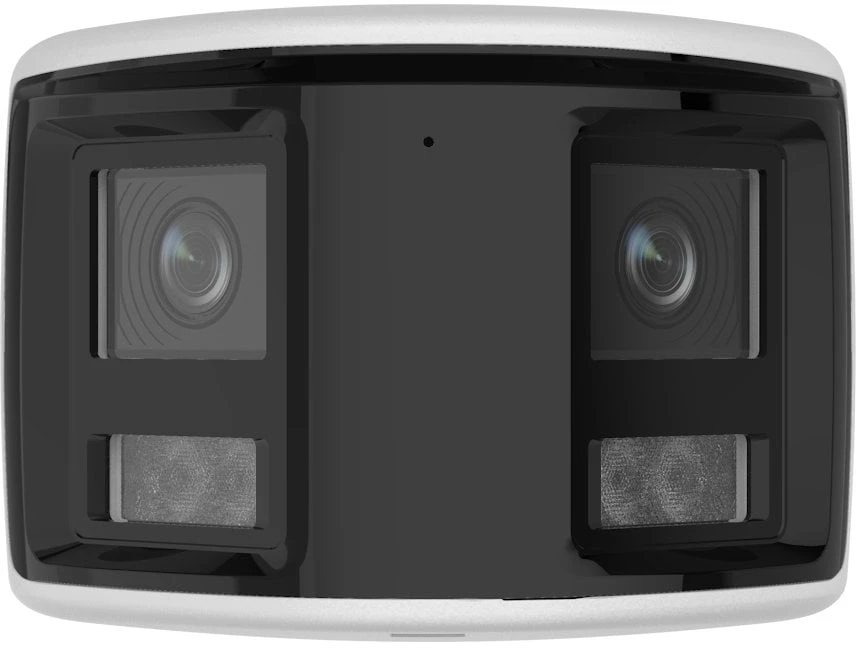

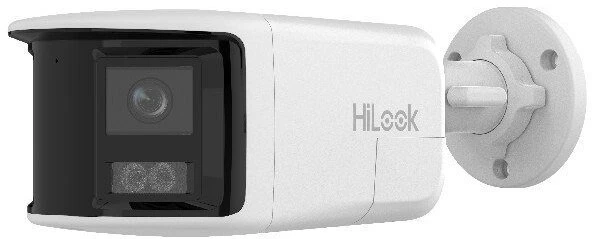

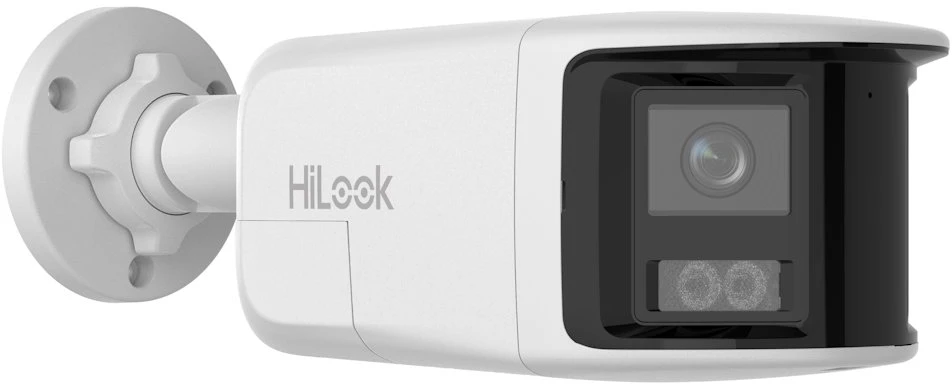

HiLook IPC-B460HAD-LUF/S(L)(RB)
Smart bullet camera with panoramic view and hybrid lighting for color night vision.
Introducing an advanced network camera with 6 Mpx resolution (3632 × 1632 px) and revolutionary 180° panoramic view, which captures the entire scene without blind spots. Smart Hybrid Light technology combines infrared and white LED lighting with a range of up to 30 meters, enabling color recordings even in complete darkness.
The camera features advanced person and vehicle detection (Motion Detection 2.0) with the option to trigger alarms only when specific targets are detected. Active deterrence combines a light siren and an audio alarm for effective intrusion prevention. Thanks to two-way audio with a built-in microphone and speaker (97 dB), you can communicate with visitors in real time.
High resolution of 6 Mpx with a 1/2.5" progressive CMOS sensor for detailed recordings
Extremely wide field of view—180° horizontally and 77° vertically—for covering large areas

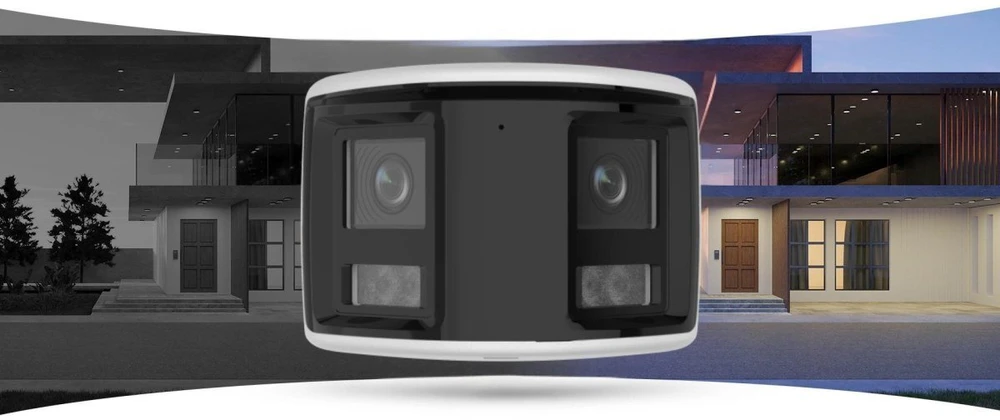

Smart Hybrid Light with IR (850 nm) and white light for color night vision up to 30 m
AI-powered person and vehicle detection with the ability to filter out false alarms
Active deterrence with a flashing light siren and audio alarm (97 dB)
Efficient H.265+ compression reducing data throughput by up to 50% compared to H.264
MicroSD/SDHC/SDXC card slot supporting up to 512 GB for local recording

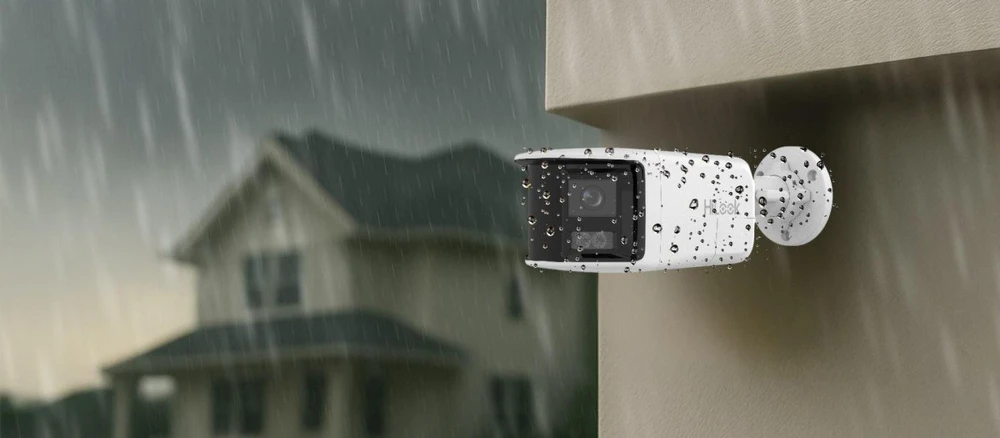

Rugged IP67-rated design for operation at temperatures ranging from -30 to +60 °C
Flexible power supply: 12 VDC or PoE (IEEE 802.3af, Class 3)
Advanced Features and Connectivity: The camera supports up to 6 simultaneous video streams with a main stream of 20 fps at full resolution. 120 dB WDR technology ensures excellent image quality even in scenes with extreme differences in lighting. ONVIF protocols (Profile S, T, G) guarantee compatibility with a wide range of NVR devices and VMS systems.
Smart Detection and Alarms: The motion detection system triggers alarms only when human figures or vehicles are detected, thereby eliminating false alarms caused by animals or moving branches. Upon detection, the camera can automatically record to an SD card, send an email, activate an audio alarm, or turn on a strobe light.
Flexible Installation: The mounting bracket allows for 0–360° pan, 0–180° tilt, and 0–360° rotation for precise camera alignment. Its compact dimensions of 103.6 × 76 × 234.5 mm and weight of just 560 g make installation easy. The recommended installation height is over 3 m, with an ideal viewing distance of 8–12 m.
BASIC SPECIFICATIONS
Sensor: 1/2.5" Progressive Scan CMOS
Resolution: 6 Mpx (3632 × 1632 px)
Lens: 2.8 mm, fixed focal length, F1.6
Field of view: 180° horizontally, 77° vertically
Min. illumination: 0.005 lux (color mode), 0 lux with illumination
Illumination range: up to 30 m (IR 850 nm + white light)
Video compression: H.265+/H.265/H.264+/H.264/MJPEG
Streaming: 20 fps at 3632 × 1632 px (main stream)
WDR: 120 dB
Audio: two-way, built-in microphone and speaker (97 dB)
Memory card: microSD/SDHC/SDXC up to 512 GB
Network: RJ45 10/100 Mbps, ONVIF (Profile S, T, G)
Power supply: 12 VDC ± 25% (max. 10 W) or PoE IEEE 802.3af (max. 11.5 W)
Protection rating: IP67
Operating temperature: -30 to +60 °C
Dimensions: 103.6 × 76 × 234.5 mm
Weight: 560 g
Variants: /SL (white light), /SRB (red-blue light)
Compatible accessories: DS-1280ZJ-XS (Junction box) - mounting box; DS-2280ZJ (Wall mount) - wall mount
