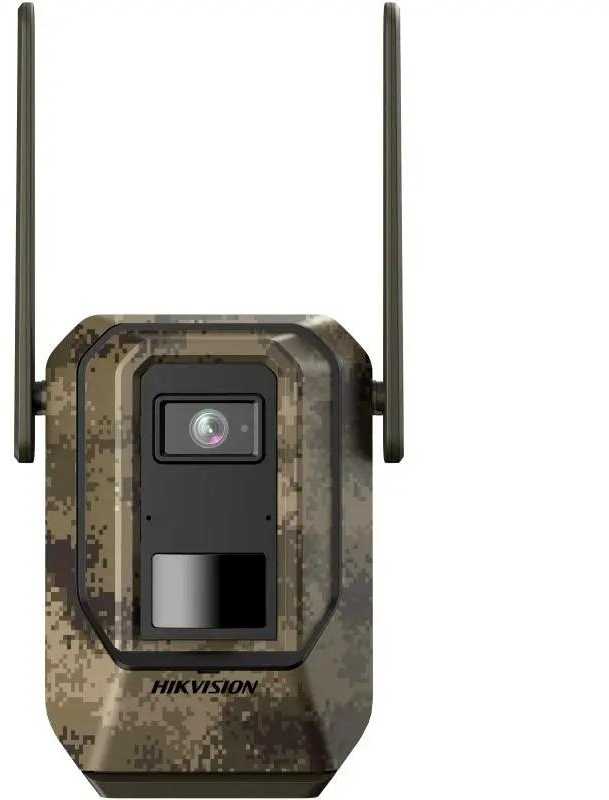

Hikvision DS-2XS6F45G0-IC0 / 4G(2.8mm), žema kaina

Kamera
Sensorius 1/3" Progressive Scan CMOS
Maks. rezoliucija 2688 × 1520
Min. apšvietimas Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Užrakto greitis 1 s to 1/100,000 s
Day & Night IR cut filter

Lęšis
Focal Length & FOV 2.8 mm, horizontal FOV 102°, vertical FOV 55°, diagonal FOV 122°
Diafragama F1.4
Lęšio montavimas M12

Vaizdas
Pagrindinis srautas
50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 12.5 fps (640 × 480, 640 × 360)

60 Hz: 15 fps (640 × 480, 640 × 360)
Trečias srautas
50 Hz: 1 fps (1280 × 720, 640 × 480)

60 Hz: 1 fps (1280 × 720, 640 × 480)
Vaizdo suspaudimas
Main stream: H.265,

Sub-stream: H.265, H.264, MJPEG,

Third stream: H.265, H.264
Vaizdo bitų greitis 32 Kbps to 8 Mbps
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Bitų greičio kontrolė CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed region(s) for main stream

Garsas
Pašalinių garsų šalinimas Yes
Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso tipas Mono sound

Internetas
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, UDP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas iVMS-4200,Hik-Connect
Naršyklė
Plug-in required live view: IE10, IE11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+, Safari12+

Nuotrauka
Diena/Naktis režimas Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
Nuotraukos perdanga LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Nuotraukų pagražinimas BLC,HLC,defog,3D DNR
Nuotraukos parametrų keitiklis Yes
Nuotraukos nustatymai Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
SNR ≥ 52 dB
Privatumo kaukė Yes

Satellite Positioning
Satellite Positioning Detection Support GPS and searching longitude and latitude of the device

Sąsaja
Įmontuotas mikrofonas 1 built-in microphone(s)
Vidinė atmintis

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Interneto sąsaja 1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
Perkrovimo mygtukas
Yes,

Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.

Funkcijos
Pagrindinės funckcijos Motion detection,video tampering alarm,exception
Išmaniosios funkcijos
Line crossing detection, intrusion detection, region entrance detection, region exiting detection,

Face detection
Sąsaja
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,

send message

Pagrindinis
Sistemos parametrai 6 to 15 VDC, 0.82 to 0.33 A, max. 4.9 W, C0: shrapnel, dry cell (10, 5AA dry cell, 1.5 V)
Pagrindinės funkcijos Heartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
Medžiaga Plastic
Dydis

With /4G model: with antennas folded: 171.5 mm × 139.7 mm × 86.9 mm (6.8 × 5.5\" × 3.4\"), with antennas extending: 283.4 mm × 139.7 mm × 86.9 mm (11.2\" × 5.5\" × 3.4\"); Without /4G model: 171.5 mm × 117.3 mm × 86.9 mm (6.8\" × 4.6\" × 3.4\")"
Pakuotės dydis 260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")
Svoris

Approx. 0.61 kg (1.2 lb.)
Svoris su įpakavimu

C0: approx. 1.34 kg (3.0 lb.), C1: approx. 2.47 kg (5.4 lb.), C2: approx. 2.82 kg (6.2 lb.)
Sandėliavimo sąlygos -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos
C1/C2: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing),

C0: -10 °C to 60 °C (-14 °F to 140 °F). Humidity 95% or less (non-condensing)

Baterija
Baterijos tipas C1/C2: chargeable lithium battery, C0: 5AA dry cell
Battery Voltage
C1/C2:

Rated voltage: 7.2 VDC

Charging voltage: 8.4 VDC

Discharging cut-off voltage: 5.6 VDC

C0:

Rated voltage: 15 VDC

Discharging cut-off voltage: 8 VDC
Talpa C1/C2: 9.4 Ah
Darbo sąlygos drėgmė
C1/C2: -20 °C to 60°C (-4 °F to 140 °F)

C0: -10 °C to 60 °C (-14 °F to 140 °F)
Cycle Lifetime
Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night) with the ambient temperature at 25 °C.

With /4G model:

C1/C: 125 days

C0: 30 days

Without /4G model:

C1/C2: 210 days

C0: 51 days

For C1 and C2 models, make sure the battery is fully charged before using the device.
