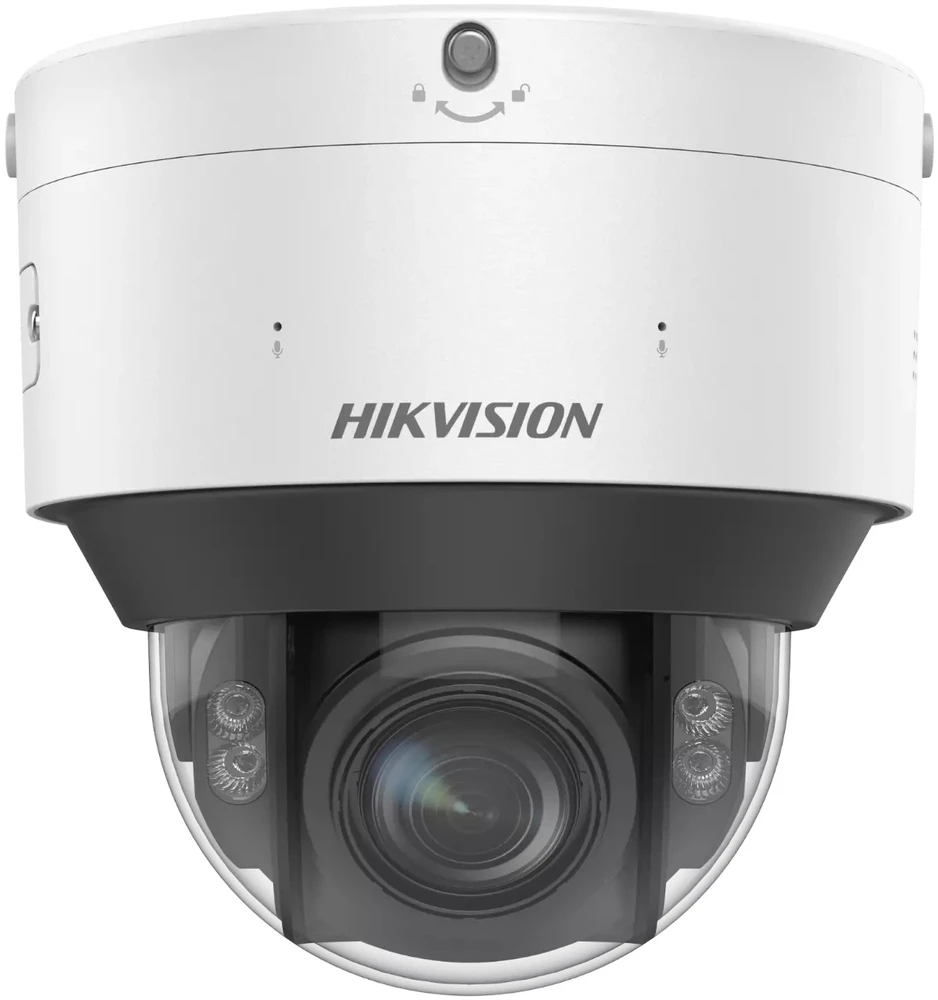

Hikvision dome iDS-2CD7547G0 / P-XZHS F2.8-12, žema kaina

Kamera
Sensorius 1/1.8" Progressive Scan CMOS
Maks. rezoliucija 2688 × 1520
Min. apšvietimas Color: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
Užrakto greitis 1 s to 1/100,000 s
Day & Night
IR cut filter

Blue glass module to reduce ghost phenomenon
Kampo keitimas Pan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355°

Lęšis
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°
Fokusavimas Auto, semi-auto, manual
Rainelės tipas P-iris
Diafragama F1.0 to F1.2

DORI
DORI
Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m

Tele: D: 140.7 m, O: 55.8 m, R: 28.1 m, I: 14.1 m

Vaizdas
Pagrindinis srautas
50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Trečias srautas
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Ketvirtas srautas
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Penktasis srautas
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG
Vaizdo bitų greitis 32 Kbps to 8 Mbps
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Bitų greičio kontrolė CBR,VBR
Tikslinis apkarpymas Yes
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed region(s) for each stream

Garsas
Garso bitų greitis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Garso tipas Mono sound
Pašalinių garsų šalinimas Yes

Internetas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimas Up to 20 channels
API ONVIF, ISAPI, SDK, ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas iVMS-4200, Hik-Connect
Naršyklė
Plug-in required live view: IE 10, IE11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklis Yes
Nuotraukos nustatymai Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Diena/Naktis režimas Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
Wide Dynamic Range (WDR) 140 dB
Privatumo kaukė 8 programmable polygon privacy masks, mask color or mosaic configurable
SNR ≥ 52 dB
Nuotraukų pagražinimas BLC,HLC,3D DNR,Defog, EIS
Nuotraukos perdanga LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Sąsaja
Vaizdo išvestis 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Interneto sąsaja 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Garsas
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Įmontuotas mikrofonas Yes, 2 built-in microphones
Signalizacija 1 input, 1 output (max. 24 VDC, 1 A)
Įmontuotas garsiakalbis Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
RS-485 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukas Yes
Galia 12 VDC, max. 100 mA
Wiegand 1 Wiegand (CardID 26bit,SHA-1 26bit,Hik 34bit, NEWG 72 bit)

Funkcijos
Pagrindinės funckcijos Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
Išmaniosios funkcijos Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
Sąsaja Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Išmaniosios funkcijos
Meta duomenys Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
Kelių eismo ir transporto priemonių aptikimas

Blocklist and allowlist: up to 10000 records

Support license plate recognition of motorcycles (only in checkpoint scenario)

Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

License plate recognition rate ≥98%

Pagrindinis
Sistemos parametrai
12 VDC ± 20%, 2.01 A, max. 24.01 W, three-core terminal block;

24 VAC ± 20%, 1.51 A, max. 24.01 W, three-core terminal block;

PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.60 A to 0.44 A, max. 25.43 W
Medžiaga Aluminum alloy body
Dydis Ø160 × 159.5 mm (Ø6.3" × 6.3")
Pakuotės dydis 251 × 215 × 189 mm (9.9" × 8.5" × 7.4")
Svoris Approx. 2100 g (4.62 lb.)
Svoris su įpakavimu Approx. 2850 g (6.28 lb.)
Darbo sąlygos -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos Heartbeat,anti-banding,one-key reset,mirror,password protection,privacy mask, watermark, IP address filter, flash log, control timeout
Šildytuvas Yes
Rasos šalinimas Yes
