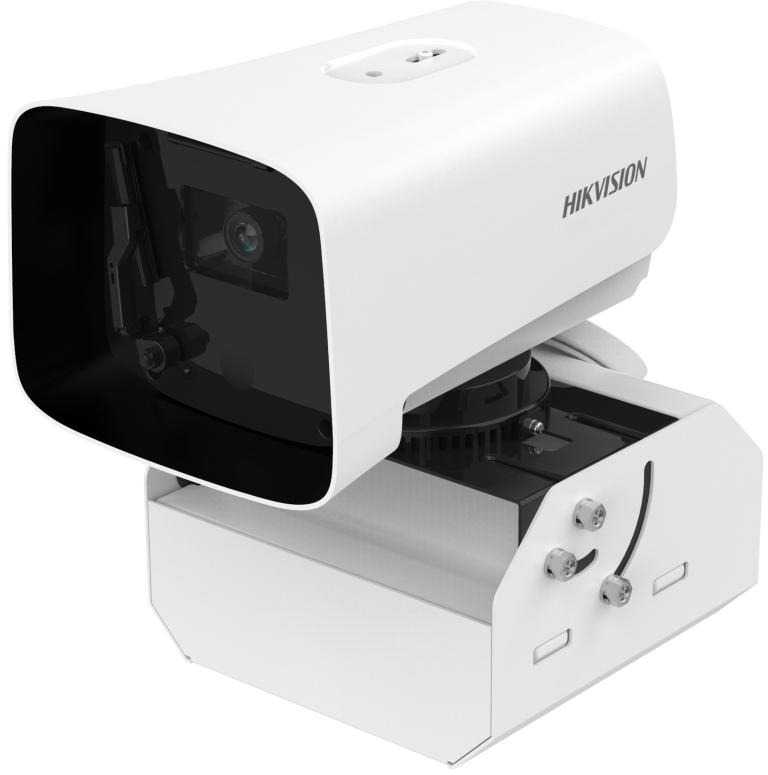

IP kamera Hikvision automatiškai nusivalanti kamera iDS-2CD8A47G0 / SC-ZY F2.8-12 (balta, 4MP, ColorVu), žema kaina

Tipas: IP kamera
Modelis: iDS-2CD8A47G0/SC-ZY
Serija: DeepinView
Funkcijos: Automatinis valymas, ColorVu
Korpusas: BULLET
Prekės ženklas: Hikvision
Objektyvas: 2.8-12mm (76.5°-53°)
Kompresija: H.265+
Rezoliucija: 4MP
Funkcionalumas: ANPR, perimetro apsauga
Dinamika: 140 dB
Integruota talpa: 2 litrai (priežiūra nereikalinga iki 2 metų, valant kartą per savaitę)
Integruotas šildytuvas: Aiškus vaizdas lietingu ar snieguotu oru
Atsparumas: IP67 (vandeniui ir dulkėms), NEMA 4X (apsauga nuo korozijos)

Kamera
Sensorius	1/1.8" Progressive Scan CMOS
Maks. rezoliucija	2560 × 1440
Min. apšvietimas	2.8 to 12 mm: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; 8 to 32 mm: Color: 0.002 Lux @ (F1.7, AGC ON), 0 Lux with light
Užrakto greitis	1 s to 1/100,000 s
Day & Night	Blue glass module (less ghost phenomenon)

Lęšis
Focal Length & FOV	2.8 to 12 mm, horizontal FOV 76.5° to 53°, vertical FOV 40.4° to 30°, diagonal FOV 89° to 61.8°;8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°;
Fokusavimas	Auto,Semi-auto,Manual
Rainelės tipas	DC iris
Diafragama	2.8 to 12 mm: F1.0; 8 to 32 mm: F1.7

Vaizdas
Pagrindinis srautas	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas	50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Trečias srautas	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Ketvirtas srautas	50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Penktasis srautas	50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
Vaizdo suspaudimas	Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
Vaizdo bitų greitis	32 Kbps to 8 Mbps
H.264 tipas	Baseline Profile,Main Profile,High Profile
H.265 tipas	Main Profile
Bitų greičio kontrolė	CBR,VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Tikslinis apkarpymas	Yes
Region of Interest (ROI)	4 fixed regions for each stream

Internetas
Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host	Up to 32 users3 user levels: administrator, operator, and user
Saugumas	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Vidinė atmintis	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas	iVMS-4200,Hik-Connect
Naršyklė	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Nuotrauka
Nuotraukos parametrų keitiklis	Yes
Nuotraukos nustatymai	Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Diena/Naktis režimas	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	140 dB
Nuotraukų pagražinimas	BLC,HLC,3D DNR,Distortion Correction,Defog
Privatumo kaukė	8 programmable polygon privacy masks
Nuotraukos perdanga	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Vaizdo stabilizavimas	EIS

Sąsaja
Interneto sąsaja	1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Perkrovimo mygtukas	Yes

Funkcijos
Pagrindinės funckcijos	Motion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error)
Išmaniosios funkcijos	scene change detection,audio exception detection,defocus detection
Sąsaja	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Išmaniosios funkcijos
Multi-target-type Detection	Supports simultaneous detection and capture of human body, face and vehicle,Gets 7 face features,Gets 13 human body features,Gets 2 vehicle features
Veido atpažinimas	Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,Uploads face with background and closed-up face pictures
Perimeter Protection	Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
Meta duomenys	Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
Kelių eismo ir transporto priemonių aptikimas	Blocklist and allowlist: up to 10,000 recordsSupport license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)License plate recognition rate ≥98%
Tunnel Event Detection	Fallen object detection, pedestrian detection, parking detection, congestion detection, construction detection

Pagrindinis
Sistemos parametrai	12 VDC ± 20%, 1.55 A, max. 18.6 W,three-core terminal block,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.39 A, max. 22.5 W
Medžiaga	Aluminum and plastic
Dydis	337.3 mm × 193.2 mm × 261.5 mm (13.28" × 7.61" × 10.29")
Pakuotės dydis	350 mm × 270 mm × 355 mm (13.78" × 10.63" × 13.98")
Svoris	Approx. 2990 g (6.60 lb.)
Svoris su įpakavimu	Approx. 4737 g (10.45 lb.)
Sandėliavimo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Heartbeat,anti-banding,one-key reset,mirror,password protection
Rasos šalinimas	Yes

Patvirtinimai
EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Saugumas	CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1
Aplinkosauga	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Apsauga	IP67: IEC 60529-2013
Apsauga nuo korozijos	-Y: NEMA 4X (NEMA 250-2018)
Kita	PVC FREE
