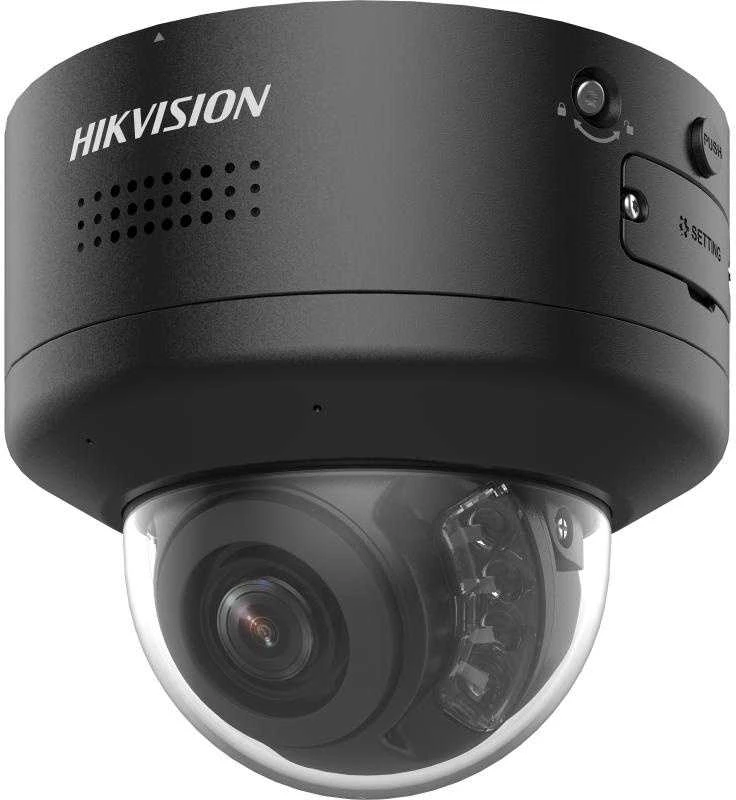

Hikvision dome DS-2CD2747G2H-LIPTRZS2U/SL F2.8-12 (Juoda, 4 MP, 40 m. IR, ColorVu)

Remote adjustment (Max. 1000 cycles)

Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 m

Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m

50 Hz:

25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz:

25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz:

30 fps (1280 × 720, 640 × 480, 640 × 360)

50 Hz:

10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz:

10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.

Up to 32 users

3 user levels: administrator, operator, and user

Plug-in required live view: IE 11,

Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block,

PoE: IEEE 802.3at, Class 4, max. 18 W

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

LOA: IEC/EN 60950-1

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
