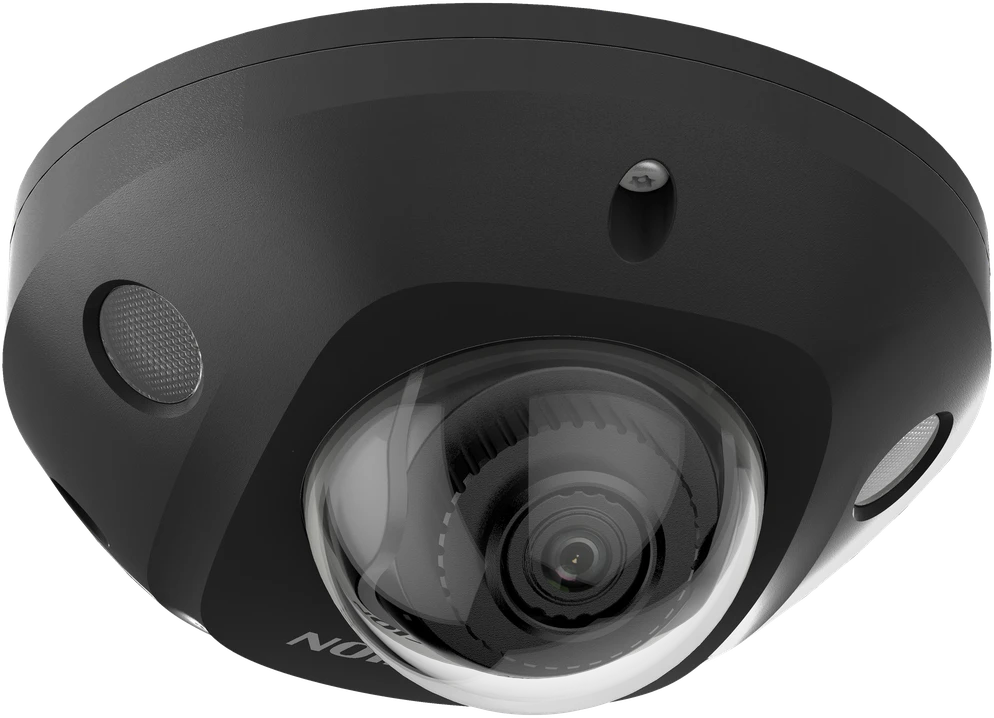

Hikvision dome DS-2CD2543G2-IWS F2.8 (balta, 4 MP, 30 m. IR; 30 m. LED, AcuSense)

2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°

4 mm, horizontal FOV 83.7°, vertical FOV 43.0°, diagonal FOV 100.3°

2.8 mm: 1.4 m to ∞

4 mm: 1.6 m to ∞

2.8 mm

D: 64 m

O: 25 m

R: 13 m

I: 6 m

4 mm:

D: 85 m

O: 34 m

R: 17 m

I: 9 m

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

-W:

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM

-W:

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM

-W:

802.11b: 11 Mbps

802.11g: 54 Mbps

802.11n: up to 300 Mbps

-IS/IWS:

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

-IS/IWS:

1 input, 1 output (max. 12 VDC, 20 mA)

Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

Face detection

-IS:

12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W

-IWS:

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W

-W:

FCC ID (FCC Part 15.247(BT or 2.4G));

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))

FCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015)

IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)

UL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)

CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)

IP67 (IEC 60529-2013)

IK8 (IEC 62262:2002)
