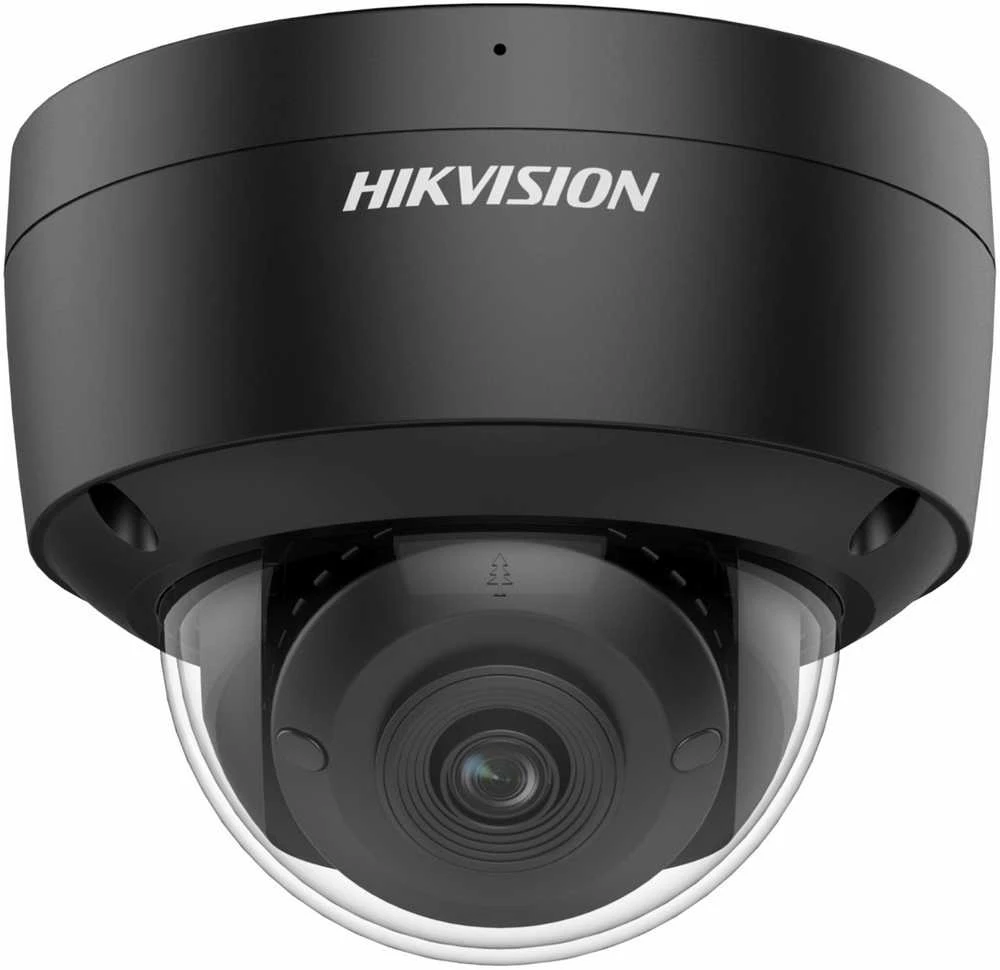

Hikvision dome DS-2CD2147G2-SU F2.8 (juoda, 4 MP, ColorVu), žema kaina

Dėmesio! Ar prekė turi maitinimo šaltinį (power supply) teiraukitės pas vadybininką

Lęšiai
Lęšių tipas Fixed focal lens, 2.8 and 4 mm optional
Židinio nuotolis & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
Lęšių montavimas M16
Iris tipas Fixed
Diafragma F1.0

DORI
DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Vaizdas
Pagrindinis sraugas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Pagalbinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Tretinis srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Vaizdo bitų greitis 32 Kbps to 8 Mbps
H.264 tipas Baseline Profile/Main Profile/High Profile
H.265 tipas Main Profile
Bitų dažnio kontrolė CBR/VBR
SVC H.264 and H.265 encoding
ROI 1 fixed region for main stream and sub-stream

Garsas
Garso suspaudimas -SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Garso bitų greitis -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Garso pavyzdžių ėmimo greitis -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Aplinkos triukšmo filtravimas -SU: Yes

Tinklas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Naudotojas/transliuotojas Up to 32 users. 3 user levels: administrator, operator and user
Saugumas Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Tinklo saugykla
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas iVMS-4200, Hik-Connect, Hik-Central
Internetinė naršyklė
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Nuotraukos
Nuotraukų nustatymų keitimas Yes
Nuotraukų nustatymai Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Platus dinaminis nuotolis (WDR) 130 dB
SNR ≥ 52 dB
Nuotraukų gerinimas BLC, HLC, 3D DNR

Sąsajos
Eterneto sąsajos 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinės sąsajos Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
Įmontuotas mikrofonas -SU: Yes
Garsas
-SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Įspėjamasis signalas -SU: 1 input, 1 output (max. 12 VDC, 30 mA)
Atkūrimo mygtukas Yes

Įvykiai
Paprasti įvykiai Motion detection (human and vehicle targets classification), video tampering alarm, exception
Išmanūs įvykiai
Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Scene change detection
Sujungimas
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

-SU: audible warning

Pagrindinis
Galia
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
Matmenys Ø121.4 mm × 100.1 mm (Ø4.8" × 3.9")
Pakuotės matmenys 150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6")
Svoris Approx. 580 g (1.2 lb.)
Svoris su pakuote Approx. 820 g (1.6 lb.)
Laikymo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Paleidimo ir veikimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Patvirtinimai
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2016)
Saugumas
UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Aplinkos apsauga CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Apsauga IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
