Name: Hikvision dome DS-2CD2146G2H-ISU F2.8 (balta, 4 MP, 30 m. IR, AcuSense)
Brand: Hikvision
SKU: 56911324
Price: 179.99 EUR
Availability: InStock

Dėmesio! Ar prekė turi maitinimo šaltinį (power supply) teiraukitės pas vadybininką

Kamera
Sensorius 1/3" Progressive Scan CMOS
Maks. rezoliucija 2688 × 1520
Min. apšvietimas Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Užrakto greitis 1/3 s to 1/100,000 s
Day & Night IR cut filter
Kampo keitimas Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lęšis
Lęšio tipas Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°

4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lęšio montavimas M12
Rainelės tipas Fixed
Diafragama F1.0
Ryškumo gylis
2.8 mm: 1.9 m to ∞

4 mm: 2.5 m to ∞

DORI
DORI
2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m

4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m

Apšvietimas
Papildomo apšviešimo tipas IR
Papildomo apšvietimo diapazonas Up to 30 m
Išmanus papildomas apšvietimas Yes
IR bangos ilgis 850 nm

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Vaizdo bitų greitis 32 Kbps to 8 Mbps
H.264 tipas Baseline Profile/Main Profile/High Profile
H.265 tipas Main Profile
Bitų greičio kontrolė CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Garsas
Garso suspaudimas -SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas -SU: Yes

Internetas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Saugumas Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Vidinė atmintis
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas iVMS-4200, Hik-Connect, Hik-Central
Naršyklė
Plug-in required live view: IE 10, IE 11

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Nuotrauka
Nuotraukos parametrų keitiklis Yes
Nuotraukos nustatymai Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Diena/Naktis režimas Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Nuotraukų pagražinimas BLC, HLC, 3D DNR
Privatumo kaukė 4 programmable polygon privacy masks

Sąsaja
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Įmontuotas mikrofonas -SU: Yes
Garsas
-SU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

-SU: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija -SU: 1 input, 1 output (max. 12 VDC, 30 mA)
Perkrovimo mygtukas Yes

Funkcijos
Pagrindinės funckcijos Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Išmaniosios funkcijos Scene change detection
Sąsaja Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Išmaniosios funkcijos
Veido atpažinimas Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 8.5 W
Medžiaga

Cover: aluminum alloy, main body: aluminum alloy

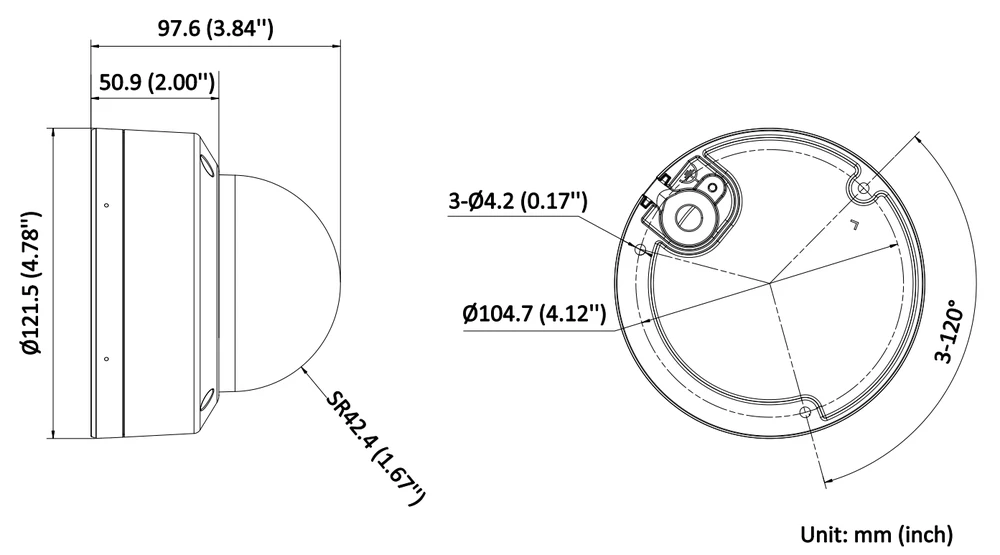

Dydis Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")
Pakuotės dydis 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Svoris Approx. 550 g (1.2 lb.)
Svoris su įpakavimu Approx. 800 g (1.8 lb.)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Patvirtinimai
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Saugumas
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017
Aplinkosauga CE-RoHS: 2011/65/EU
Apsauga IP67: IEC 60529-2013,IK10: IEC 62262:2002
