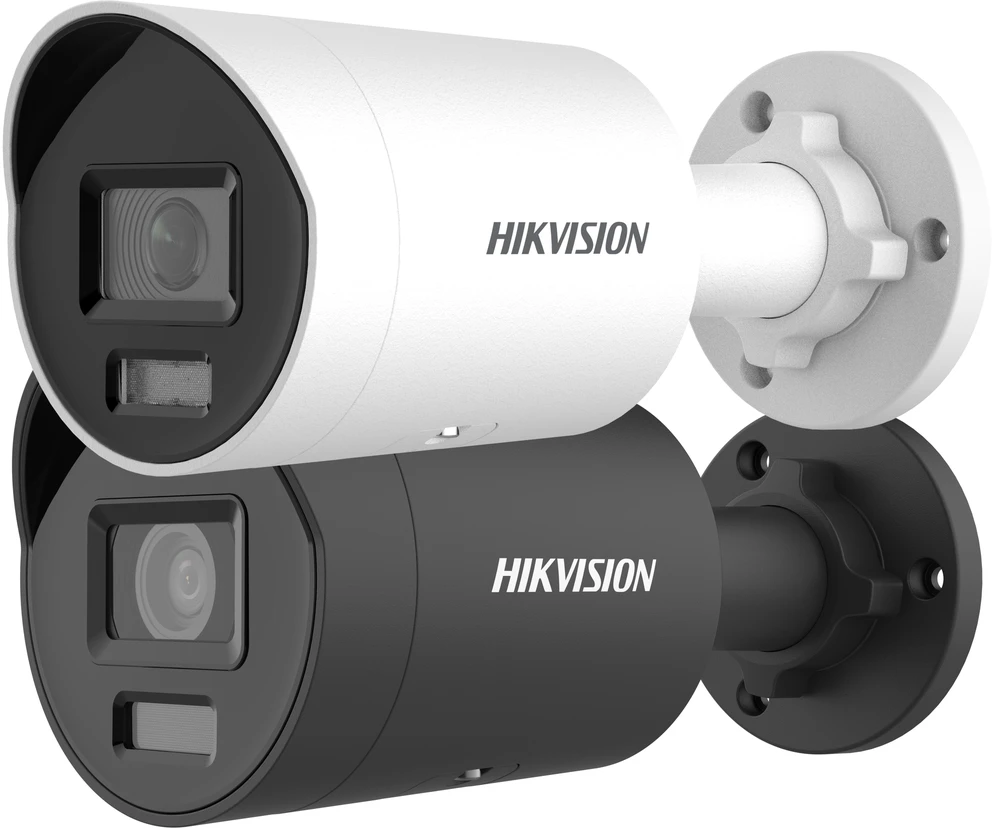

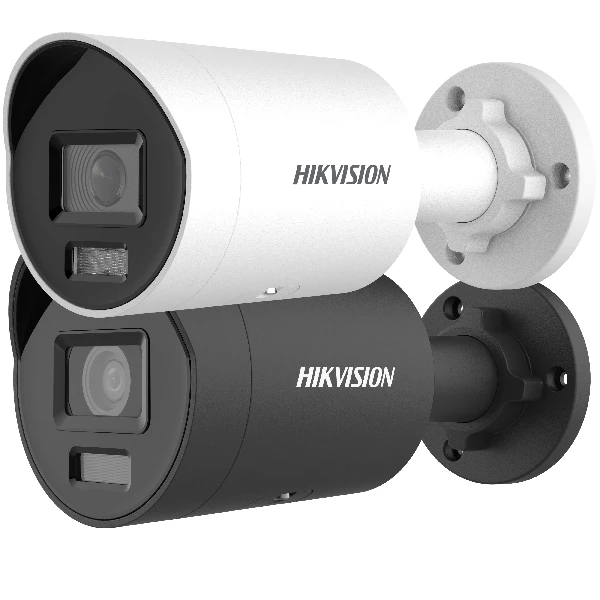

Hikvision bullet DS-2CD2066G2H-IU F4 (balta, 6 MP, 40 m. IR, AcuSense)

2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5°

4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112°

2.8 mm: 1.7 m to ∞

4 mm: 2.2 m to ∞

2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m

4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m

50 Hz:

25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3200 × 1800)

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.

Up to 32 users

3 user levels: administrator, operator, and user

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

12 VDC ± 25%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 8.5 W

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

LOA: IEC/EN 60950-1

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
