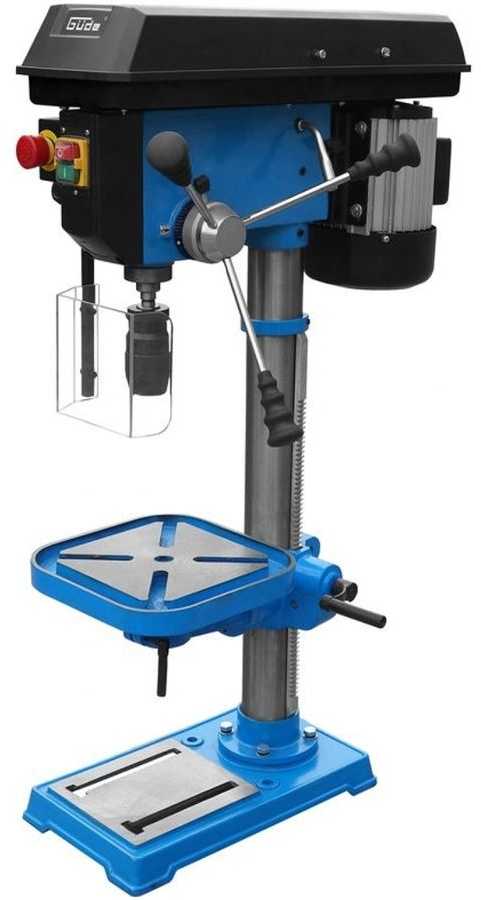

Güde GTB 20/812 (55206)

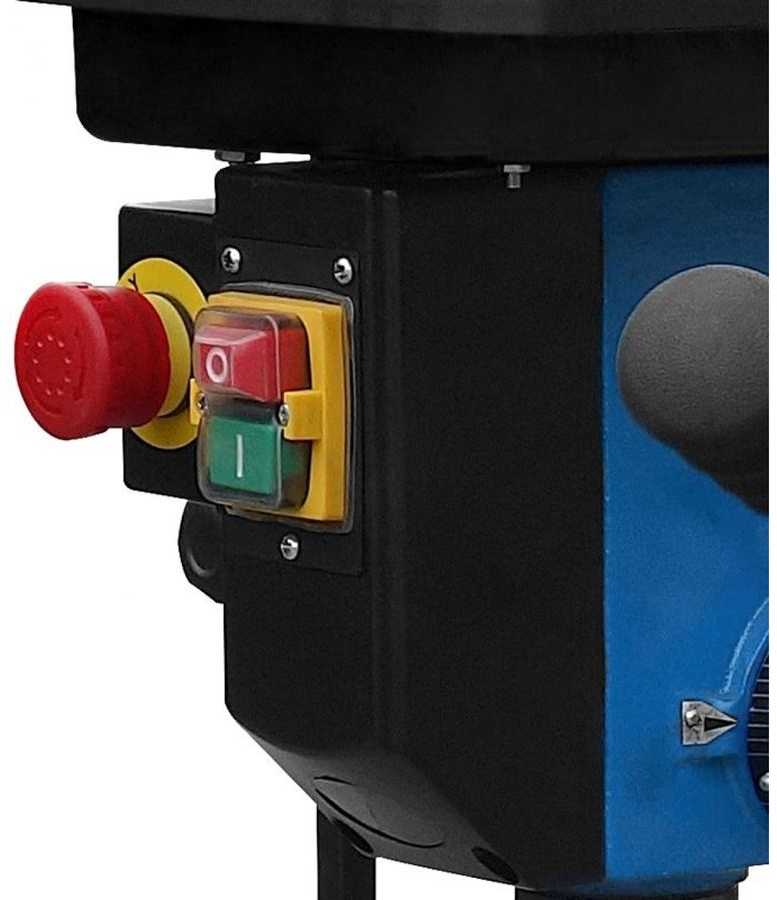

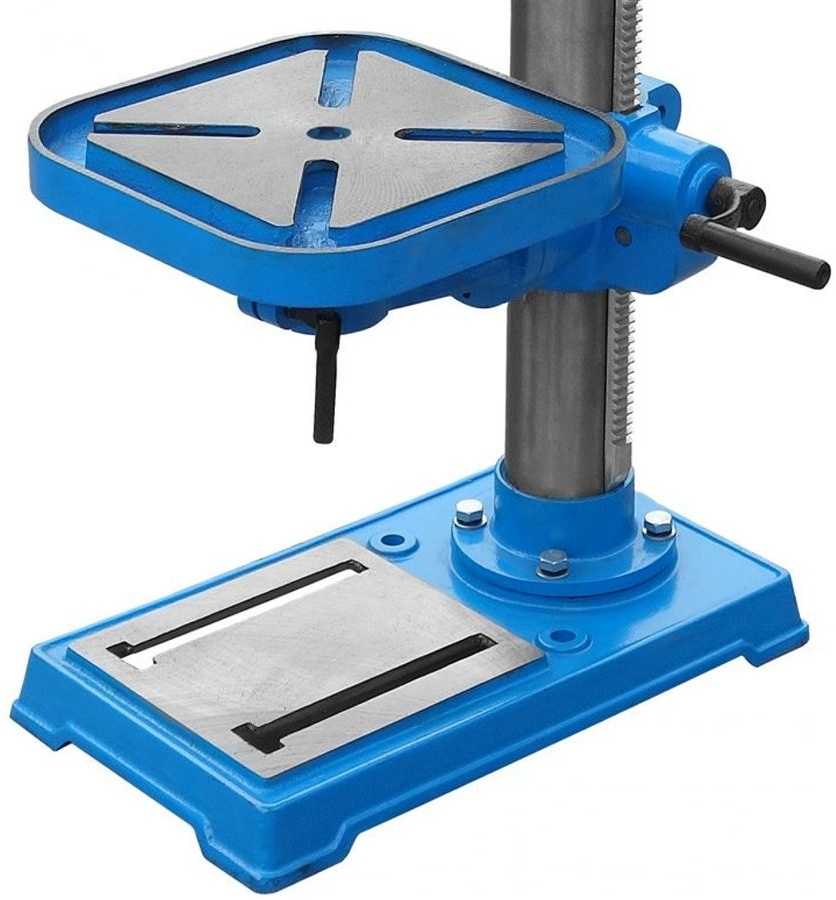

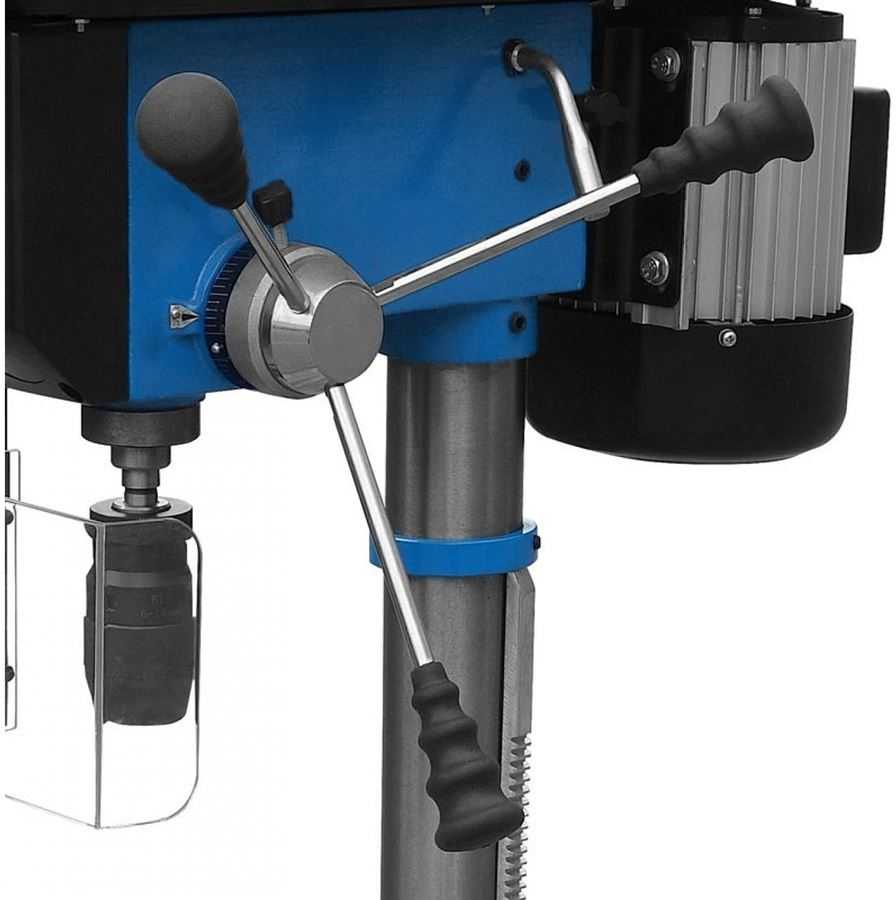

The drill has 12 spindle speeds (-> 210 - 2,500 rpm; manual speed change via pulleys), quick-release chuck for tools and drill bits with diameters of 3 - 16 mm Drilling depth adjustment (1 - 80 mm; for larger workpiece series), tilting work table (drilling at angles; range: ± 45°). 800 W/P1 motor (230 V~50 Hz, 1,400 rpm, type of operation: S2/15 min.; with aluminium casing for optimum heat dissipation), main/null switch, 2 m connection cable H05 VV-F. Construction: steel pulleys (3), spindle with tapered shank/precision ball bearings, tapered shank MK2, solid drill table (L x W: 260 x 260 mm; with transverse grooves for vise mounting), cast iron stand plate (L x W: 240 x 410 mm, incl. bores for stationary anchoring of the drill). Overall dimensions (l x w x h): 650 x 340 x 1,010 mm, sound power level LWA: 71 dB (A), electrical protection class: IP 20. Recommended accessories: GÜDE machine vises 100 mm (38319), 125 mm (38320), 150 mm (38321); T-nut (38308), 8-piece HSS drill set (38327).
