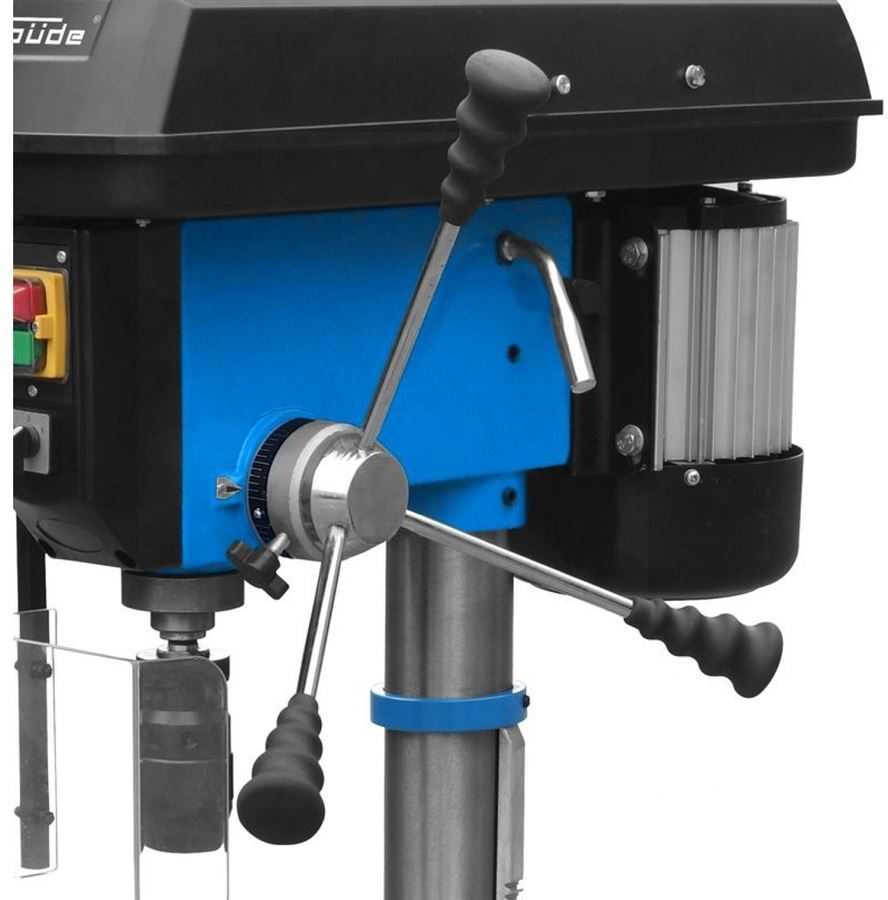

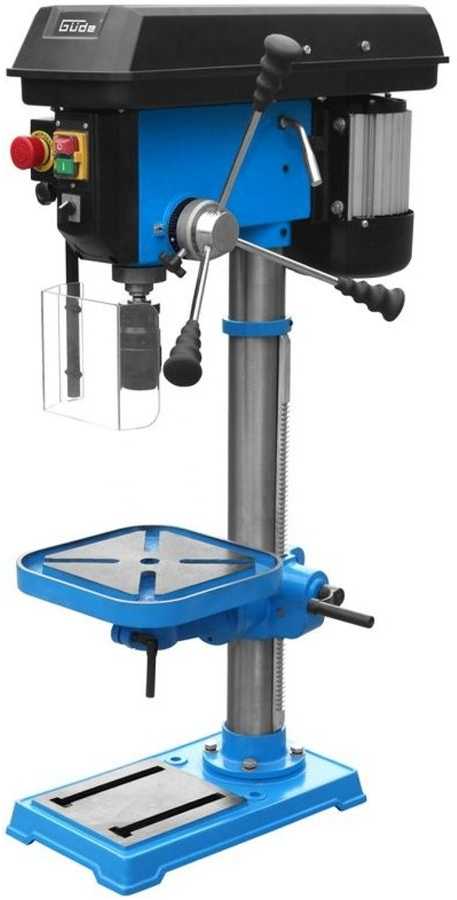

Güde Bench Drill GTB 20/812 R+L

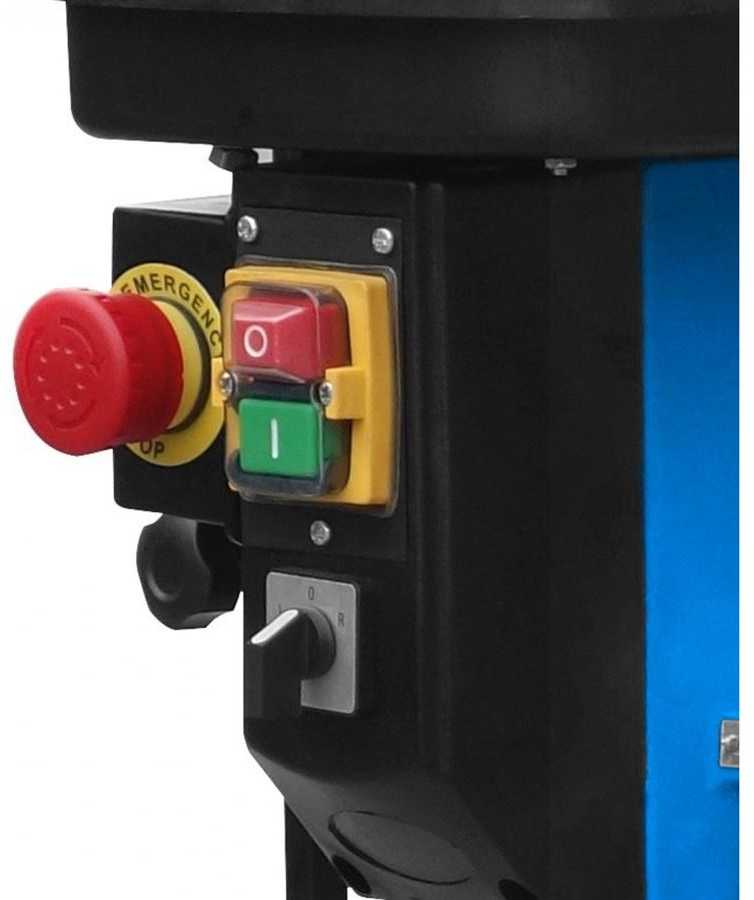

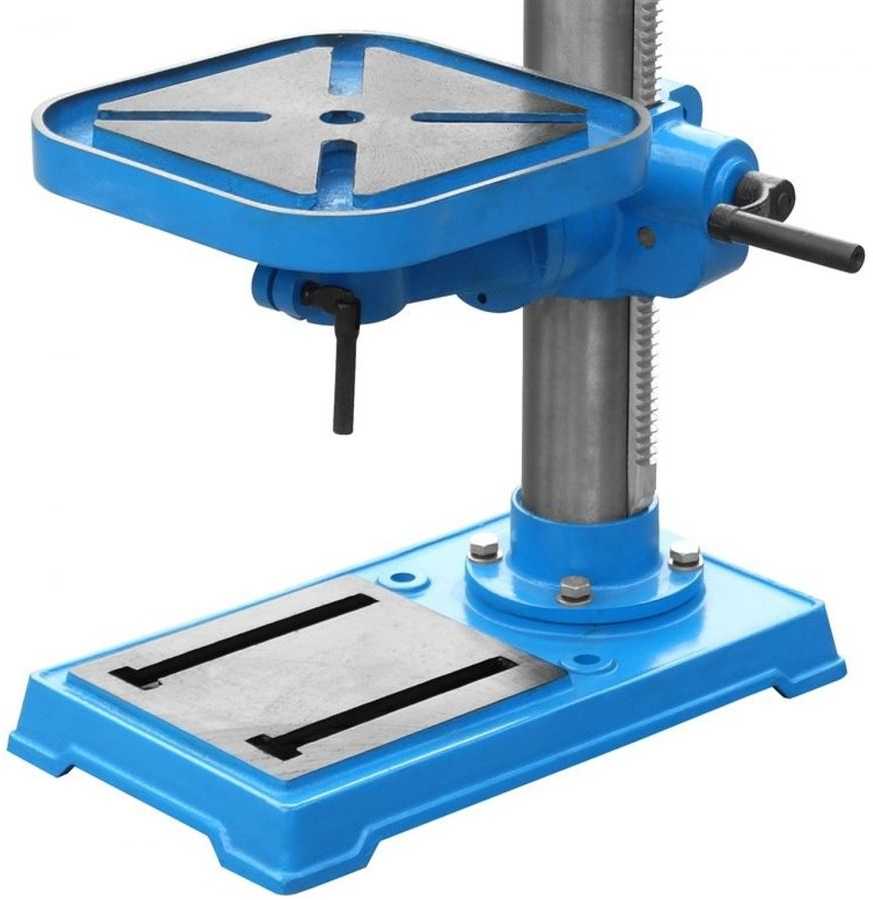

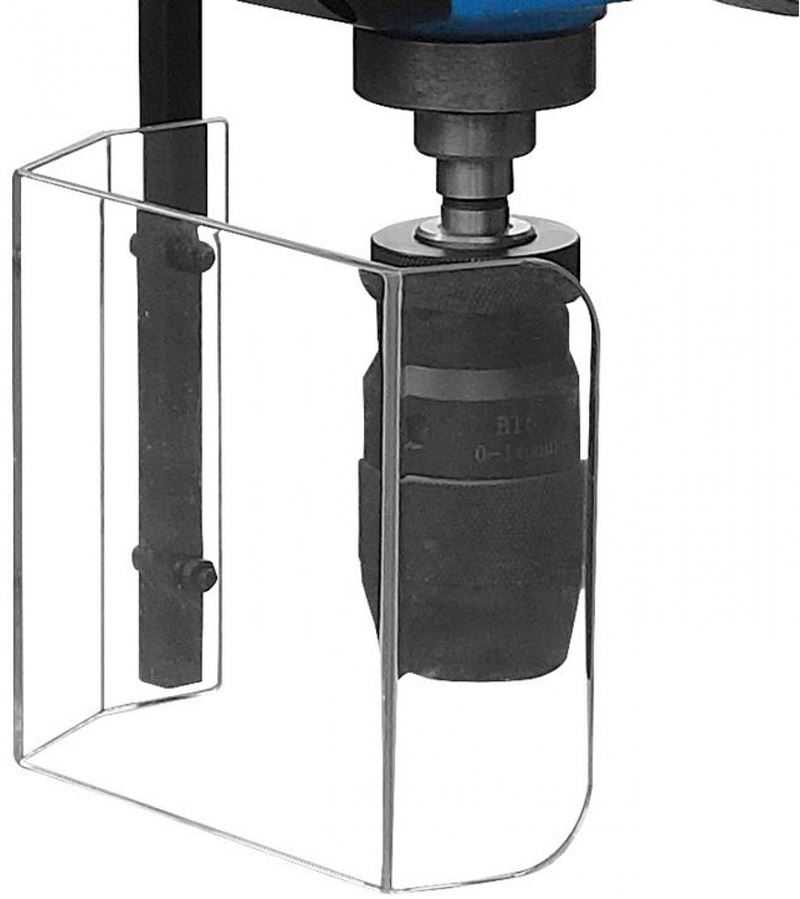

Robust bench drill, designed for machining metal, wood or plastics in maintenance/craft workshops, assembly plants, etc. 12 spindle speeds (210 - 2,500 rpm; manual adjustment via pulleys), switchable direction of rotation (P/L operation). Quick-release chuck for tools and drills 3 - 16 mm diameter (runout: 1 - 80 mm; for larger workpiece series), tilting work table (angled drilling; range: ± 45°). 800 W/P1 motor (400 V~50 Hz, 1,400 rpm, type of operation: S2/15 min.; with aluminium casing for optimum heat dissipation), main/node switch, 2 m connection cable H05 VV-F. Construction: steel pulleys (3), spindle with conical shank/precision ball bearings, conical shank MK2, solid drill table (d x w: 260 x 260 mm; with transverse grooves for clamping the vise), cast iron stand plate (-> d x w: 240 x 410 mm, incl. holes for stationary anchoring of the drill).Overall dimensions (l x w x h): 650 x 340 x 1,010 mm, sound power level LWA: 76.3 dB (A), electrical protection class: IP 20. Recommended accessories: GÜDE machine vises 100 mm (38319), 125 mm (38320), 150 mm (38321); T-nut (38308), 8-piece HSS drill set (38327).
