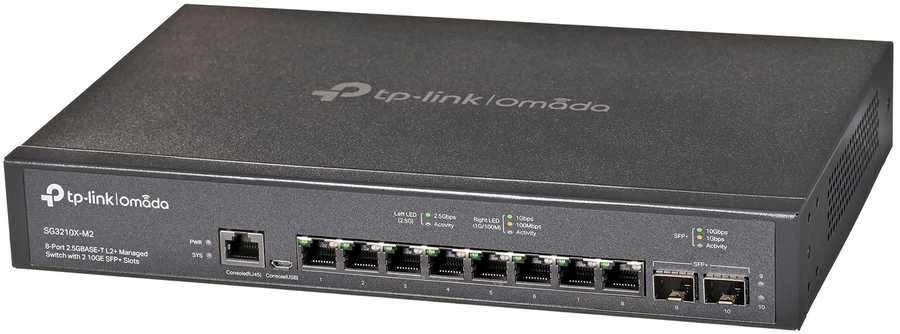

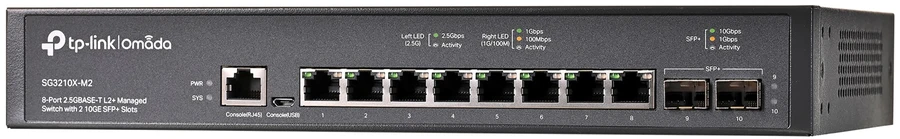

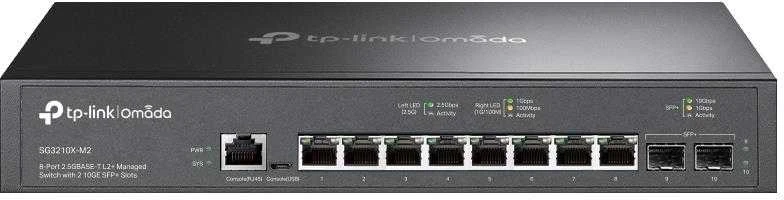

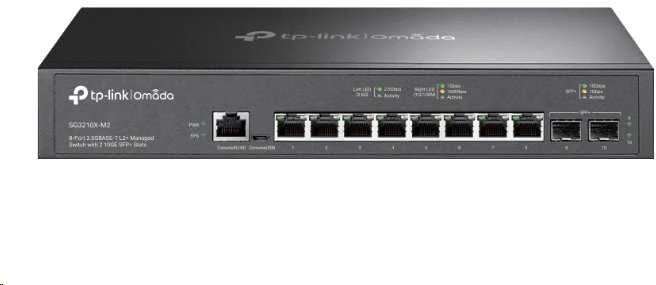

Šakotuvas TP-Link Omada 8 prievadų...

Turite Varlės paskyrą?

Prisijunkite, kad pamatytumėte krepšelio turinį

Prisijungti

Atsiimkite parduotuvėje 0 €

Atsiimkite paštomatuose nuo 1.⁷⁹ €

Pristatymas į namus nuo 3.⁹⁰ €

Design :

Product colour: Black

Led indicators: Yes

Form factor: 1U

Number of fans: 2 fan(s)

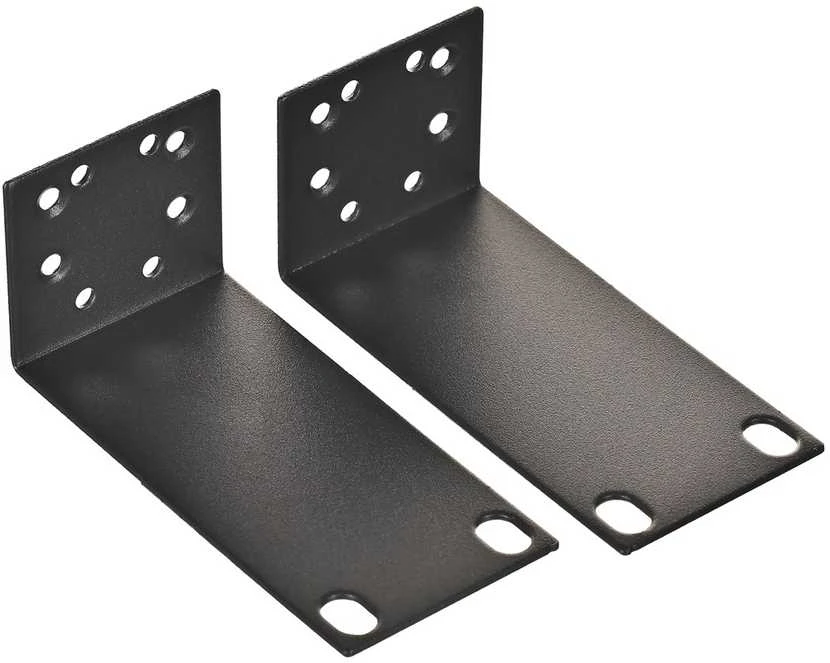

Rack mounting: Yes

Power :

Ac input voltage: 100 - 240 V

Ac input frequency: 50/60 Hz

Power consumption (typical): 15 W

Power supply included: Yes

Power source: AC

Security :

Security algorithms: SSL/TLS

Mac address filtering: Yes

Access control list (acl): Yes

Loop protection: Yes

Static port security: Yes

Ssh/ssl support: Yes

Queue scheduling algorithms: SP

Dhcp features: DHCP server

Bpdu filtering/protection: Yes

Authentication: MAC-based authentication, Port-based authentication

Ip-mac-port binding: Yes

Authentication type: AAA, TACACS+

Igmp snooping: Yes

Password protection: Yes

Operational conditions :

Operating relative humidity (h-h): 10 - 90%

Operating temperature (t-t): 0 - 50 °C

Storage temperature (t-t): -40 - 70 °C

Heat dissipation: 51_18 BTU/h

Storage relative humidity (h-h): 5 - 90%

Management features :

Web-based management: Yes

Quality of service (qos) support: Yes

Mib support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Switch type: Managed

Switch layer: L2+

System event log: Yes

Arp inspection: Yes

Cloud-managed: Yes

Traffic classification: Yes

Configuring location settings (cli): Yes

Weight & dimensions :

Height: 44 mm

Width: 294 mm

Depth: 180 mm

Network :

Networking standards: IEEE 802_1D

Ethernet lan data rates: 100,1000,2500 Mbit/s

Ip routing: Yes

Broadcast storm control: Yes

Virtual lan features: Private VLAN

Flow control support: Yes

10g support: Yes

Port mirroring: Yes

Rate limiting: Yes

Spanning tree protocol: Yes

Link aggregation: Yes

Number of vlans: 4000

Vlan support: Yes

Head-of-line (hol) blocking: Yes

Performance :

Fanless: Yes

Packaging data :

Package weight: 2_84 kg

Package type: Box

Package depth: 250 mm

Package width: 528 mm

Package height: 80 mm

Packaging content :

Quick start guide: Yes

Cables included: AC

Protocols :

Management protocols: SNMPv1/v2c/v3, SNTP

Garp vlan registration protocol (gvrp): Yes

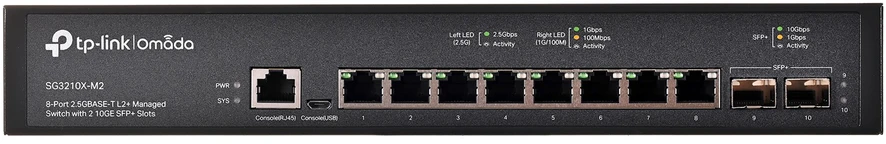

Ports & interfaces :

Basic switching rj-45 ethernet ports type: 2_5G Ethernet (100/1000/2500)

Sfp+ module slots quantity: 2

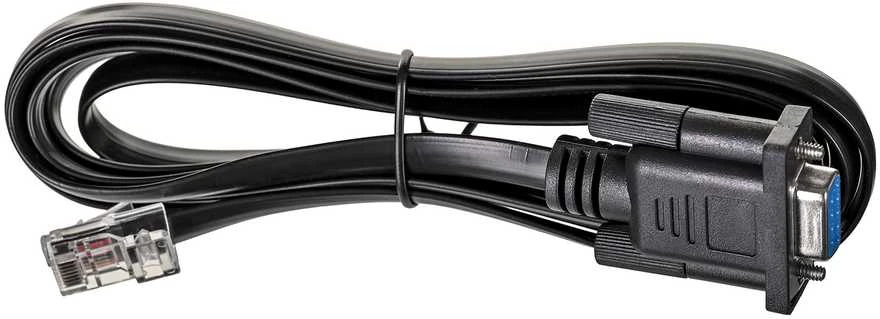

Console port: RJ-45/micro-USB

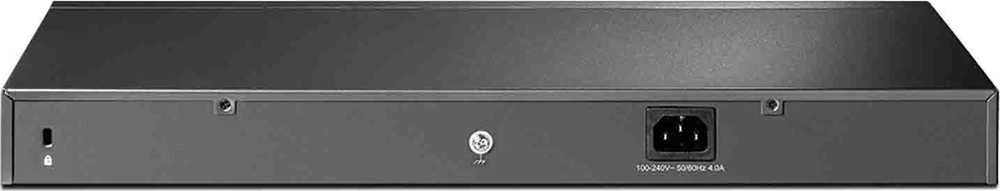

Power connector: AC-in jack

Basic switching rj-45 ethernet ports quantity: 8

2_5g ethernet (copper) ports quantity: 8

Logistics data :

Harmonized system (hs) code: 85176990

Data transmission :

Number of ip interfaces: 16

Packet buffer memory: 12 MB

Number of static routes: 48

Static route: Yes

Jumbo frames: 9000

Jumbo frames support: Yes

Mac address table: 16000 entries

Switching capacity: 80 Gbit/s

Forwarding rate: 59_52 Mpps

Multicast features :

Multicast support: Yes

Multicast listener discovery (mld) snooping: Y

Pastebėjote klaidą prekės aprašyme ar nuotraukų galerijoje? Praneškite mums.

Skaityti daugiau

Skaityti mažiau

Gamintojas TP-Link
Modelis

32102
Svoris 2.150
Aukštis 40.00
Plotis 25.00
QoS 8 priority queues 802.1p CoS/DSCP priority Queue scheduling: SP (Strict Priority); WRR (Weighted Round Robin);SP+WRR Bandwidth Control: Port/Flow based Rating Limiting Smoother Performance Action for Flows: Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark
Sukraunamumas Ne
Perjungti klasę Tvarko
Jumbo rėmo dydis 9
L2 savybės IGMP Snooping: IGMP v1/v2/v3 Snooping; Fast Leave; IGMP Snooping Querier; IGMP Authentication; IGMP Authentication MLD Snooping: MLD v1/v2 Snooping: Fast Leave; MLD Snooping Querier; Static Group Config; Limited IP Multicast MVR Multicast Filtering: 256 profiles and 16 entries per profile
10gb prievadų skaičius Nėra
Važiuoklės tipas Stovas
Tinklo architektūra Gigabit Ethernet
Poe+ prievadų skaičius Nėra
Sfp prievadų skaičius Nėra
Qsfp+ prievadų skaičius Nėra
Matmenys 294 × 180 × 44 mm
L3 savybės 32 IPv4/IPv6 Interfaces Static Routing: 48 static routes Static ARP: 128 Static Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay' DHCP VLAN Relay DHCP L2 Relay
10/100/1000 mbps prievadų skaičius Nėra
Taikymas Namai ir mažas biuras
Poe prievadų skaičius (poe ir poe+) Nėra
Mac adresų lentelės dydis 16000
10/100/1000/2500 mbps prievadai 8
Aplinkos reikalavimus Operating Temperature: 0-50 stopni Celsjusza Storage Temperature: -40-70 stopni Celsjusza Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensing
VLAN VLAN Group: Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 256 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 GVRP VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ Voice VLAN
Atrama jumbo rėmams taip
10/100 mbps prievadų skaičius Nėra
Energijos sąnaudos 15
Ventiliatorius Ne
Konsolės prievadas taip
Sfp+ prievadų skaičius 2
Kombinuotų prievadų skaičius Nėra
Sfp56 prievadų skaičius Nėra
Pralaidumas 80
Persiuntimo greitis 59.52
Apsauga Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control
Perjungimo sluoksnis L2+, L3, L4, L2
Paskirtis CE+WEEE
Maitinimas 100-240 V AC~50/60 Hz
Modelio pavadinimas

SG3210X-M2
