| Pagrindinis | |
| Product Dimensions (W × H × D) | 103.6 mm × 58.3 mm × 198.4 mm (4.1'' × 2.3'' × 7.8'') |
| Pakuotės Matmenys (P × A × G) | 550 mm × 238 mm × 167 mm (21.6" × 9.3" × 6.5") |
| Svoris be įpakavimo | 0.3 kg (0.66 lb) |
| Svoris su įpakavimo | 3.5 kg (7.71 lb) |
| Pakuotėje | Wireless Bridge × 1,Power Supply Adaptor × 1,Power Cord × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Binding Tape × 2,Antenna ×1 |
| Packing Method | Single unit packing |
| Darbinė temperatūra | -30 °C to 60 °C (-22 °F to 140 °F) |
| Atsparumas drėgmei | 5% to 95% (no condensation) |
| Sandėliavimo sąlygos temperatūra | -40 °C to 80 °C (-40 °F to 176 °F) |
| Sandėliavimo sąlygos drėgmė | 5% to 95% (no condensation) |
| Installation Mode | Pole Mounting |
| Ingress Protection | IP55 |
| Energijos sunaudojimas | 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W |
| Belaidžio ryšio parametrai | |
| Max. Transmission Rate of Air Interface | ≤ 867 Mbps |
| Belaidis standartas | IEEE 802.11/a/n/ac |
| Working Frequency Band | 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.) |
| Antenos stiprinimas | 8 dBi |
| Antenna Angle | (H) Beamwidth [3 dB] 360° (V) Beamwidth [3 dB] 8° |
| Perdavimo galia | 14 dBm (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity | -60±2 dBm@AC80-MCS9,-85±2dBm@AC80-MCS0 |
| Throughput Rate | Point to point: Support up to 32-ch IPC (2MP) in Max. 1 KM distance and Max. 160 Mbps bandwidth,Point to multi-point: Support up to 22-ch IPC (2MP) in Max. 1 KM distance and Max. 110 Mbps bandwidth within 360°, Max. 1 to 8 PTMP connection |
| PoE | |
| PoE prievadas | PoE IN/LAN 1 |
| PoE Distance | 100m |
| Hardware Parameter | |

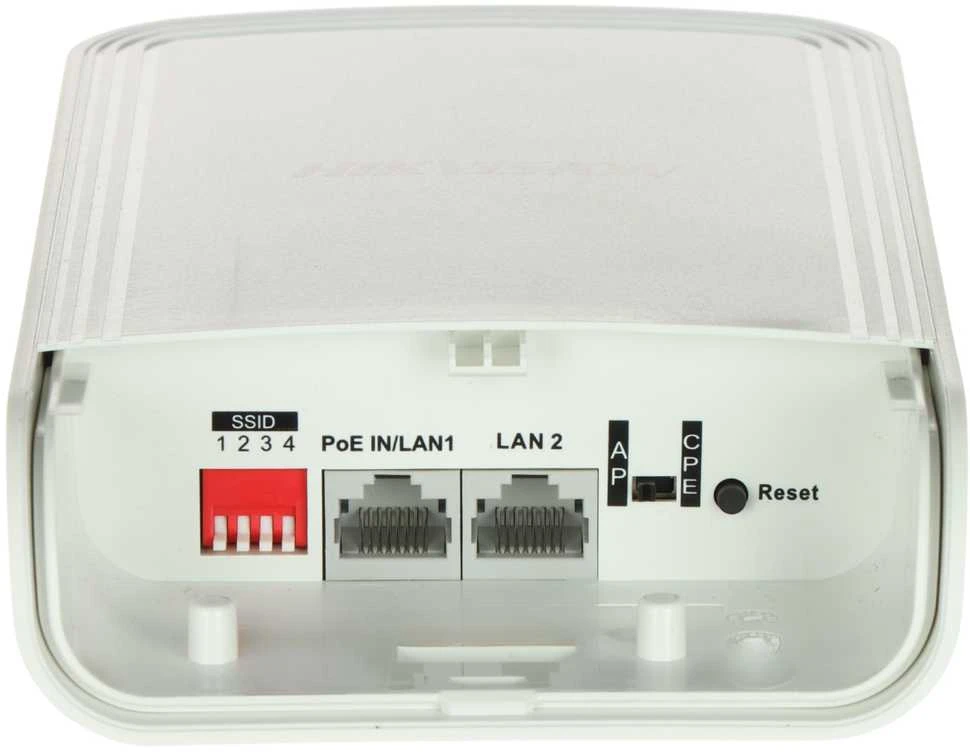

| Tinklo sąsaja | 2 × 1000 Mbps RJ45 ports |
| LED indikatorius | Power indicator,LAN indicator,Signal intensity indicator |
| Perkrovimas | Hardware resetting button |
| Maitinimas | 48V 0.33A PoE or PoE(802.3af) 36～57V 0.13A |
| Programinės įrangos funkcijos | |
| Application Function | TDMA,DFS,TPC,IFM,IPM |
| Kanalo plotis | 20/40/80 MHz |
| Channel Selection | Auto/manual selection |
| Protokolai | NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging) |
| Security Mode | WPA2-PSK |
| Security Mechanism | Wireless network name hidden |
| Management Method | Web,iVMS-4200,HCP |
| Upgrade | Web,iVMS-4200,HCP |
| System Log | Syslog,Control center information |
| Patvirtinimai | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Saugumas | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Cheminis tyrimas | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17 |
