Pagrindinė plokštė Gigabyte H810M S2H GEN5 | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4

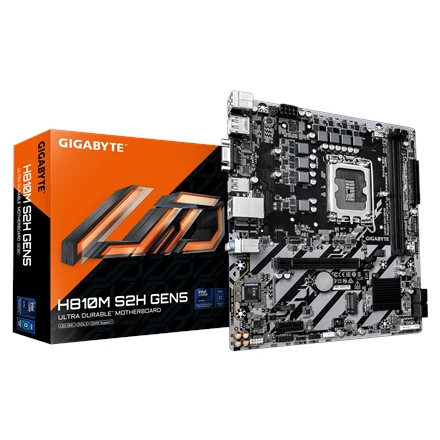

GIGABYTE H810M S2H GEN5

Chipset: Intel® H810 Express
Size: Micro ATX (244x215 mm)
Processor Support: Intel® Core™ Ultra
Processor socket:LGA1851

Memory:


2x DIMM sockets supporting up to 128GB, DDR5 6400/5600 MT/s memory modules
Dual channel memory architecture
Support for Extreme Memory Profile (XMP) memory modules

Graphics Ports:


1x HDMI with a maximum resolution of 4096x2160 at 60 Hz - Support for HDMI version 2.1 and HDCP 2.3
1x DisplayPort with a maximum resolution of 3840x2160 at 60 Hz - Support for DisplayPort version 2.1
1x D-Sub port with maximum resolution of 1920x1200 at 60 Hz

Sound Card:


Codec Realtek® Audio
High Definition Audio
2/4/5.1/7.1 channel

Ethernet: Realtek® GbE LAN
WLAN + Bluetooth: no

Expansion slots:


1x PCI Express x16 supports PCIe 5.0 and runs on x16 (PCIEX16)
1x PCI Express x1 supports PCIe 3.0 and runs on x4 (PCIEX1)

RAID controller: no

Storage:


1x M.2, M key type 2280 - PCIe 4.0 x4/x2 SSD support
4x SATA 6Gb/s

USB:
Rear USB


1x USB 3.2 Gen 1
5x USB 2.0/1.1

Front USB


1x USB Type-C® header with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header - support for 1 additional USB 3.2 Gen 1
1x USB 2.0/1.1 header - support for additional 1 USB 2.0/1.1

Internal ports:
Power


1x 24pin ATX main power connector
1x 8pin ATX 12V power connectors

Fan and cooling related


1x CPU fan header
2x system fan header

Storage related


1x M.2 slot (M key)
4x SATA 6Gb/s port

USB


1x USB Type-C® header
1x USB 3.2 Gen 1 header
1x USB 2.0/1.1 header

Other


2x addressable RGB Gen2 LED strip header
1x front panel header
1x front panel audio header
1x Trusted Platform Module header (only for GC-TPM2.0 SPI V2 module)
1x serial port header
1x Clear CMOS jumper

Rear panel ports:


1x PS/2 keyboard/mouse
1x HDMI
1x DisplayPort
1x D-Sub
1x USB 3.2 Gen 1
5x USB 2.0/1.1
1x RJ-45
3x audio jack

BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Manufacturer's website link: https://www.gigabyte.com/Motherboard/H810M-S2H-GEN5
