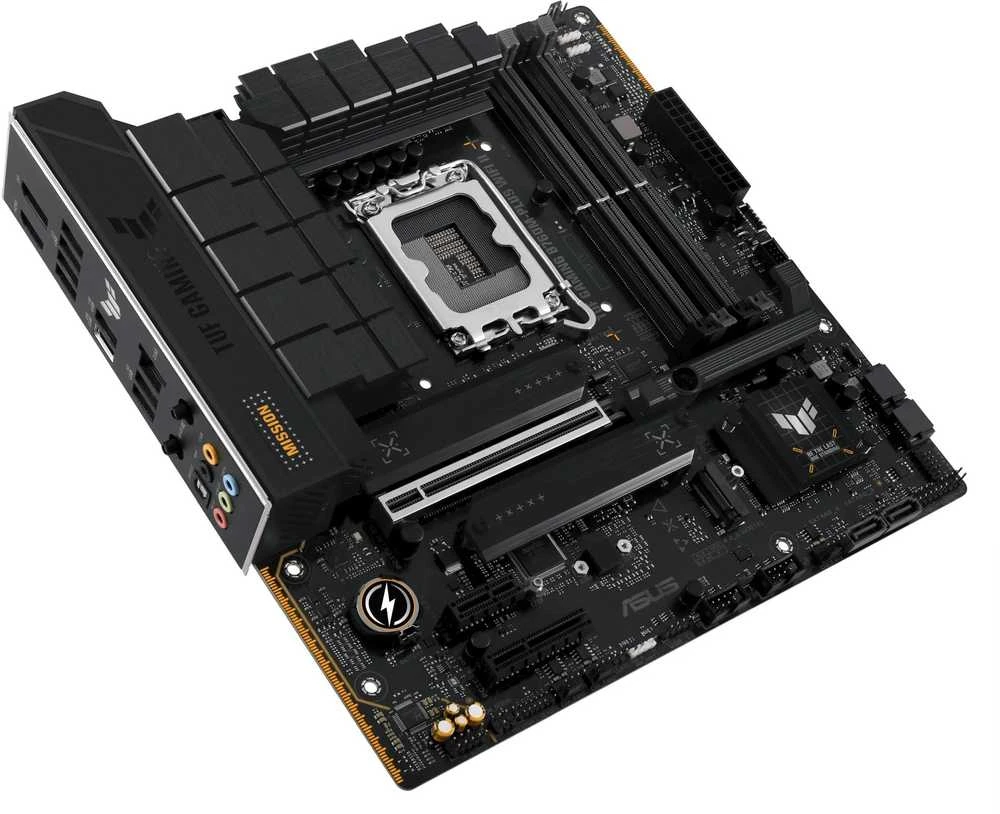

Pagrindinė plokštė ASUS TUF GAMING B760M-PLUS WIFI II

TUF GAMING B760M-PLUS WIFI II Chipset: Intel® B760 Chipset Dimensional Format: mATX ( 24.4 cm x 24.4 cm ) Processor support: Intel® LGA1700 socket for 14th and 13th generation Intel® Core™ processors, 12th generation Intel® Core™ processors, Pentium® Gold and Celeron® processors Supports Intel® Turbo Boost 2.0 and Intel® Turbo Boost Max 3.0 technologies. LGA1700 processor socket. Memory: 4 x DIMM slots, max 192 GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, un-buffered memory Dual-channel memory architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II Graphics Outputs: 1 x DisplayPort 1 x HDMI™port Sound Card: Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: 1 x Realtek 2.5Gb Ethernet, TUF LANGuard WLAN + Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Support 2.4/5/6GHz Bluetooth® v5.3 Expansion slots: Intel® CoreTM Processors (14 & 13 & 12 Gen) 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot USB: Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps port (2 x Type-A) 4 x USB 2.0 port (4 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector(supports USB Type-C®) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports Rear panel ports: 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jack 1 x Optical S/PDIF out port Internal ports: -Cooling 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers -Power supply 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors -Storage 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports -USB 1 x USB 10Gbps connector(supports USB Type-C® ) 1 x USB 5Gbps header supporting 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports -Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header BIOS: 256Mb Flash ROM, UEFI AMI BIOS Accessories: Cables -2 x SATA 6Gb/s cable Miscellaneous -1 x ASUS Q-Antenna -1 x M.2 Rubber Package -1 x TUF Gaming sticker -2 x Screw packages for M.2 SSD Documentation -1 x TUF Certification card -1 x User guide
