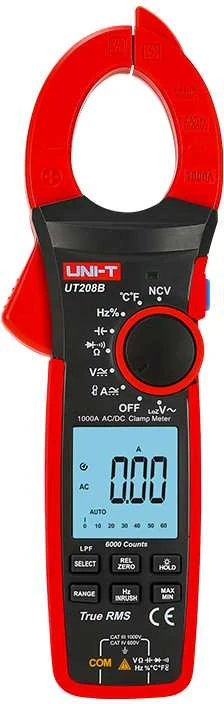

Uni-T UT208B Digital Clamp Meter

The Uni-T UT208B digital clamp meter is the most versatile tool in the series, designed for use in demanding electrical installations. Thanks to its wide range of functions, it is ideal for diagnostics and maintenance.

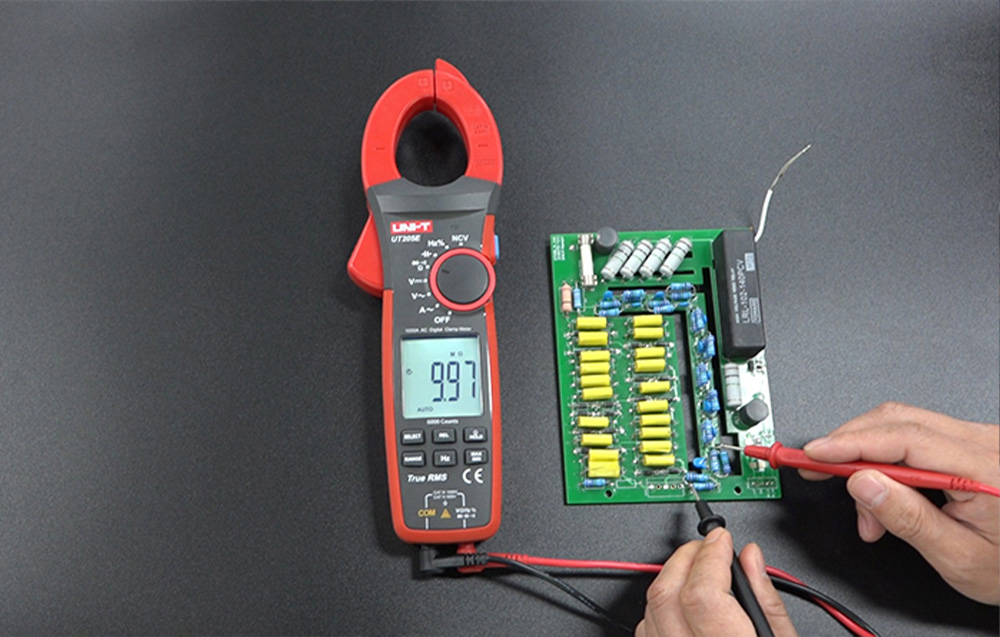

Srovės matavimo replės, 1000V AC/DC, 1000A AC/DC, 60MOm, 60mF, analoginė skalė, 1000C, LPF, LoZ, ACV, UNI-T aprašymas - Prekės nuotrauka

Maximum measurement capabilities

The UT208B model allows for measuring AC and DC current up to 1000A and voltage up to 1000V, as well as precise measurement of temperature, frequency, and capacitance. The highest accuracy and operational safety are guaranteed by a set of advanced features, such as True RMS, NCV, LPF, LoZ, and Zero mode. The device handles the analysis of sudden load spikes with ease thanks to inrush current measurement, and the optional Flex probe allows for an impressive expansion of the measurement range.

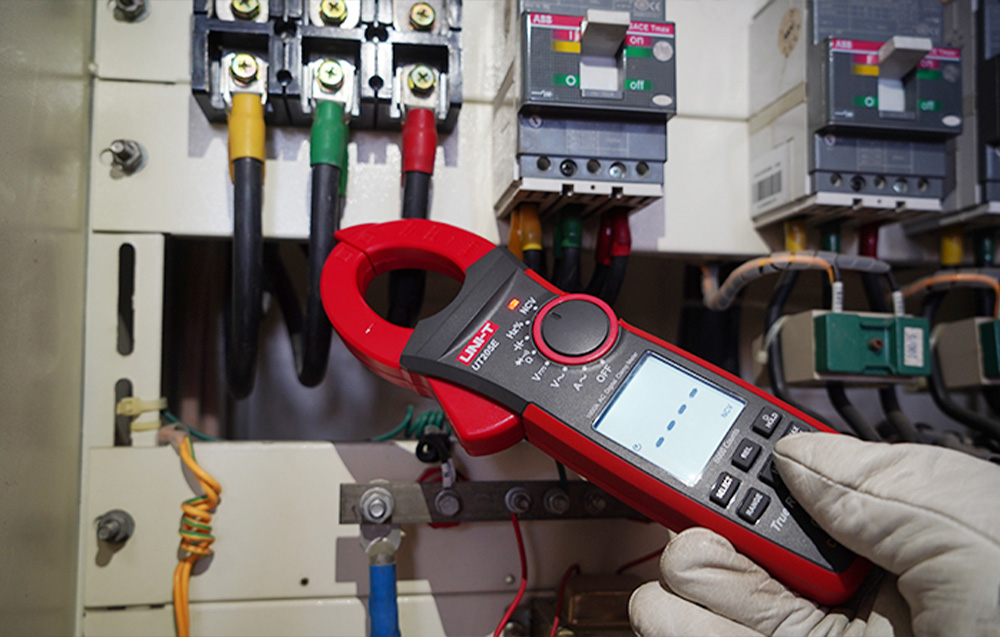

Srovės matavimo replės, 1000V AC/DC, 1000A AC/DC, 60MOm, 60mF, analoginė skalė, 1000C, LPF, LoZ, ACV, UNI-T aprašymas - Prekės nuotrauka

Clear Design and Safety

A large screen, bar graph, and robust construction ensure ease of use. The device complies with CAT III 1000V / CAT IV 600V standards.

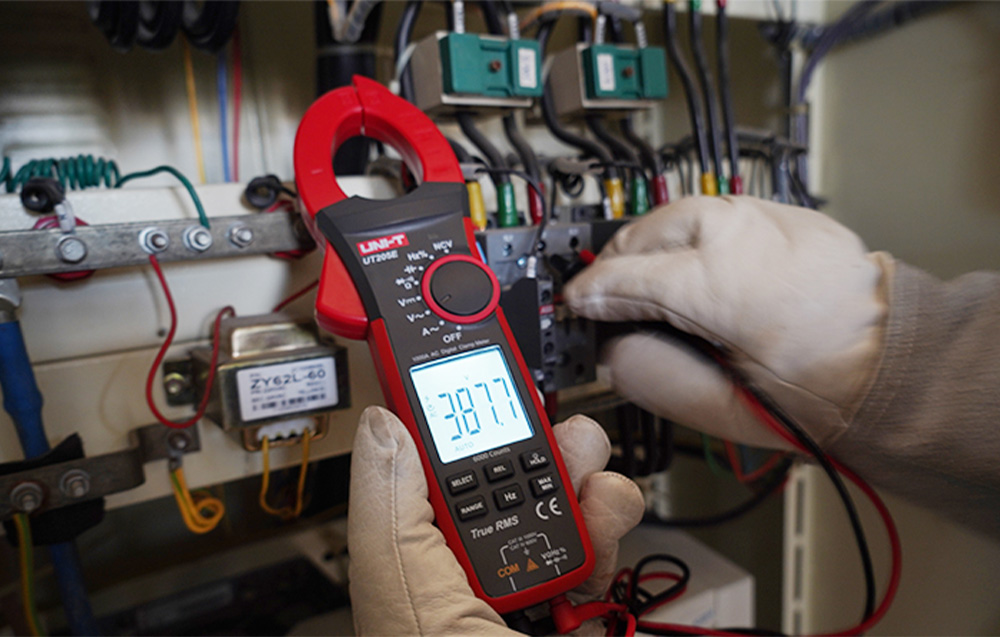

Srovės matavimo replės, 1000V AC/DC, 1000A AC/DC, 60MOm, 60mF, analoginė skalė, 1000C, LPF, LoZ, ACV, UNI-T aprašymas - Prekės nuotrauka

Included

Clamp meter
Batteries x3
Test leads
Temperature probe
User manual

Specifications

Manufacturer	Uni-T
Model	UT208B
Type	True RMS clamp meter
AC current	1000A ±(2%+5)
DC current	1000A ±(2%+5)
Inrush current	1000A ±(10%+10)
AC voltage	1000V ±(1.2%+3)
DC voltage	1000V ±(0.5%+5)
LPF ACV	1000V ±(2%+5)
LoZ ACV	1000V ±(2%+5)
AC voltage range	40Hz ~ 400Hz
Resistance	60MΩ ±(1%+2)
Capacitance	60mF ±(4%+5)
Temperature	-40°C ~ 1000°C ±(1%+2)
Frequency	10Hz ~ 1MHz ±(0.1%+3)
Duty cycle	10% ~ 90% ±(2.6%+7)
Maximum reading	6000
Functions	True RMS, NCV, LPF, LoZ, Zero mode, inrush current measurement, bargraph, Flex probe capability
Jaw opening	42 mm
Power supply	3x 1.5V battery (R03)
Display	43 x 45 mm
Dimensions	272 x 81 x 43.5 mm
Weight	420 g
Safety	CAT III 1000V / CAT IV 600V
Certifications	CE, UKCA, cETLus
