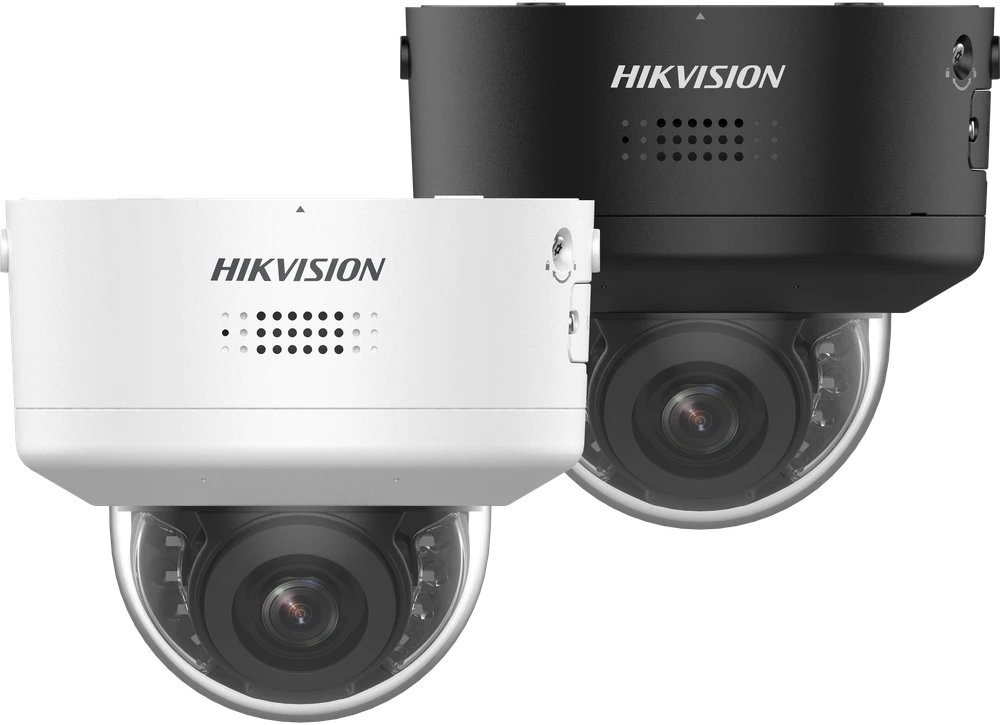

Monitorius Hikvision dome DS-2CD2747G2H-LIPTRZS2U / SL F2.8-12 (Juoda, 4 MP, 40 m. IR, ColorVu), žema kaina

Kamera
Sensorius 1/1.8" Progressive Scan CMOS
Maks. rezoliucija 2688 × 1520
Min. apšvietimas Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
Užrakto greitis 1/3 s to 1/100,000 s
Day & Night IR cut filter
Kampo keitimas
Remote adjustment (Max. 1000 cycles)

Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Lęšis
Lęšio tipas Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
Lęšio montavimas Integrated
Rainelės tipas Fixed
Diafragama Max. F1.2
Ryškumo gylis 1 m to ∞

DORI
DORI
Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 m

Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m

Garsas
Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas Yes

Internetas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Vidinė atmintis NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klientas iVMS-4200,Hik-Connect,Hik-Central
Naršyklė
Plug-in required live view: IE 11,

Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Nuotrauka
Nuotraukos parametrų keitiklis Yes
Nuotraukos nustatymai Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimas Day,Night,Auto,Schedule
Nuotraukų pagražinimas BLC,HLC,3D DNR
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Privatumo kaukė 4 programmable polygon privacy masks

Sąsaja
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Įmontuotas mikrofonas Yes, 2 built-in microphones
Įmontuotas garsiakalbis 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Garsas
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Perkrovimo mygtukas Yes

Funkcijos
Pagrindinės funckcijos Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Išmaniosios funkcijos scene change detection
Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,white light flashing

Išmaniosios funkcijos
Veido atpažinimas Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block,

PoE: IEEE 802.3at, Class 4, max. 18 W
Medžiaga Metal
Dydis Ø155 mm × 140.4 mm (Ø6.10" × 5.23")
Pakuotės dydis 206 mm × 206 mm × 230 mm (8.1" × 8.1" × 9.1")
Svoris Approx. 820 g (1.8 lb.)
Svoris su įpakavimu Approx. 1200 g (2.6 lb.)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Pagrindinės funkcijos Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light White Light
