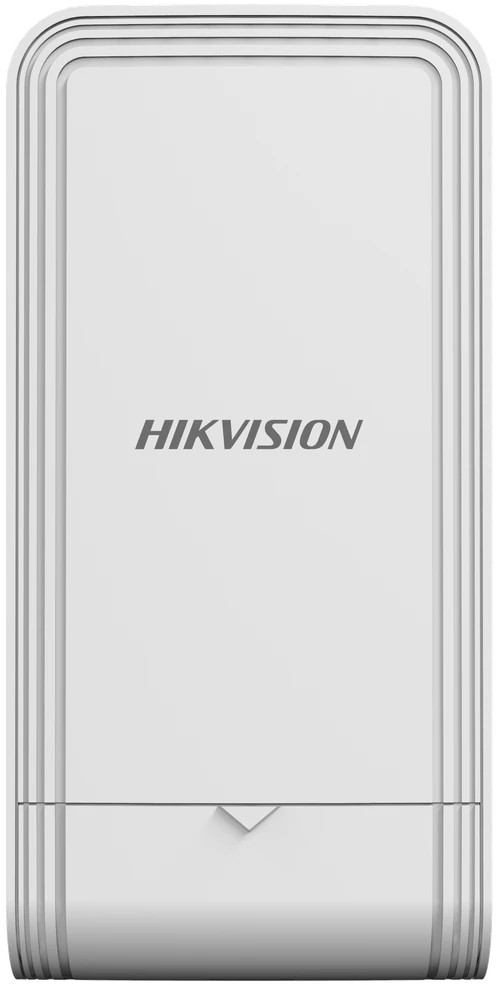

Name: Maršrutizatorius Belaidis CPE siųstuvas Hikvision DS-3WF03C-5AC/O(V3) (5GHz, 867Mbps, 15km)
Brand: Hikvision
SKU: 47944821
Price: 92.66 EUR
Availability: InStock

Visi LAN prievadai – gigabitiniai
Palaikoma TDMA technologija
Greitas sujungimas per DIP jungiklį
Vizualizuotas topologijos valdymas
Belaidžio perdavimo atstumas iki 15 km

Patvirtinimai
Cheminių komponentų sertifikavimas	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015)
Radio	EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247
Saugumas	UL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017)

Bendrieji duomenys
Bendras svoris	0.807 kg (1.779 lb)
Installation Mode	Pole mounting
Grynas svoris	0.307 kg (0.677 lb)
Pakuotės Matmenys (P × A × G)	132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
Pakuotėje	Wireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 1000 MB PoE injector × 1, binding tape × 2, quick start guide × 1
Packing Method	Single unit packing
Energijos suvartojimas	3 W for typical (1-ch 2MP IPC), Max. 7.5 W
Produkto matmenys (P × A × G)	92 mm × 187 mm × 58 mm (3.62" × 7.36" × 2.28")
Laikymo drėgnumas	5% to 95% (no condensation)
Laikymo temperatūra	-40°C to 85°C (-40°F to 185°F)
Darbinė drėgmė	5% to 95% (no condensation)
Darbinė temperatūra	-30°C to 70°C (-22°F to 158°F)

Hardware Parameter
LED indikatorius	Power indicator, LAN indicator, signal intensity indicator
Port Numbers	2 × Gigabit RJ45 ports
Energijos šaltinis	12 VDC/1 A Passive PoE; 12 VDC, 1 A
Perkrovimas	Hardware resetting button

Tinklo parametrai
Networking Mode	Point to point: Support up to 4-ch IPC (2MP) in Max. 15 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 5 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 5 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection

Programinės įrangos funkcijos
Application Function	TDMA, DFS, TPC,IFM,IPM
Channel Selection	Auto/manual selection
Kanalo plotis	20/40/80 MHz
Management Method	Web, HCP
Protokolai	NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
Security Mechanism	Wireless network name hidden
Security Mode	WPA2-PSK
Sistemos žurnalas	Syslog, control center information
Upgrade	Web, iVMS-4200

Belaidžio ryšio parametrai
Antenna Angle	Beamwidth [3dB] (35°± 5°)
Antenos stiprinimas	12 dBi
Max. Transmission Rate of Air Interface	≤ 867 Mbps
Receiving Sensitivity	-60 ± 2 dBm@AC80 -MCS9; -86 ± 2 dBm@AC80 -MCS0
Perdavimo galia	27 dBm (Note: Transmitting power may vary with local regulations.)
Belaidžio ryšio standartas	IEEE 802.11/a/n/ac
Working Frequency Band	5150 to 5250 MHz5250 to 5350 MHz (DFS)5470 to 5725 MHz (DFS)5725 to 5850 MHz(Note: Available channel may vary with local regulations.)
