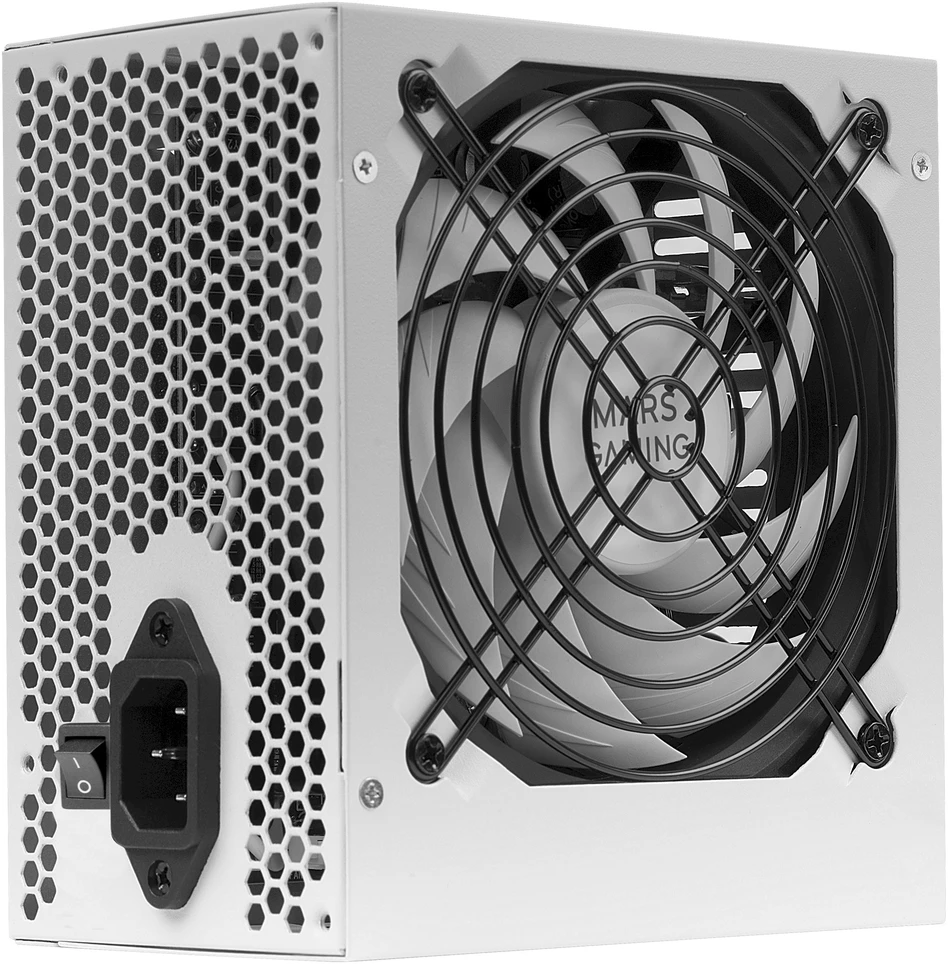

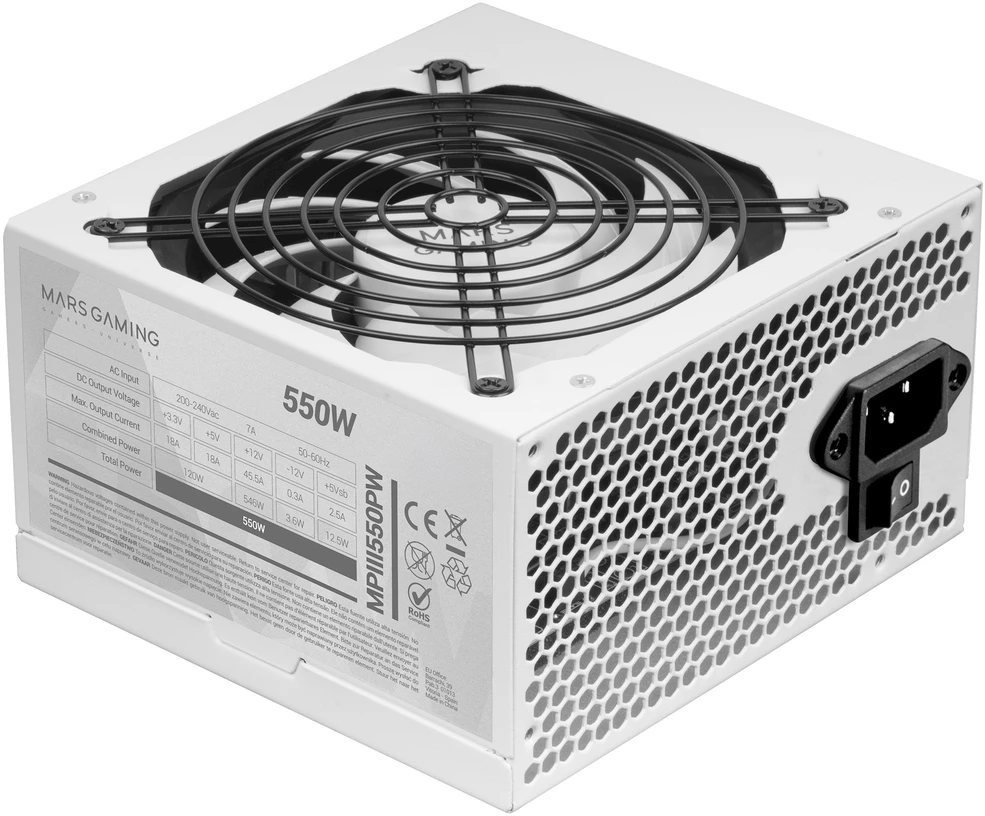

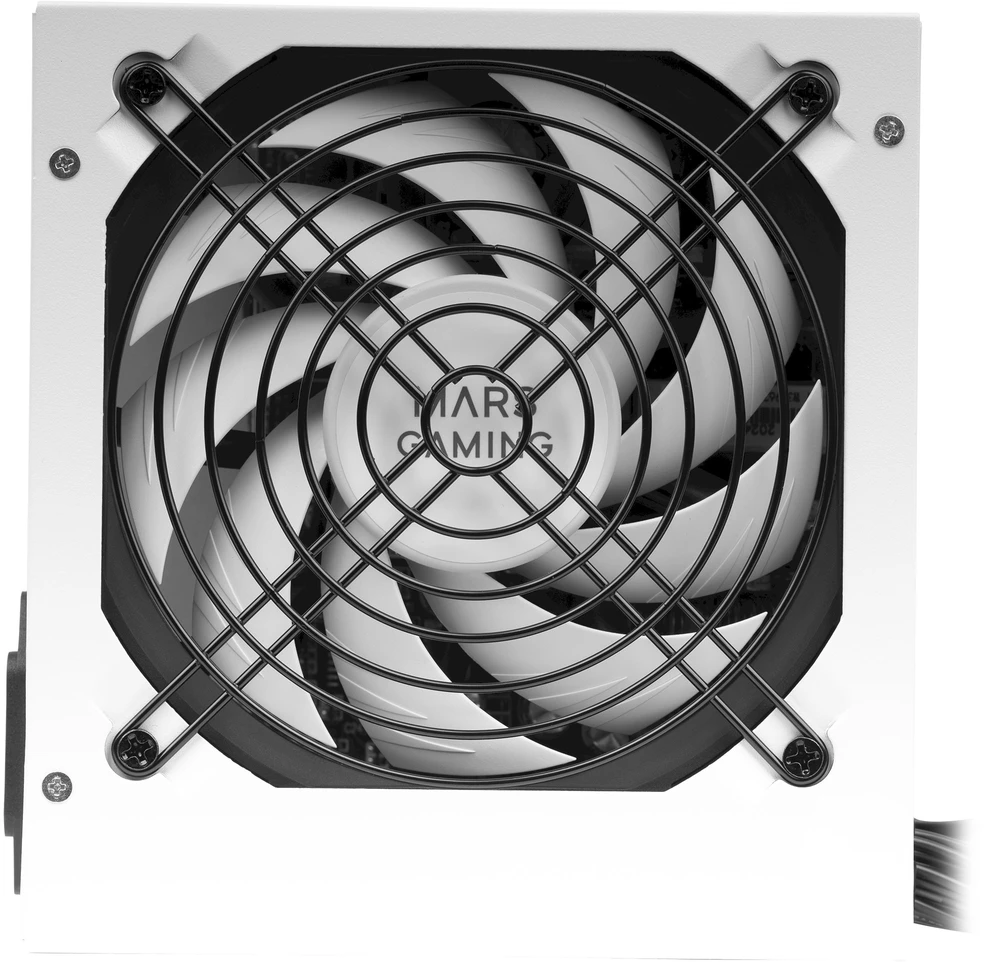

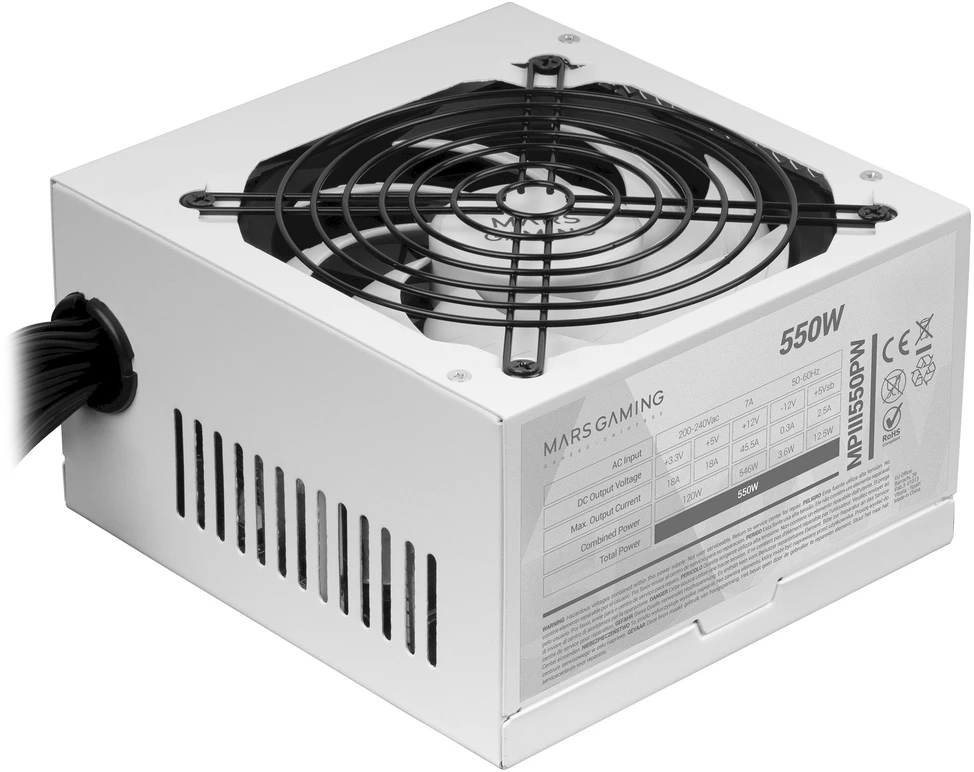

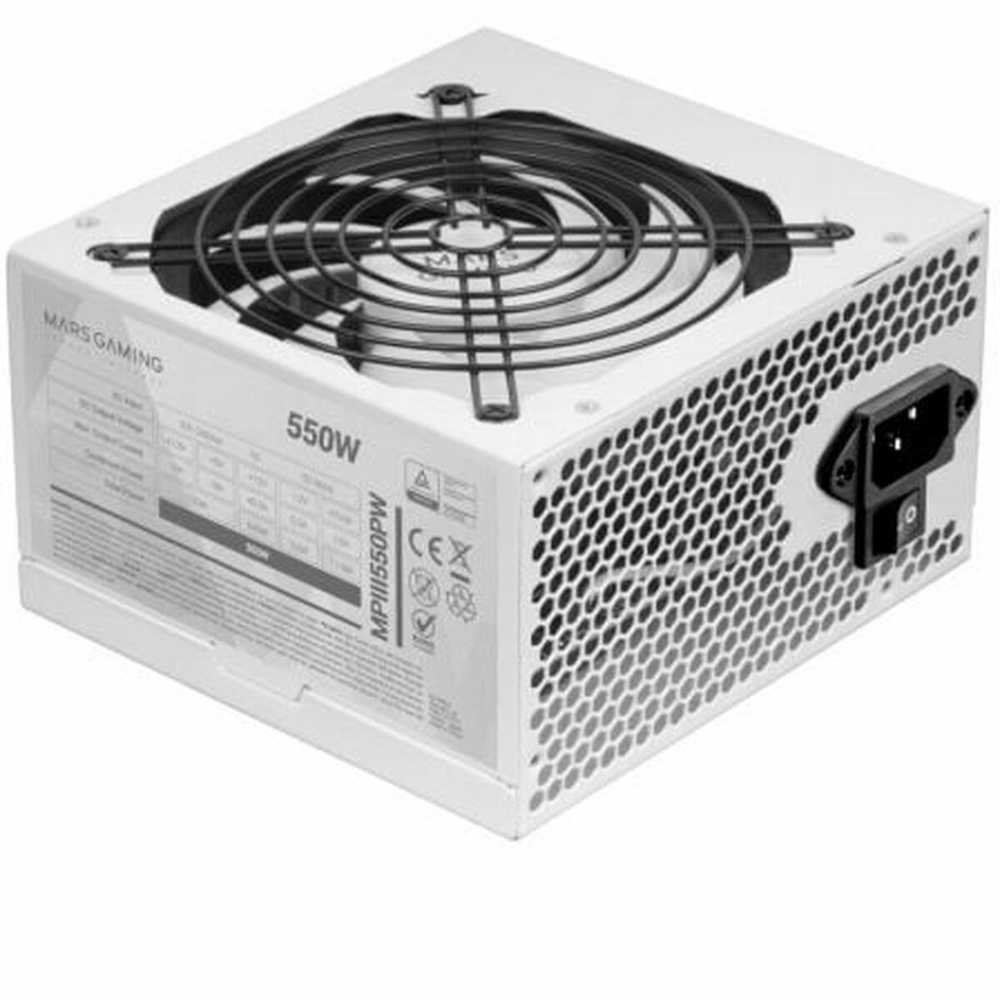

Mars Gaming MPIII550PW Power Supply Unit 550 W 24-pin ATX / baltas

Mars Gaming MPIII550PW is a 550 W ATX power supply with a 5-year warranty , advanced safety systems , and non-modular flat black cables for cleaner installation.

Features

• 550 W power with DC-DC technology for stability and performance.
• AI-RPM technology with IC control for quieter operation.
• FDB fan for durability and minimal noise.
• Advanced protection systems: OVP, UVP, OCP, OPP, and SCP.
• SMD technology and grade-A components.
• 99% DIGITAL APFC efficiency and 85% electrical efficiency .

Technical Specifications

• Model: MPIII550PW
• Product type: Power supply unit
• PSU form factor: ATX
• Purpose: PC
• Colour: White
• Cabling type: Non-Modular
• Cooling type: Active
• Fan diameter: 12 cm
• Number of fans: 1
• Noise level: 14 dB
• On/off switch: Yes
• Certification: ATX12V
• Compliance certificates: CE, RoHS
• Warranty: 5 years

Compatibility

• Motherboard power connector: 24-pin ATX
• PSU form factor: ATX
• Purpose: PC

Connectors

• Motherboard power connector: 1 x 24-pin ATX
• EPS power connector: 1 x 4+4 pin
• PCI Express power connector: 1 x 6+2 pin
• SATA power connectors: 3
• Peripheral (Molex) power connectors: 2 x 4-pin

Power

• Total power: 550 W
• AC input voltage: 220 - 240 V
• AC input frequency: 50/60 Hz
• Input current: 7 A
• Power Factor Correction (PFC) type: Active
• Efficiency: 85%
• Combined power (+3.3V): 120 W
• Combined power (+12V): 546 W
• Combined power (+5V): 120 W
• Combined power (-12V): 3.6 W
• Combined power (+5Vsb): 12.5 W
• Max output current (+3.3V): 18 A
• Max output current (+12V): 45.5 A
• Max output current (+5V): 18 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 2.5 A
• Single +12V rail: Yes

Dimensions and Weight

• Width: 150 mm
• Depth: 145 mm
• Height: 85 mm
• Weight: 1.25 kg
• Package width: 124 mm
• Package depth: 237 mm
• Package height: 205 mm
• Package weight: 1.12 kg
