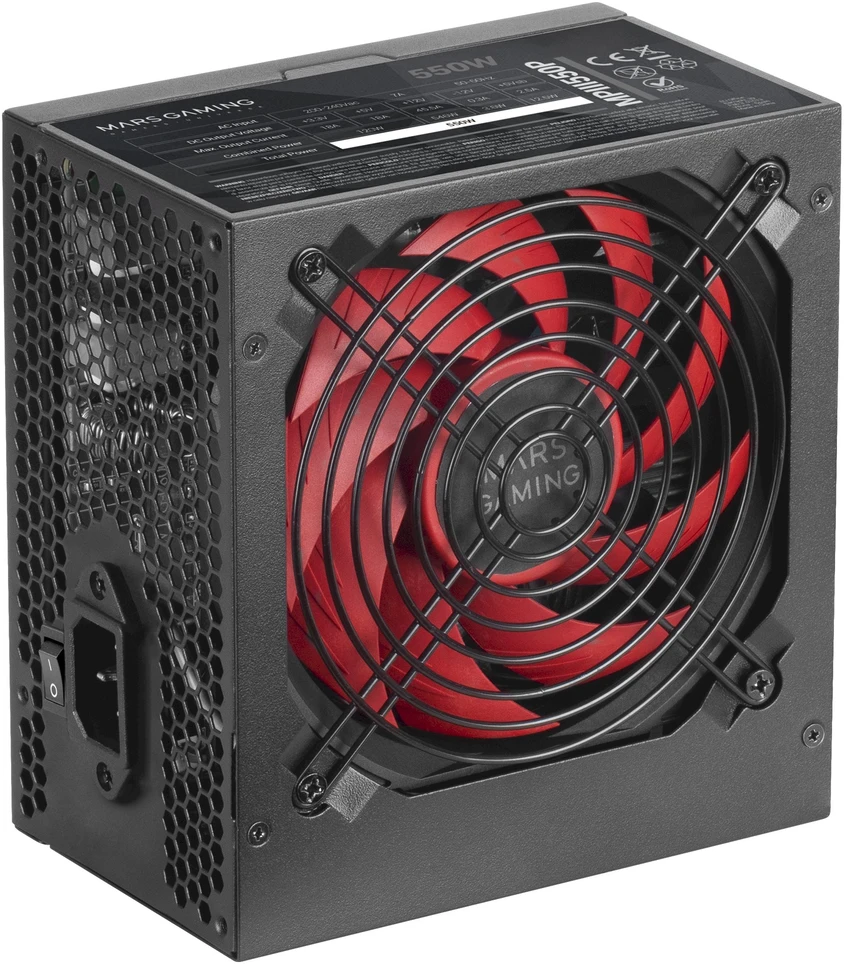

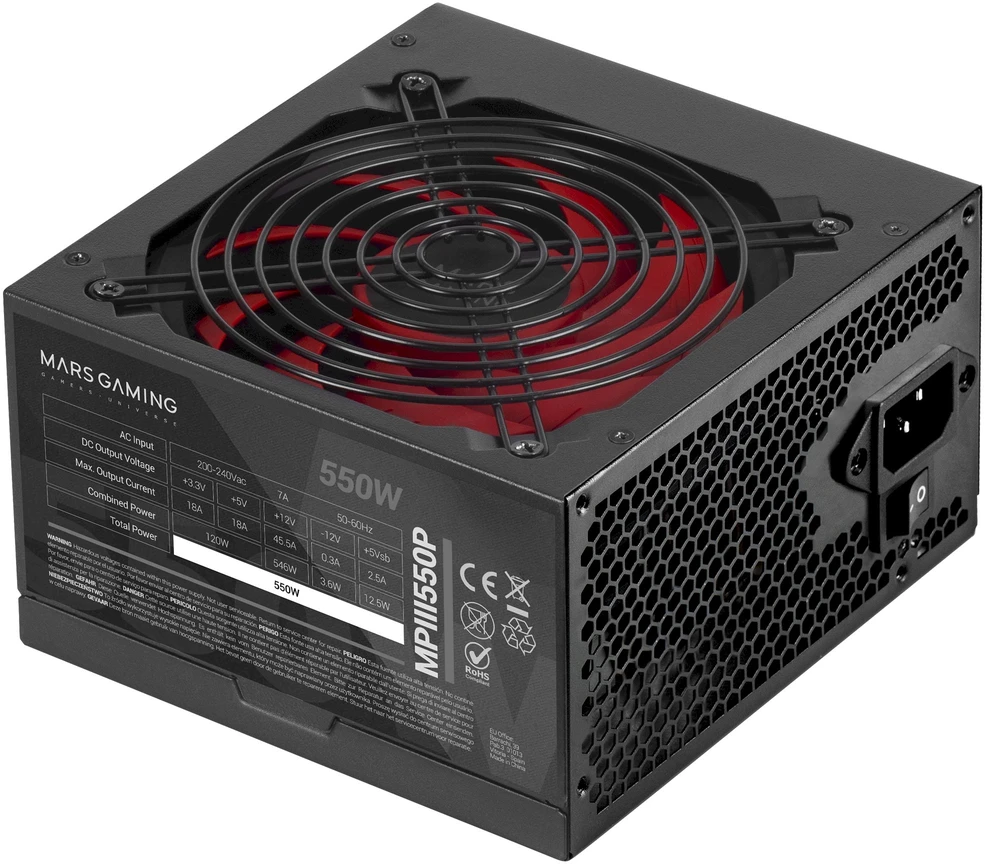

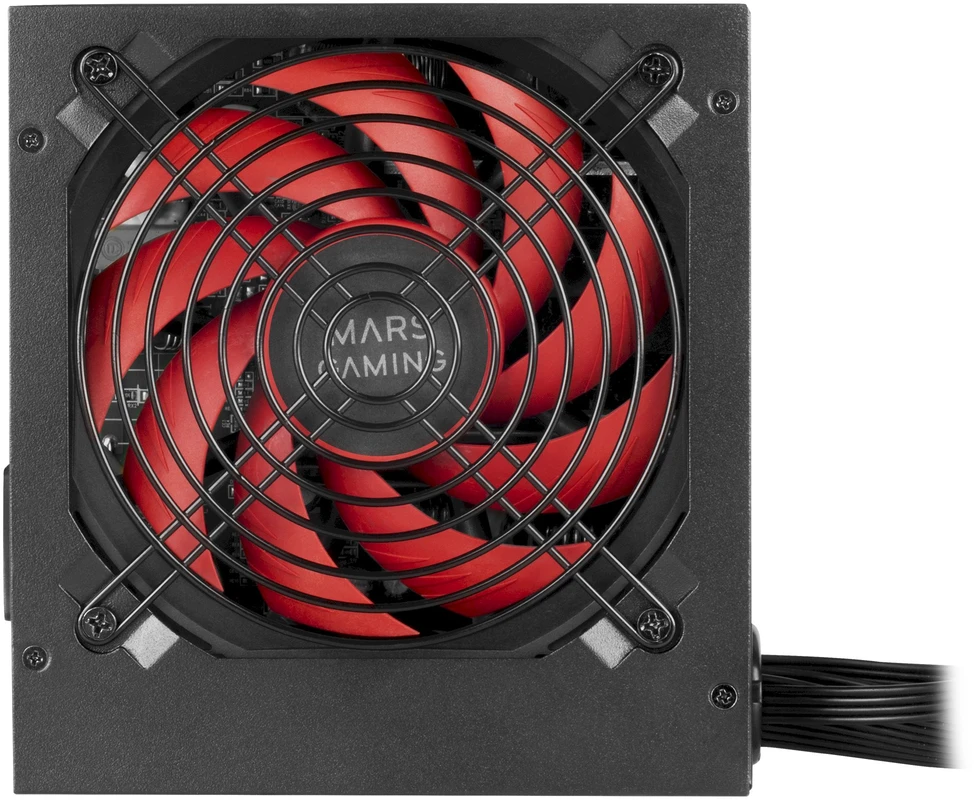

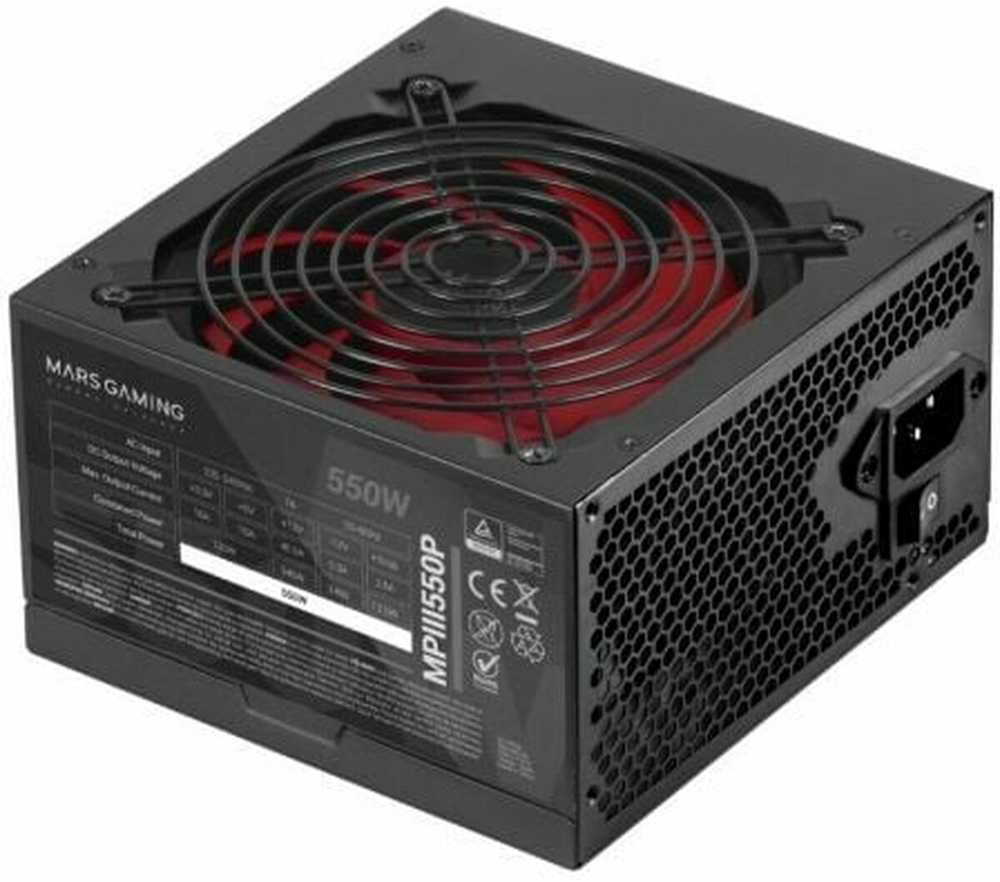

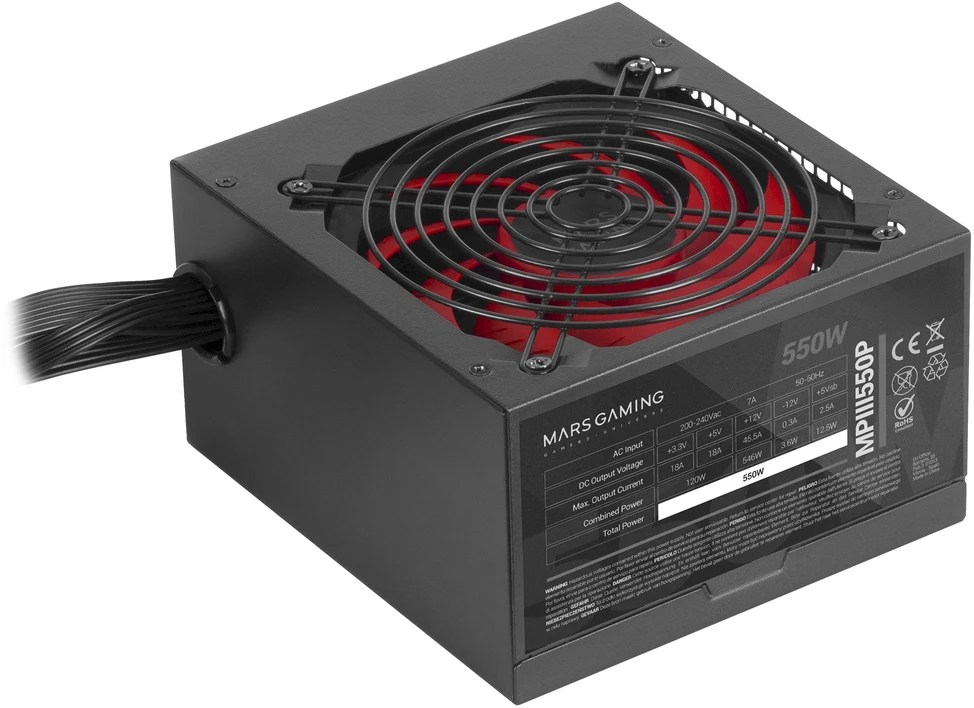

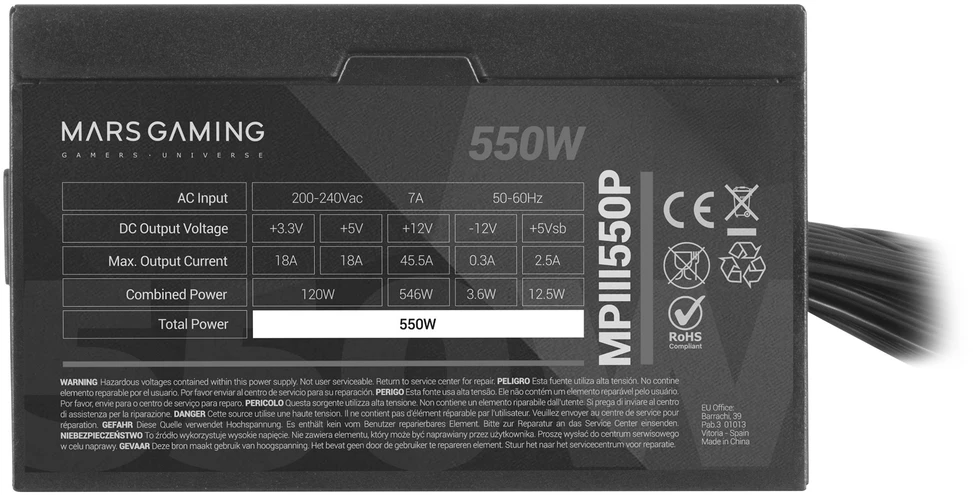

Mars Gaming MPIII550P Power Supply Unit 550 W 24-pin ATX ATX / juodas

Mars Gaming MPIII550P is a 550 W ATX power supply unit with 5-year warranty , DC-DC technology , AI-RPM fan control , and safety systems including OVP, UVP, OCP, OPP, and SCP.

Features

• 5-year warranty
• Silent AI-RPM technology with IC control and 120 mm FDB fan
• DC-DC technology and SMD technology
• Advanced safety systems: OVP, UVP, OCP, OPP, SCP
• 99% DIGITAL APFC efficiency and +85% electrical efficiency
• Long, flat black cables for easier installation

Technical Specifications

• Model: MPIII550P
• Product type: Power supply unit
• Purpose: PC
• PSU form factor: ATX
• Cabling type: Non-Modular
• Cooling type: Active
• Fan diameter: 12 cm
• Number of fans: 1 fan
• Fan location: Top
• Noise level: 14 dB
• On/off switch: Yes
• Certification: ATX12V
• Compliance certificates: CE, RoHS
• Warranty: 5 years

Design

• Technology: SMD
• Components: Grade-A components
• PCB: Double-layer fiberglass PCB
• Cables: Long, flat black cables

Power

• Total power: 550 W
• AC input voltage: 220 - 240 V
• AC input frequency: 50/60 Hz
• Input current: 7 A
• Power Factor Correction (PFC) type: Active
• Efficiency: 85%
• Combined power (+12V): 546 W
• Combined power (+3.3V): 120 W
• Combined power (+5V): 120 W
• Combined power (-12V): 3.6 W
• Combined power (+5Vsb): 12.5 W
• Max output current (+12V): 45.5 A
• Max output current (+3.3V): 18 A
• Max output current (+5V): 18 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 2.5 A
• Protection features: OVP, UVP, OCP, OPP, SCP
• Digital APFC efficiency: 99%
• Electrical efficiency: +85%

Connectors

• Motherboard power connector: 24-pin ATX
• EPS power connector: 4+4 pin
• PCI Express power connectors: 1 x 6+2 pin
• SATA power connectors: 3
• Peripheral (Molex) power connectors: 2 x 4-pin

Dimensions and Weight

• Width: 150 mm
• Depth: 145 mm
• Height: 85 mm
• Weight: 1.25 kg
• Package width: 124 mm
• Package depth: 237 mm
• Package height: 205 mm
• Package weight: 1.12 kg
