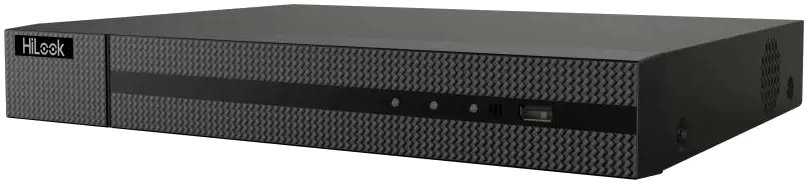

HiLook Powered by HIKVISION NVR-104MH-C/4P(D)

HiLook NVR-104MH-C/4P(D)

Recording device for 4 IP cameras with PoE power support (max. 50 W, IEEE 802.3af/at). Allows combinations of different resolutions up to 8 Mpx and bitrate up to 80 Mbps. Support live preview, storage and playback of the connected camera. The device also supports third-party cameras and H.265+ decoding to save up to 75% of data volume. There is one SATA hard drive bay with up to 8 TB of capacity.



BASIC SPECIFICATIONS

Number of channels: 4
Supported resolutions: 8 Mpx, 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Ports: 1× HDMI, 1× VGA, 4× RJ-45 (PoE 802.3af/at), 1× 10/100 Mbps RJ-45, 1× audio input (RCA), 1× audio output (RCA), 2× USB 2.0
Wireless connectivity: no
HDD: 1× SATA (max. 8 TB)
PoE support: yes, 802.3 af/at
Dimensions: 265 × 225 × 48 mm
Weight: ≤ 1 kg
