„Cooler Master“ MPW-5001-ACAAG-NL maitinimo blokas 500W 80 Plus Gold

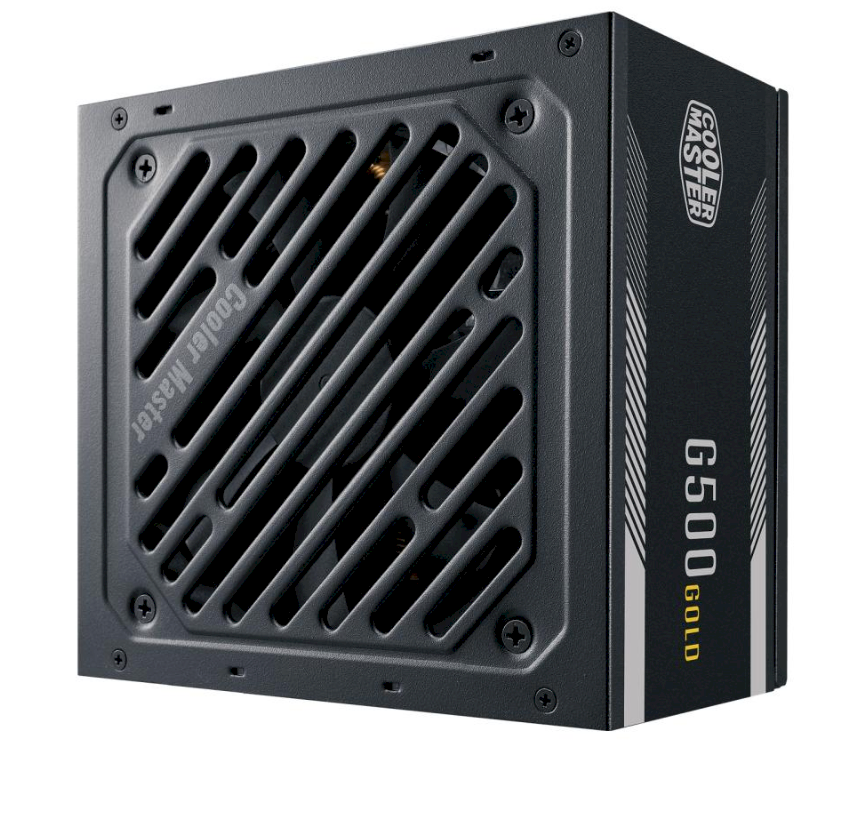

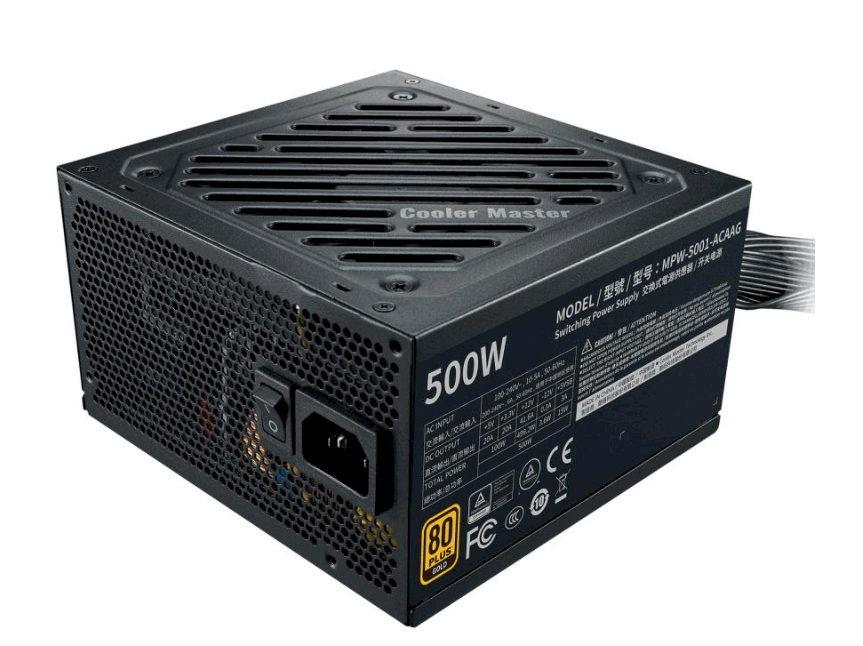

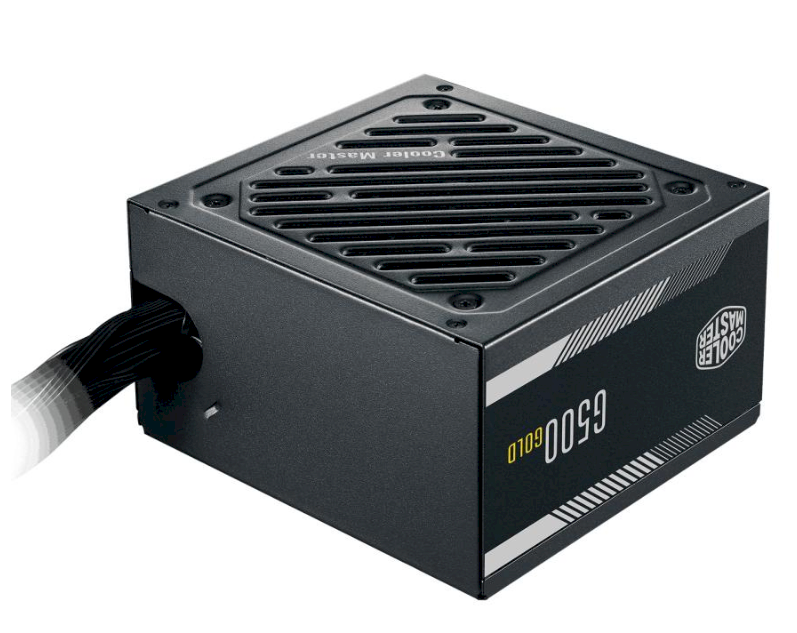

The Cooler Master G500 Gold (model MPW‑5001‑ACAAG‑NL) is a reliable 500 W ATX power supply unit designed for desktops and general PC builds that demand efficient and stable power delivery . It carries an 80 PLUS Gold certification , delivering up to ~90 % efficiency under typical loads and helping reduce energy waste and heat generation. Equipped with a 120 mm HDB (Hydraulic Dynamic Bearing) fan , it provides effective cooling with relatively low noise. The PSU uses fixed (non‑modular) flat black cables and supports full ATX connectivity including 24‑pin ATX, EPS (CPU) 8‑pin/4+4‑pin, 2 × PCIe 6+2‑pin, 6 × SATA, and 3 × Molex connectors — suitable for mainstream systems with discrete graphics, multiple storage drives, and standard motherboard power requirements. The unit meets the ATX 12V V2.52 specification and includes multiple protection mechanisms (OVP, UVP, OPP, OTP, SCP, OCP) for safer operation. A 5‑year manufacturer’s warranty backs its reliability.

Technical Specifications:

• Total Power: 500 W

• Efficiency Rating: 80 PLUS Gold (~90 % typical)

• Form factor: ATX (ATX 12V V2.52)

• Cooling: 1 × 120 mm HDB fan (active cooling)

• Input Voltage: 100–240 V AC, 50–60 Hz

• PFC: Active PFC

• Connectors:

  • 24‑pin ATX

  • EPS 8‑pin + 4+4‑pin CPU

  • 2 × PCIe 6+2‑pin

  • 6 × SATA

  • 3 × 4‑pin Molex

• Protection features: OVP, UVP, OPP, OTP, SCP, OCP

• MTBF: >100 000 hours

• Operating temperature: ~0–40 °C

• Warranty: 5 years

• Color: Black
