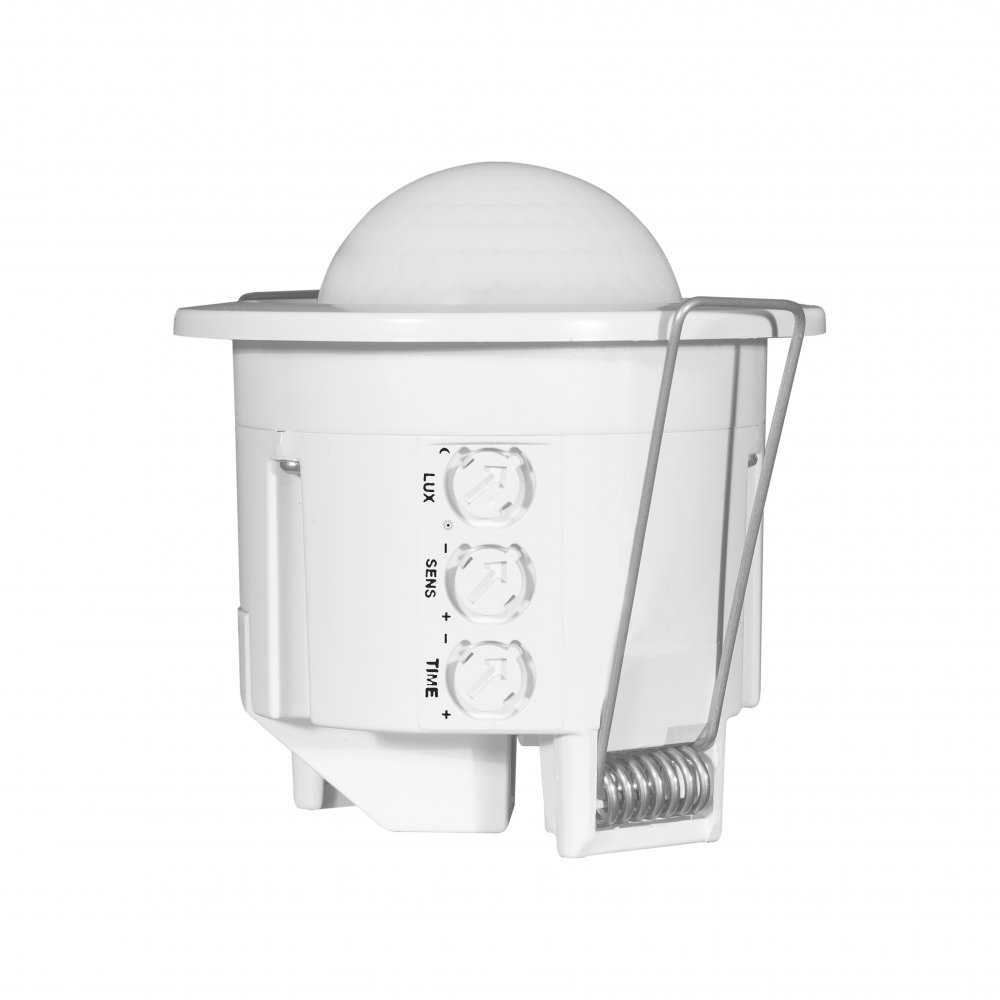

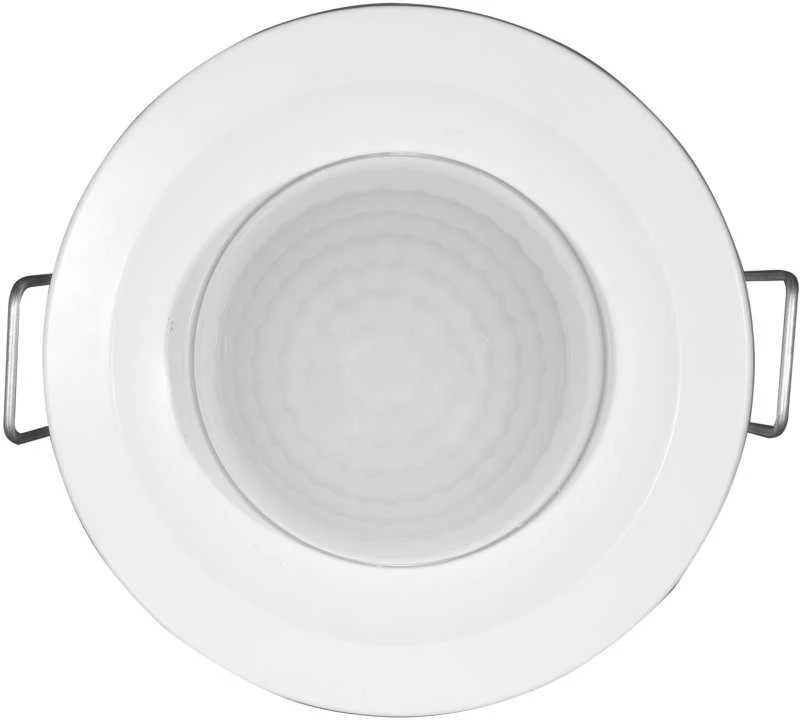

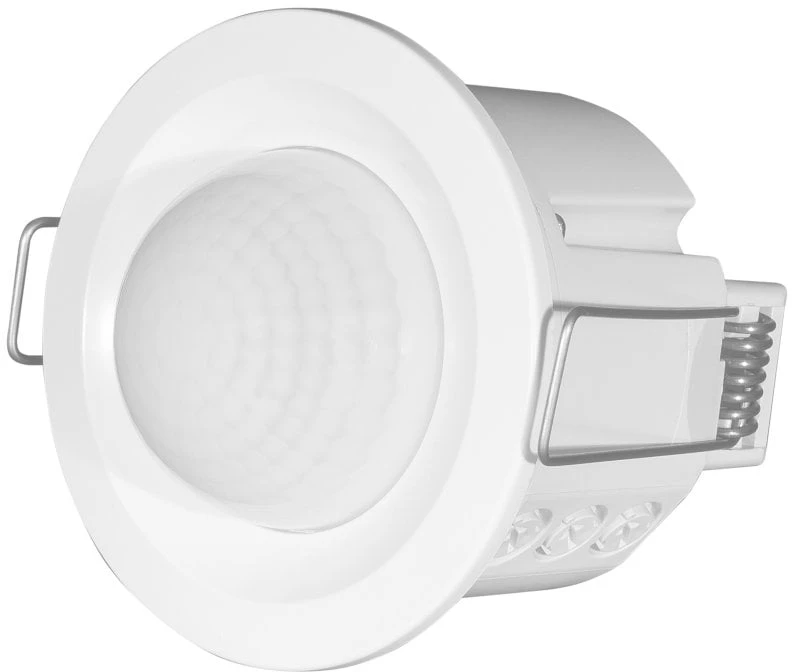

Elektrobock Ceiling motion sensor IR24A Klasik

It is designed for installation in suspended ceilings (e.g. plasterboard). Features of the IR24A Klasik ceiling sensor: Czech product New ZERO CROSS RELE technology used for switching relay contacts when 230VAC voltage passes through zero. This feature extends the life of the contacts of the relay used and also has a positive effect on the life of the controlled device. also suitable for LEDs (max. 100 W or 3 pcs) switching time from 5s to 10 min. light sensitivity (10Lux to 2000Lux) detection range up to 10 m (up to 24°C) Extended warranty 3 years Technical parameters Power supply 2 mains Installation method ceiling mounted Sensor type wired Type of use indoor Detection angle 360° Detection distance 0 m to 10 m Adjustable time 5 s to 10 min Light sensitivity 10 Lux to 2000 Lux Installation without zero wire No Degree of protection IP20 Operating temperature 0 °C to 40 °C Suitable for LED Yes (max. 100 W or 3 pcs) Load capacity 2300 W Imax 10 A Switching element relay
