Bosch GDI50-65D Solo, CT

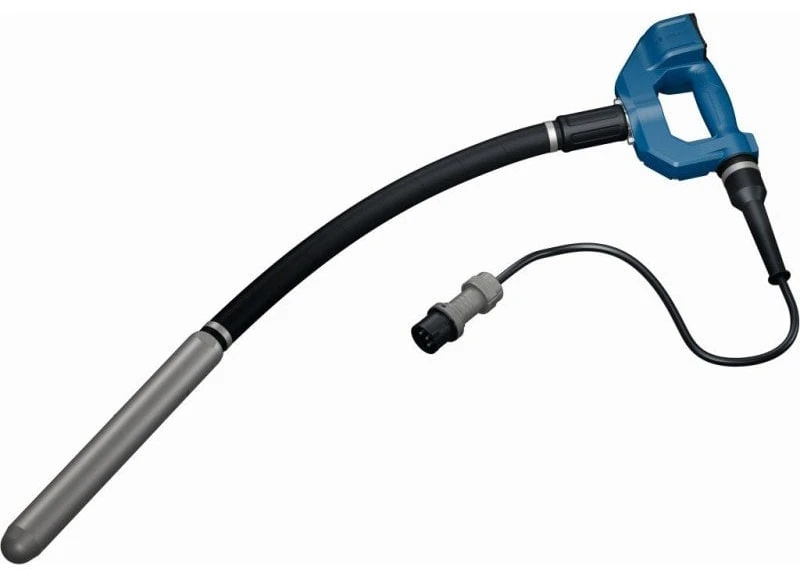

The modular cordless high-frequency concrete vibrator of the Bosch PRO GDI series (models PRO GDI50-65D and PRO GDI59-65D) with ergonomic D-shaped handle is a highly efficient cable-free solution designed specifically for flat concrete work. The innovative design with the motor integrated directly into the head eliminates the need for external inverters and reduces the risk of tripping over cables on site. The system delivers stable performance with a frequency of up to 11,600 vibrations per minute unloaded (over 10,600 vibrations per minute under load) and a strong centrifugal force of up to 3,000 N, ensuring perfect air bubble removal and maximum material strength. With a short 0.65m hose, this model is ideal for processing slabs, floors or concrete slabs. In addition, the separate damping handle significantly reduces the transmission of vibrations to the operator's arms, guaranteeing high comfort even when working for long periods.

Specifications
Equipment type: Cordless High Frequency Submersible Concrete Vibrator

Tool design: Ergonomic D-shaped handle (separated from the motor to minimize vibration)

Rated vibration frequency: 11,600 vibrations/min (no load) / over 10,600 vibrations/min (under load)

Maximum centrifugal force: 3,000 N

Flexible hose length: 0.65 m (optimized for flat applications and base plates)

Optional vibrating head diameters: 50 mm / 59 mm (depending on the specific variant for optimal compaction of large-volume concrete applications)

Degree of protection and protection: IP67 (high water and dust resistance), integrated thermal overload protection

Compatibility and system: Fully compatible with the PRO GPU18V2DI cordless drive unit and the PRO GBP100 backhoe support system

Noise level: Sound pressure 82 dB(A), sound power 90 dB(A) (uncertainty K = 3 dB)

Tool dimensions: 1 212 × 98 × 238 mm (length including hose × width × height)
