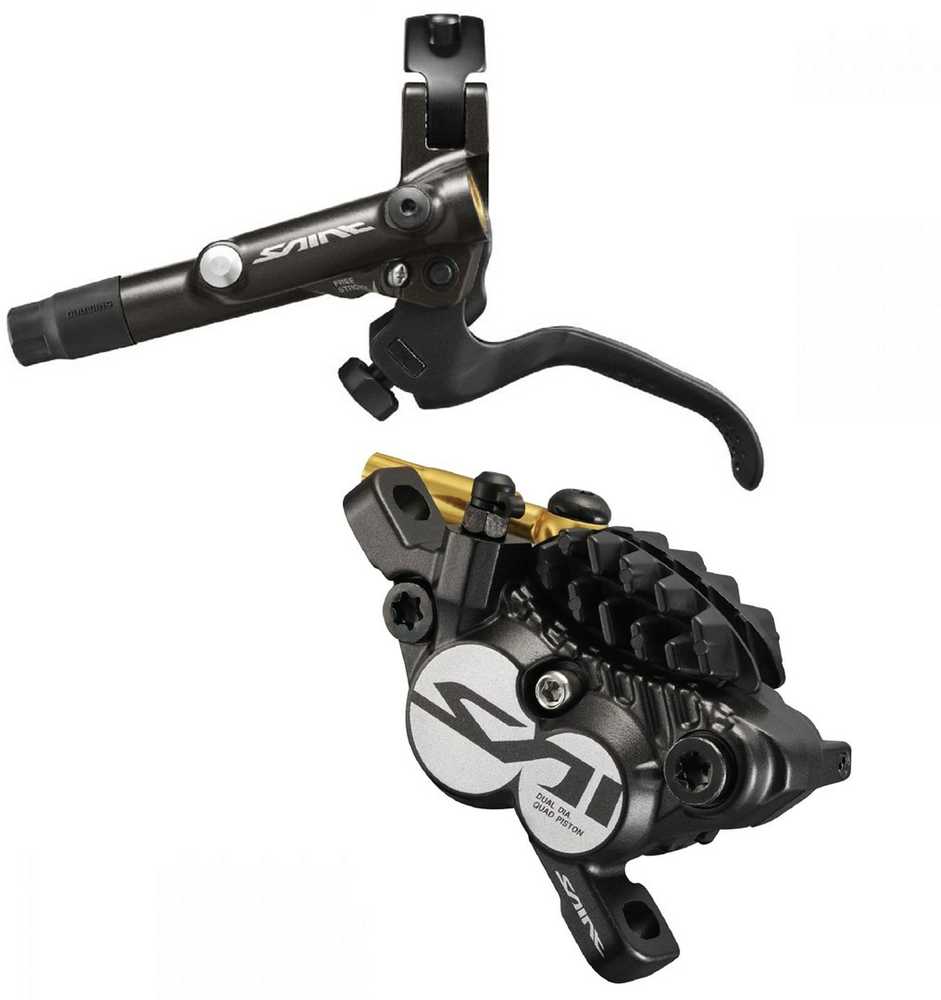

Shimano BL-M820/BR-M820 H03C front set 1000mm

SHIMANO SAINT- hydraulic disc brake lever - I-SPEC B, clamp - SERVO WAVE Action

The best downhill racers rely on SHIMANO SAINT brakes for maximum stopping power and fine modulation, whatever the conditions. For reliable braking on even the most challenging terrain, the BL-M820's textured levers offer tool-free range of motion adjustment, deadlift adjustment and I-SPEC B compatibility.

Ergonomic non-slip lever
Lighter Servo Wave short lever
Tool-free stroke and free stroke adjustment
Suitable for I-spec
Weight: 103.2 g

Model BL-M820-B
SAINT M820 Series
Average weight 104g
Brake hose (set) SM-BH90-SBLS
Brake type Hydraulic disc brakes
Hose connection Direct
Free stroke adjustment
Funnel venting
Design for J-Kit
Lever size (fingers) 2
Fluid SHIMANO mineral oil
Recommended brake calipers BR-M820


SAINT- ICE TECHNOLOGIES - 4 pistons - hydraulic disc brake caliper

The SAINT hydraulic disc brake is the ultimate downhill brake with a rigid caliper, 4 ceramic pistons and an integrated ICE TECHNOLOGIES heat dissipation system.

ICE TECHNOLOGIES controlled heat dissipation
Highly efficient calipers with 4 ceramic pistons
Easy and clean venting
One-way fluid line in the caliper
Funnel for venting
Plates: H01A polymer/H03C metal
Weight: 306 g (polymer inserts with cooler)

Model BR-M820
SAINT M820 Series
Average weight 306g
Caliper compatible with ICE TECHNOLOGIES brake pads
Brake hose (set) SM-BH90-SBLS
Brake type Hydraulic disc brakes
Caliper mounting bolts_Anti-release locking ring
Caliper mounting bolts_Tool size 5 mm
Banjo hose connection
Post Mount
ONE WAY BLEEDING
Mounting Plate Plate Axis
Piston 4
Recommended Brake Levers BL-M820
Recommended Brake Disc SM-RT99 SM-RT86
Design for J-Kit
Fluid Mineral oil SHIMANO
Compatible brake disc size_140 mm (SS) ?
Compatible brake disc size_160 mm (S) ?
Compatible brake disc size_180 mm (M) ?
Compatible brake disc size_203 mm (L) ?

Pads
H03A-RF Polymer (with cooler)
H03C-MF Metal (with cooler)
