Power and durability in a lightweight design

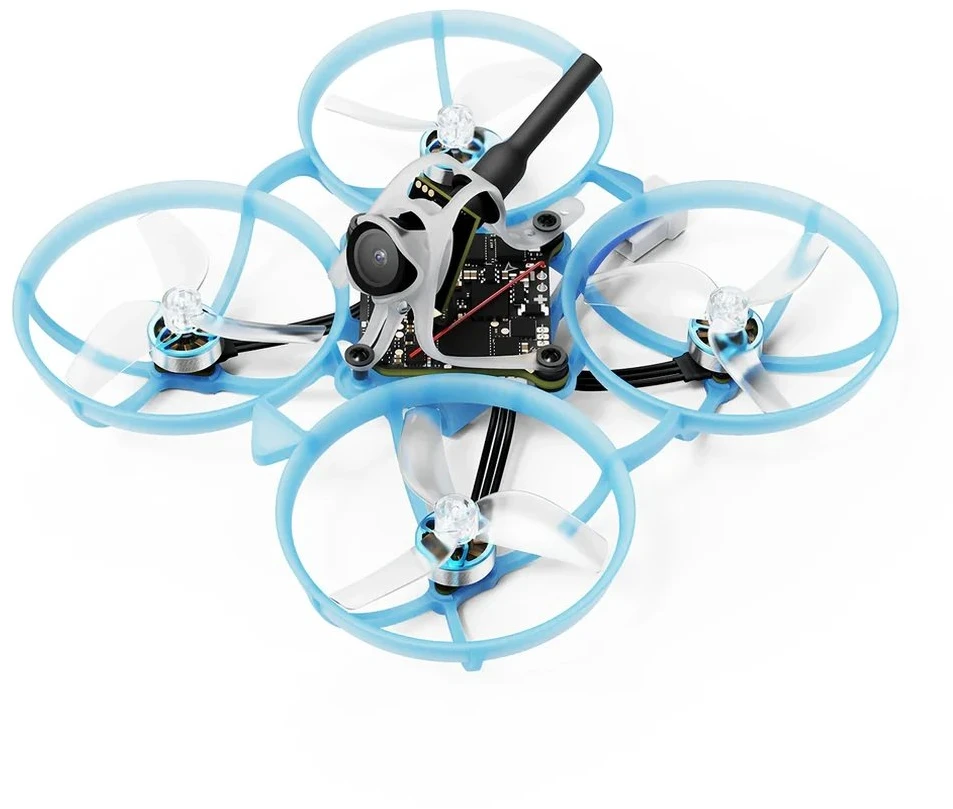

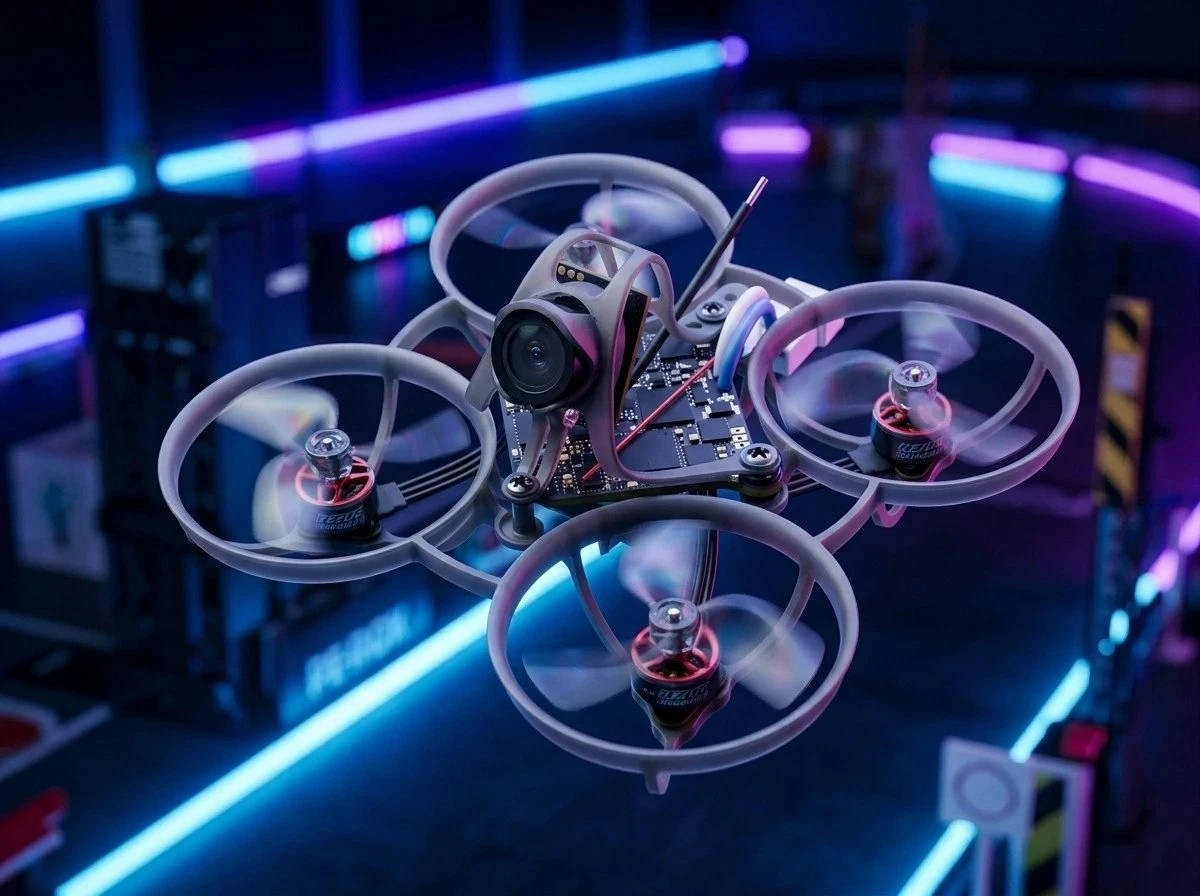

Air75 II Brushless Whoop Quadcopter is a
whoop racing drone
for indoor flying and short FPV runs. It combines an
ultralight design
with a reinforced build, so it stays agile while also coping better with bumps and obstacles. It is a good choice for pilots who expect quick stick response and stable performance in tight spaces.
Key advantages
-
Three flight configurations
– choose the version to suit your flying style: racing, technical flying or smooth freestyle.
-
0802 brushless motors
– enjoy rapid acceleration and better throttle control.
-
Matrix 5IN1 II FC
– get a stronger control system with
12 A
continuous ESC.
-
3-point mounting
– the frame withstands impacts better and reduces the risk of damage to the electronics.
-
Reinforced 1.0 mm PCB
– the structure performs more reliably during frequent landings and collisions.
-
Adjustable camera angle 15°–45°
– set the view for calm cruising or dynamic chasing.

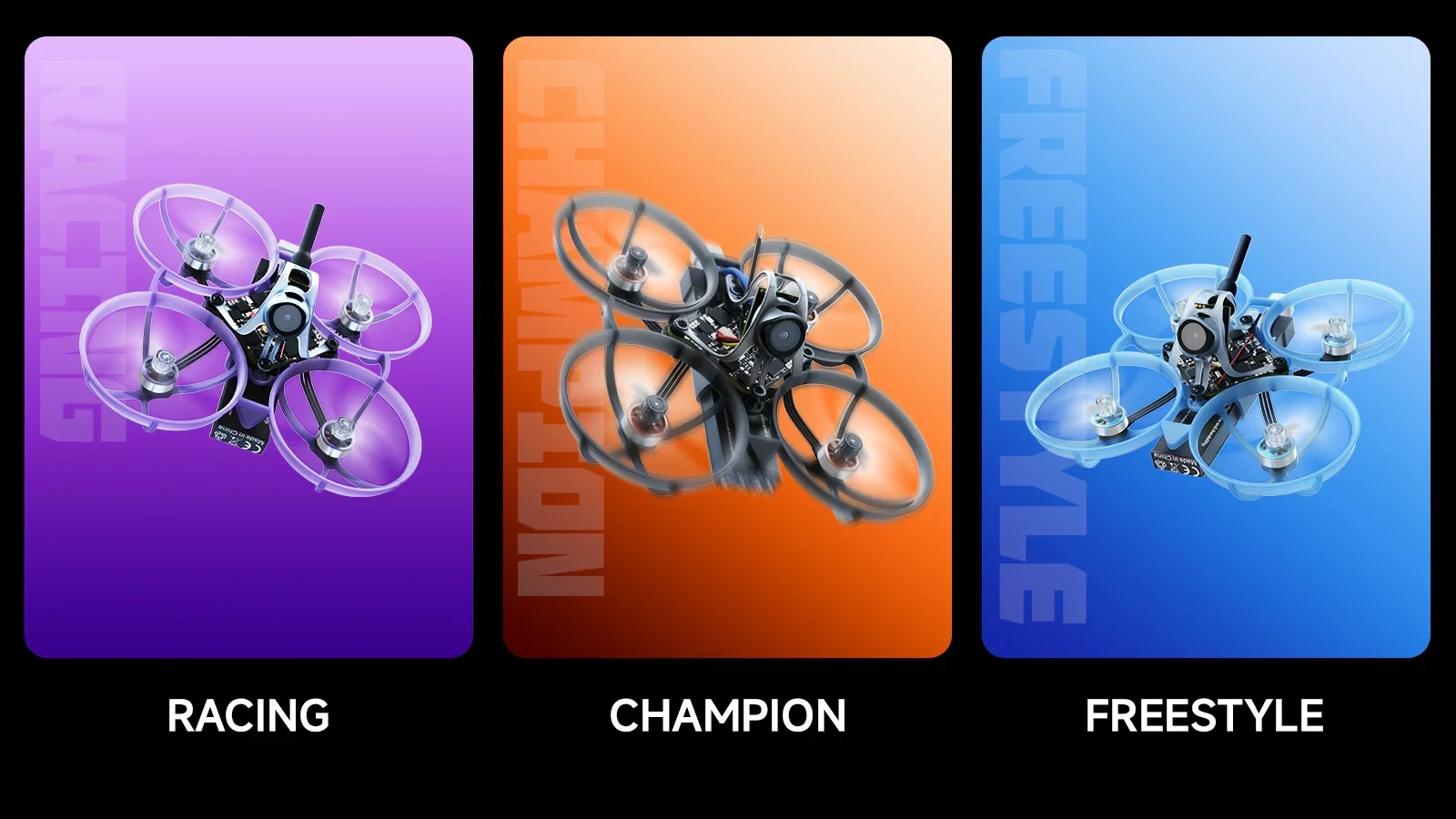

Three drive versions
The model comes in three variants:
Champion
,
Racing
and
Freestyle
. Each has a different motor and propeller combination, so the drone responds according to its intended use. The Champion version focuses on maximum thrust, Racing on sharp throttle response, and Freestyle on smoothness and energy efficiency.

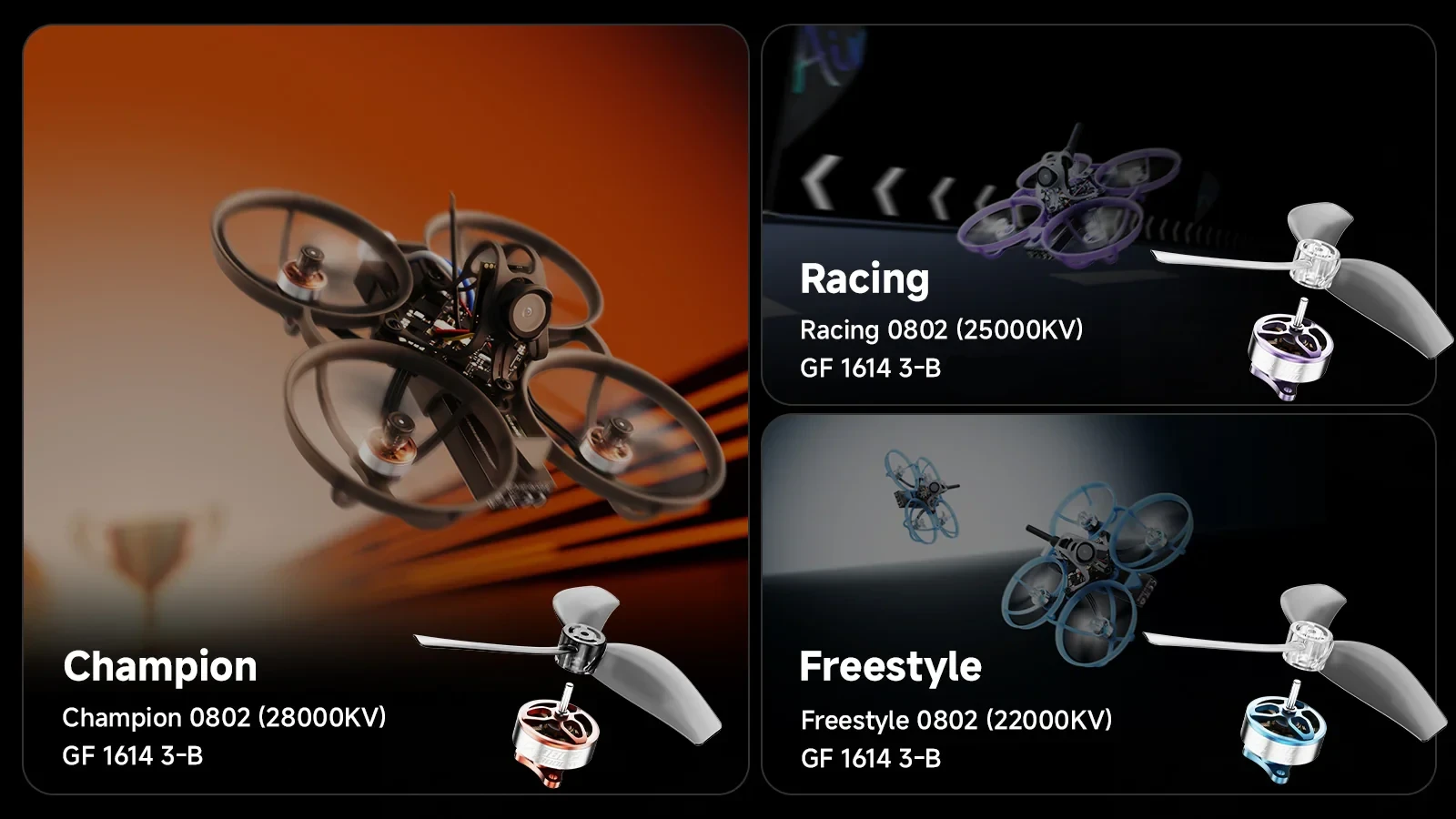

0802 brushless motors
The
0802 Brushless Motors
used in the series feature matched magnetic solutions and windings, which translate into more efficient power delivery and excellent response to changes in RPM. In the Champion version, the set with
Champion 0802 (28000KV)
motors, dual ball bearings and
GF 1614 3-B
propellers delivers the highest thrust, while the Racing
(25000KV)
and Freestyle
(22000KV)
versions with brass bushings offer stable operation and long flight time.
More stable electronics
The
Matrix 1S 5IN1 II FC
combines the flight controller, receiver and ESC in one compact design.
12 A
of continuous current provides headroom for sudden manoeuvres, and the
3-point mounting
reduces the transfer of impact energy to the board. As a result, the equipment stays flight-ready for longer, and the user spends less time on repairs after a crash.

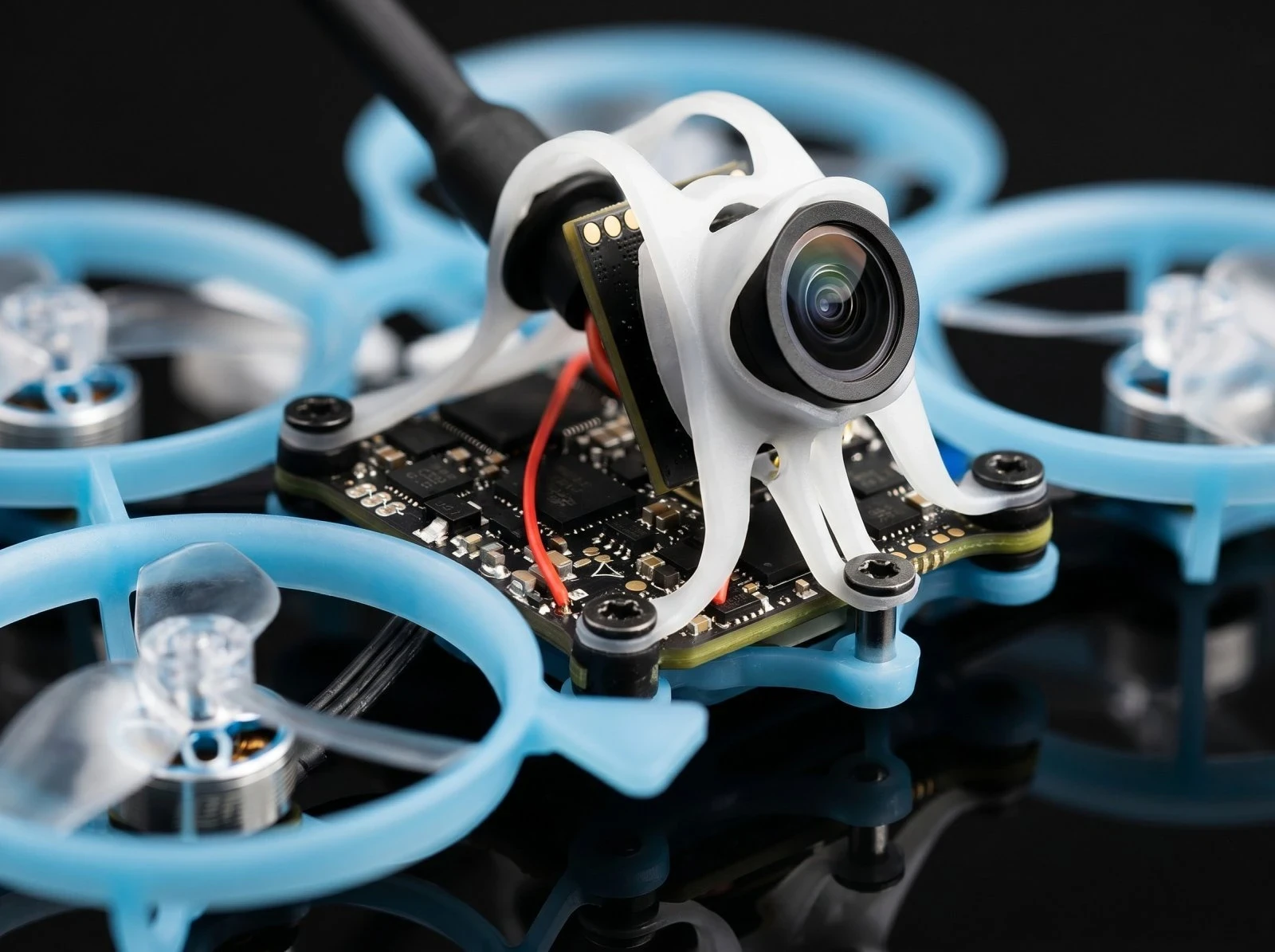

Reinforced camera guard
The
Air II Canopy
uses improved materials and extra reinforcement in critical areas. The revised profile improves protection for the
C03
camera during contact with obstacles, and the angle adjustment from
15° to 45°
makes it easier to match the view to your flying style. It is a practical solution when you want to move faster from indoor training to more dynamic flights.

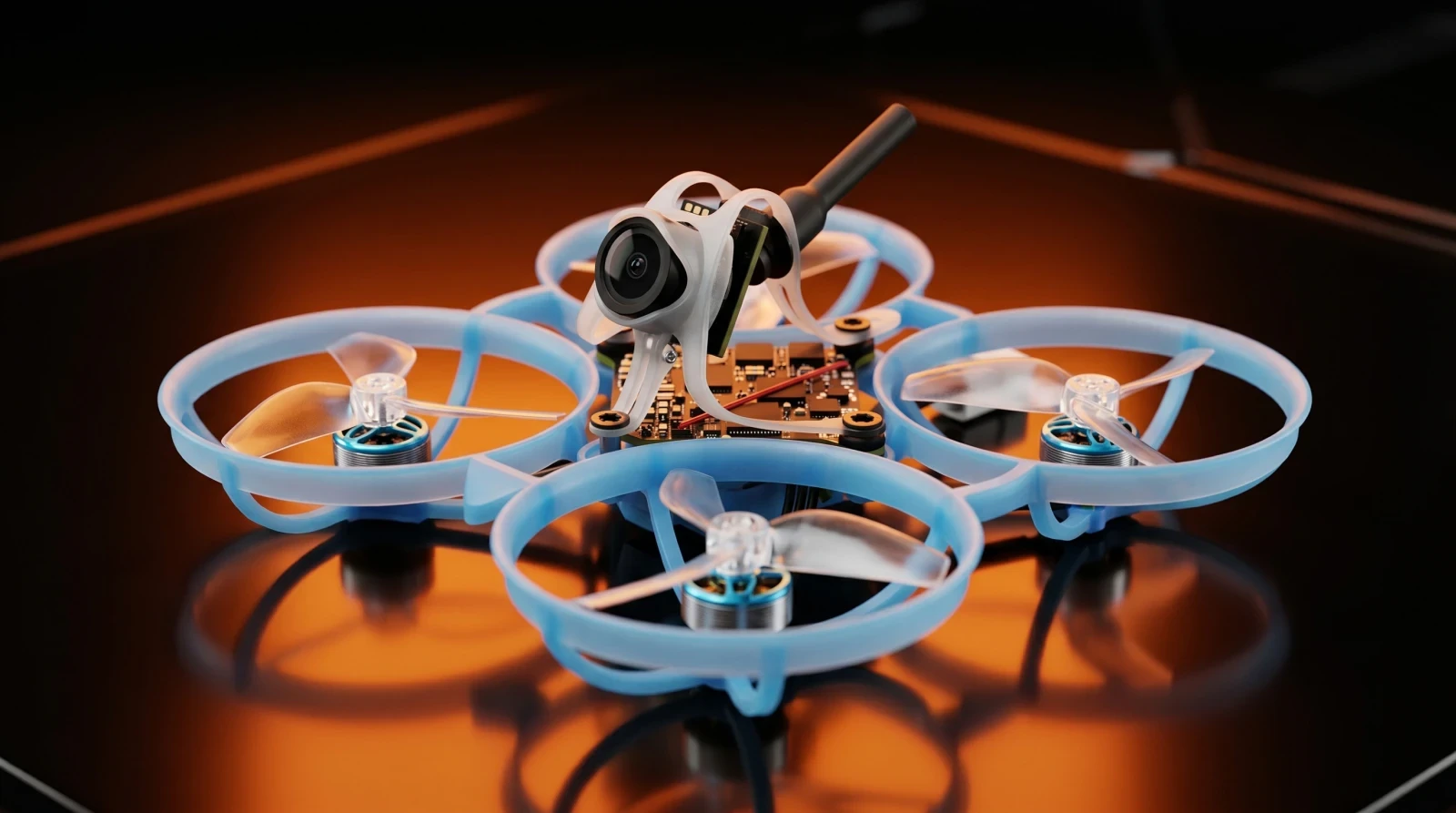

Frame for frequent impacts
The dedicated
Air75 II
frame has a wheelbase of
75mm
. It features optimised ducts, stiffening connectors and a PP plastic blend that provides greater resistance to loads during hard landings and collisions. The new geometry delivers an excellent thrust-to-weight ratio, allowing the drone to build speed instantly and remain stable in tight corners on the course.
Choose your style
Air75 II offers three distinct flight personalities optimised for performance and longer fun.
Champion
delivers powerful dynamics and flight time of up to
6:50
,
Racing
guarantees precise, agile control for
7:00
minutes, and the
Freestyle
version allows the smoothest, most stable flights lasting up to
7:30
minutes on a single pack.
Package contents
Air75 II Brushless Whoop Quadcopter
-
1 * Air75 II Brushless Whoop Quadcopter
-
4 * GF 1614 3-B propellers
-
4 * M1.4*2 screws
-
1 * Air II Canopy
-
2 * M1.4*5 self-tapping screws
-
4 * M1.4*4 self-tapping screws
-
2 * H0.8 damping balls
-
1 * Type-C to SH1.0 adapter board
-
1 * SH1.0-4Pin adapter cable
|
Parameter
|
Champion
|
Racing
|
Freestyle
|
|
Weight
|
20.2g
|
20.9g
|
21.3g
|
|
Frame
|
Air75 II
|
|
Antenna
|
Whip (bat type)
|
Copper pipe
|
|
Wheelbase
|
75mm
|
|
Canopy
|
Air II Canopy
|
|
Flight controller (FC)
|
Matrix 1S 5IN1 II
|
|
ESC
|
1S 12A
|
|
VTX (video transmitter)
|
Integrated 5.8G 25mw~400mw
|
|
Receiver (RX)
|
Integrated Serial ELRS 2.4G
|
|
Camera
|
C03
|
|
Motors
|
Champion 0802 (28000KV) - dual ball bearings
|
Racing 0802 (25000KV) - brass bushings
|
Freestyle 0802 (22000KV) - brass bushings
|
|
Motor connection
|
Soldered
|
JST1.25 3Pin connector
|
JST1.25 3Pin connector
|
|
Propellers
|
GF 1614 3-B
|
|
Flight time (with LAVA II 1S 480mAh battery)
|
6:50
|
7:00
|
7:30
|
|
Battery connector
|
BT2.0 U Cable Pigtail
|
|
Recommended battery
|
LAVA II 1S 480mAh/580mAh
|
