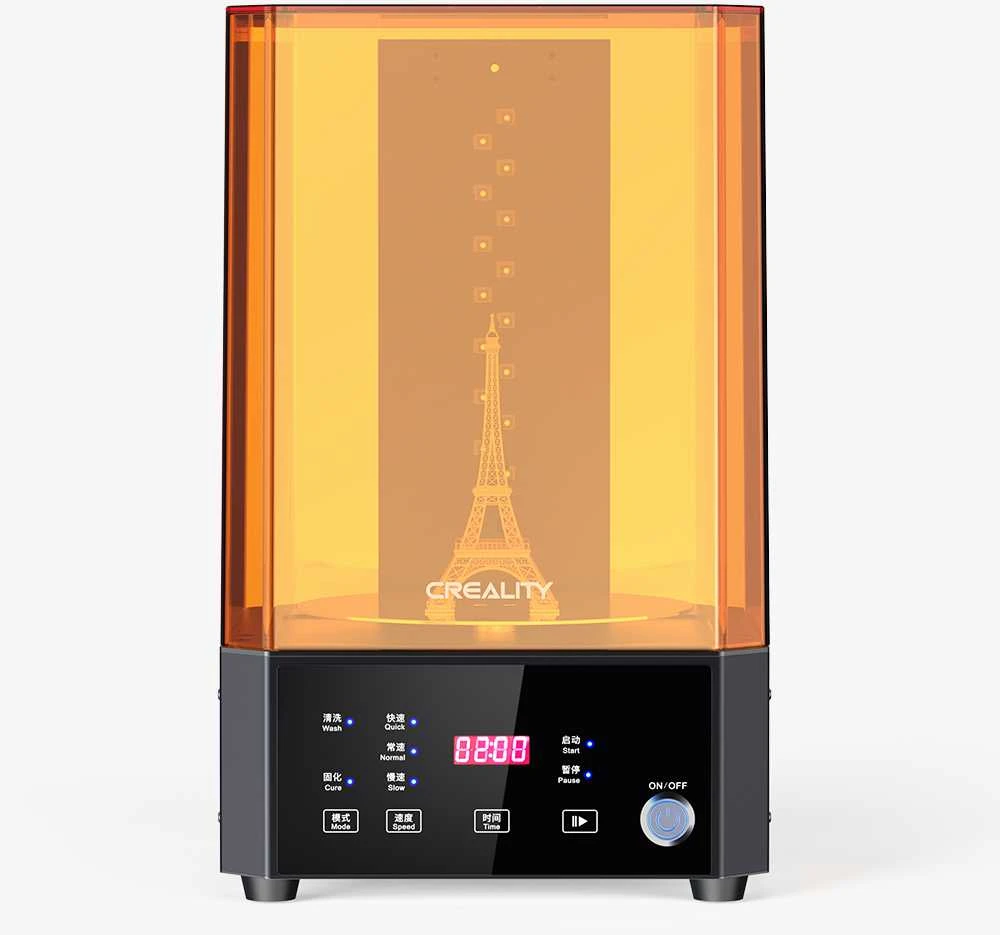

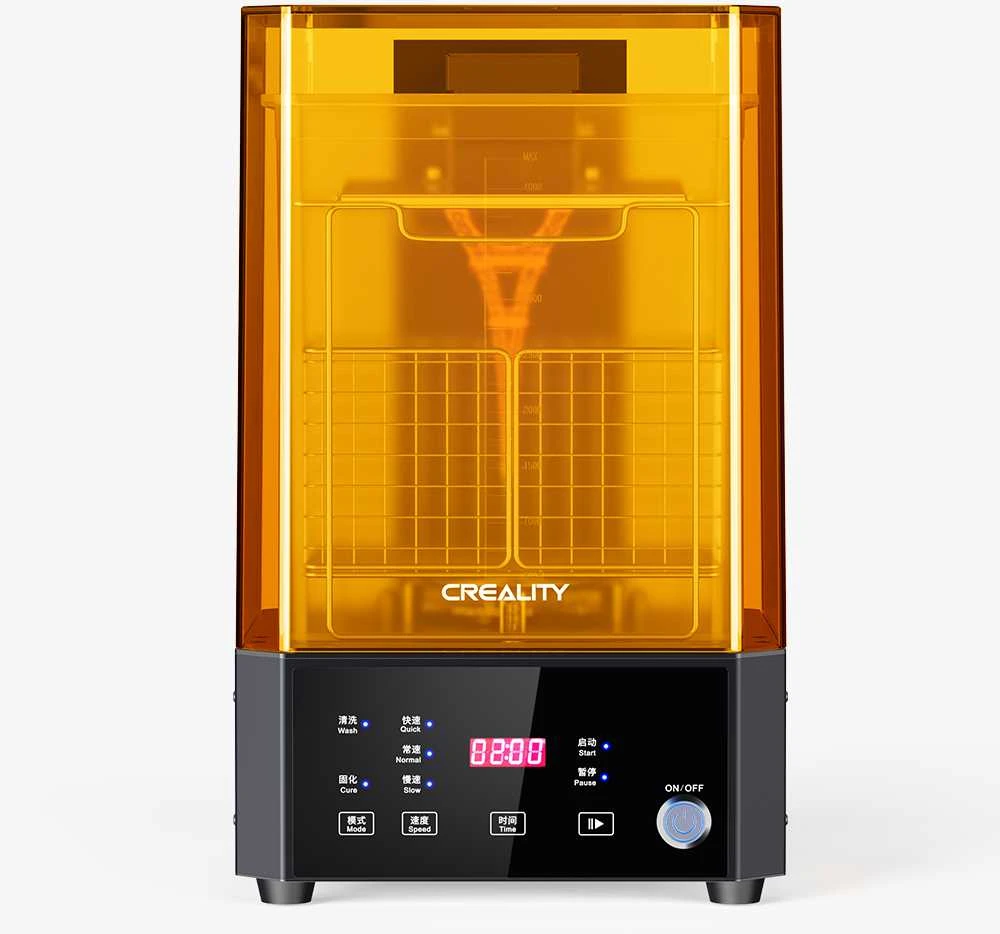

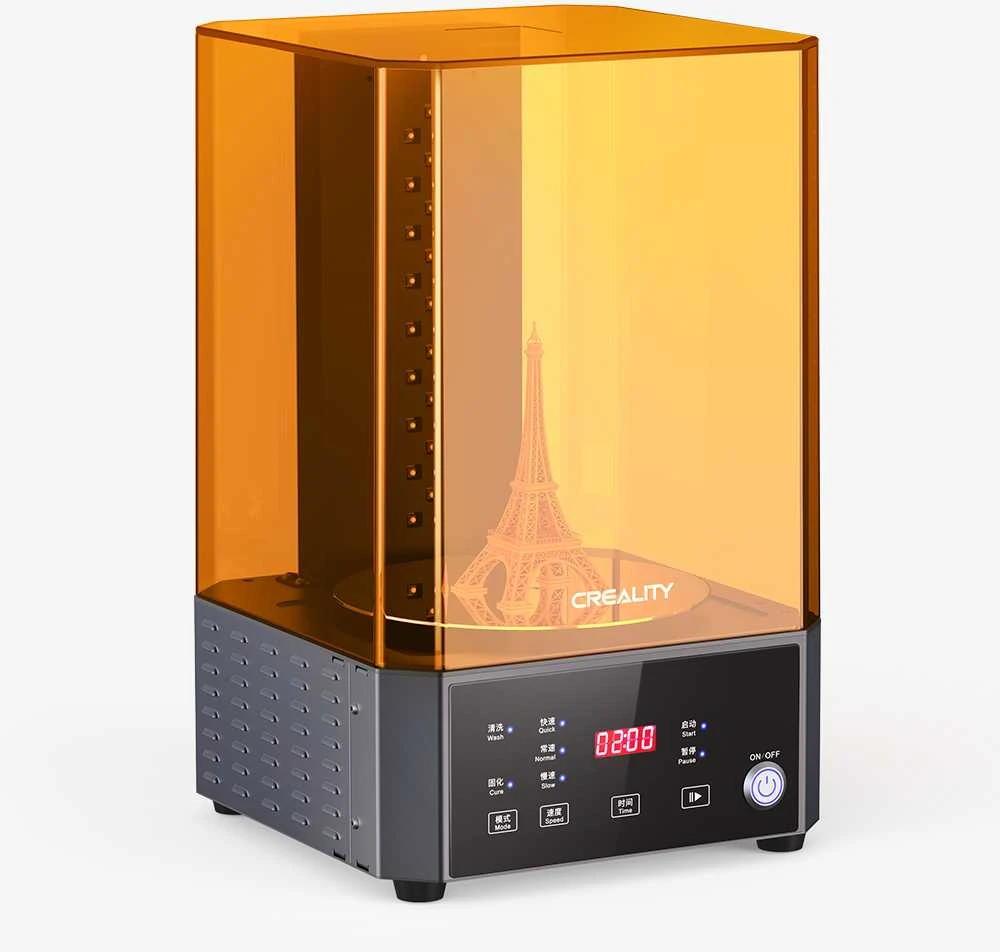

Creality UW-01 – Washing/Curing Machine

[embed]https://www.youtube.com/watch?v=kqlgndQ9DjM[/embed] [embed]https://www.youtube.com/watch?v=uxvzy8J6DQc[/embed] Creality UW-01 Washing and Curing Machine, all-in-one washing and curing machine, one step to finish the model post process. Features

• Dual-band UV light source
• Magnetic 360° rotatable platform
• Large-size washing container
• Adjustable three-gear speed
• 2-90min optional
• HD touch button

CREALITY UW-01 - WASHING/CURING MACHINE

Features

• Dual-band UV light source
• Magnetic 360° rotatable platform
• Large-size washing container
• Adjustable three-gear speed
• 2-90min optional
• HD touch button

Adjustable three-gear speed and 2-90min optional

With a three-gear speed mode, it includes washing and curing. The washing and curing time has 2-90min optional. Delicate models come from the curing and washing.

Strong wash mode:

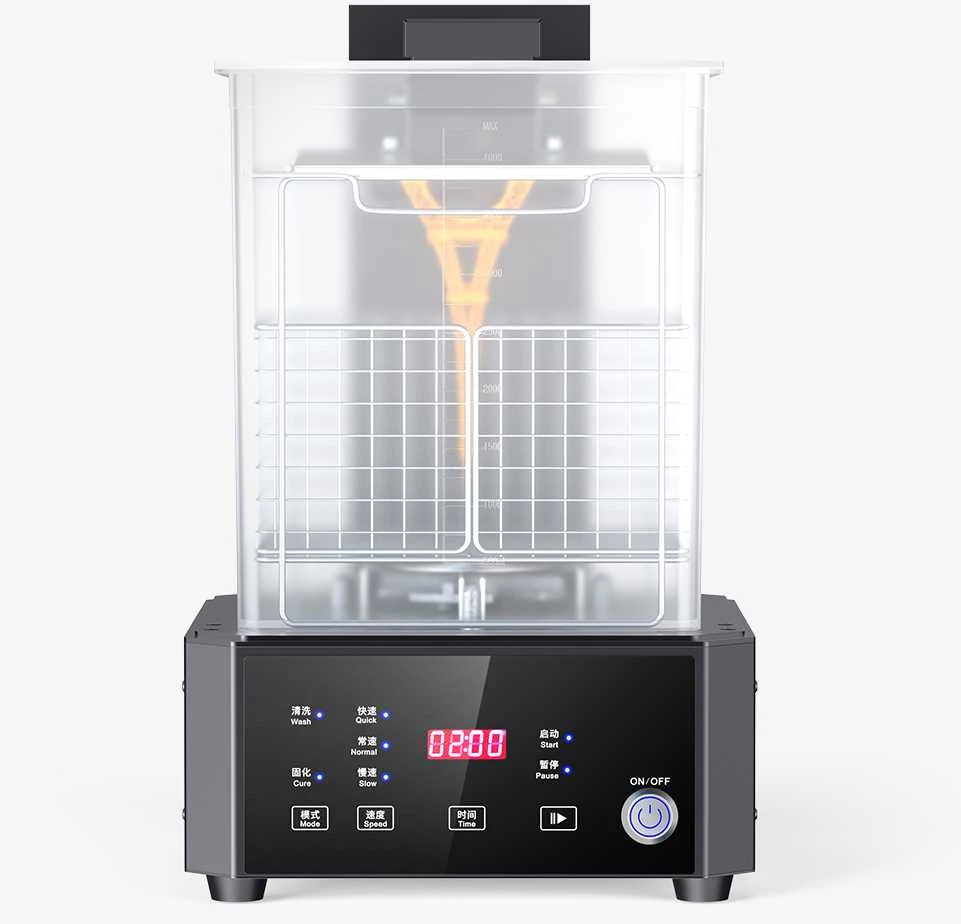

1 Flexible wash method: The model can be washed separately in the washing basket or together with bottom plates.

2 Large size sealed washing container: the UW-01 Washing and Curing Machine supports larger size models for cleaning. With a sealed container and lid, it avoids cleaning solution volatilization and also stores the cleaning solution for the repeated use.

3 Self-adjustable bracket: The water level to wash the model depends on the washing container size and model size.

Cure mode:

1 Double-row, and Double band UV lamp beads: With built-in LED beads(18 pieces of UV LED lights), the UW-01 Washing and Curing Machine is compatible with most resin printers. The double row 9-bead design with a higher irradiated area realizes quick curing and even irradiation for the larger model.

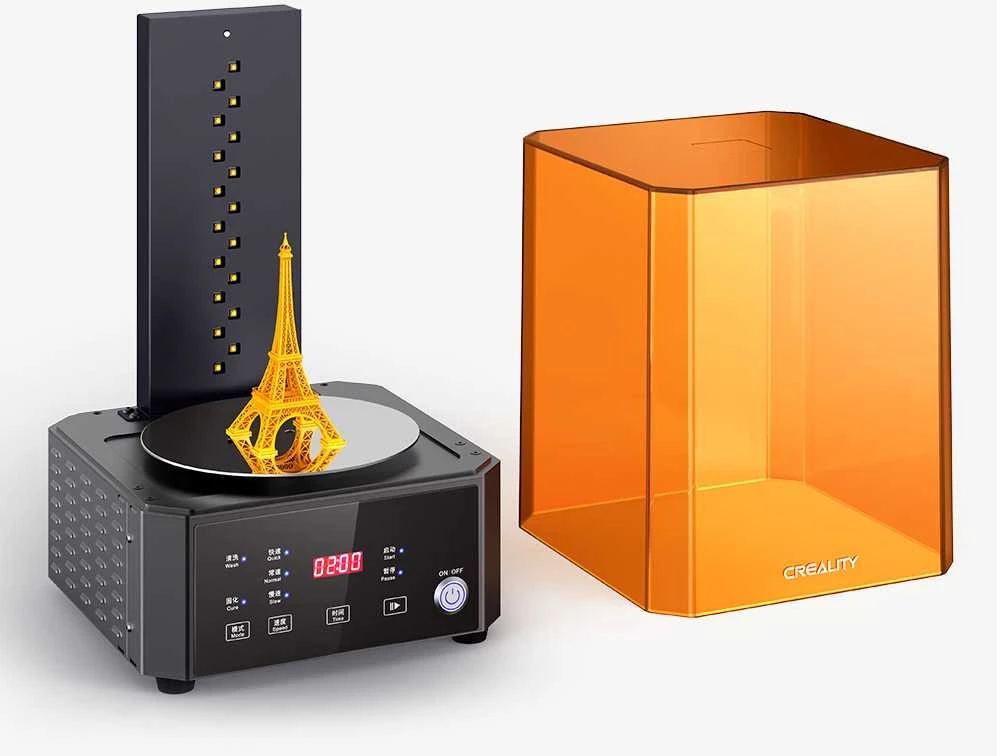

2 360° specular reflections curing rotating platform: 360° curing tray with magnetic force and reflective mirror make full use of the light source, which cures the model all the angles.

3 Remove the machine core, stop working automatically: Once the machine cover is removed during the curing process, the UW-01 Washing and Curing Machine will immediately suspend the curing, which avoids light source glare and reduces light pollution.

Product Parameters

• Model: UW-01
• Machine: Washing and Curing Machine
• Control method: Touch button, LED indicator
• Rated power: 96W
• Input voltage: 24V
• Curing and washing time: 2-90min
• Washing size: 170(L)x 120(W)x 160(H)mm
• Air-drying and curing size: ø165mm x 200mm
• Package size: 298x297x505mm
• Machine weight: 6,5kg
