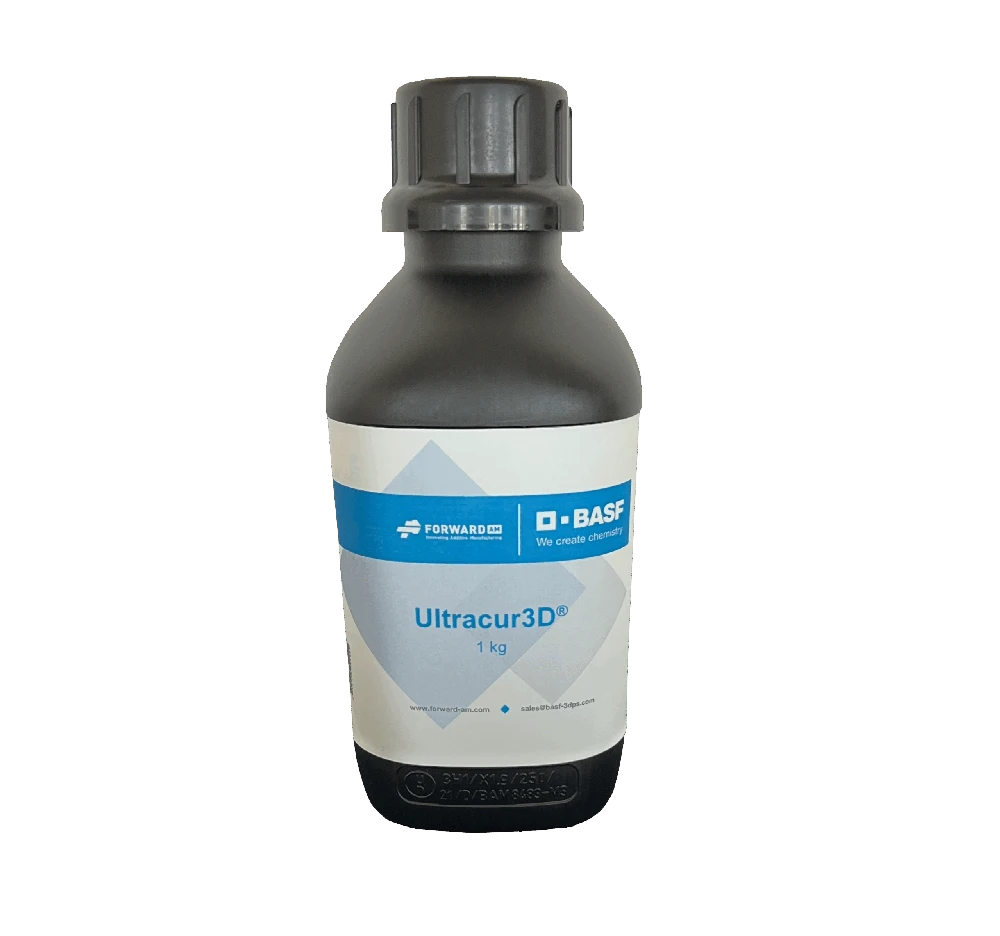

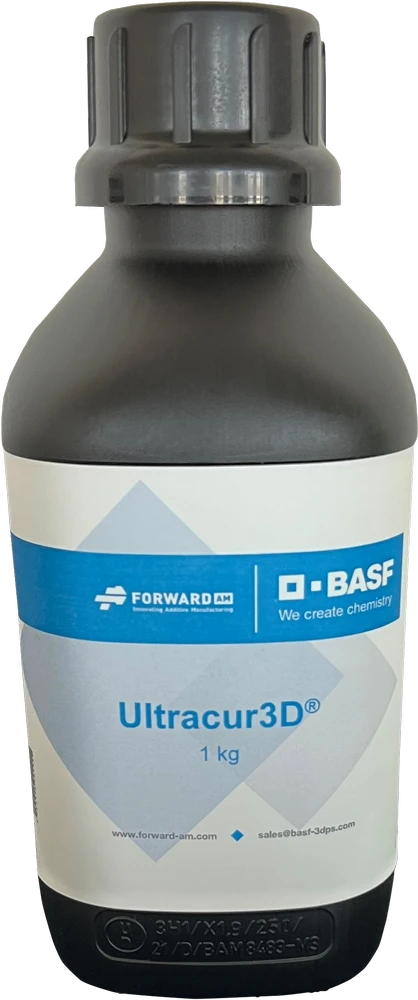

Ultracur3D EL 150 by BASF is a flexible resin for elastic applications with medium hardness. It offers very good elongation at break properties. The resin is perfect for elastic applications, including hinges, gaskets, and rubber-like prototypes.
Highlights:
Medium hardness (Shore 77 A)
Optimum combination of high strength, elongation at break and rebound
Ultracur3D EL 150
Ultracur3D EL 150 is a very versatile reactive urethane photopolymer for highly elastic applications that delivers medium softness (Shore 77 A). It provides an optimal combination of high torsional strength, good elongation at break, and long-term rebound.

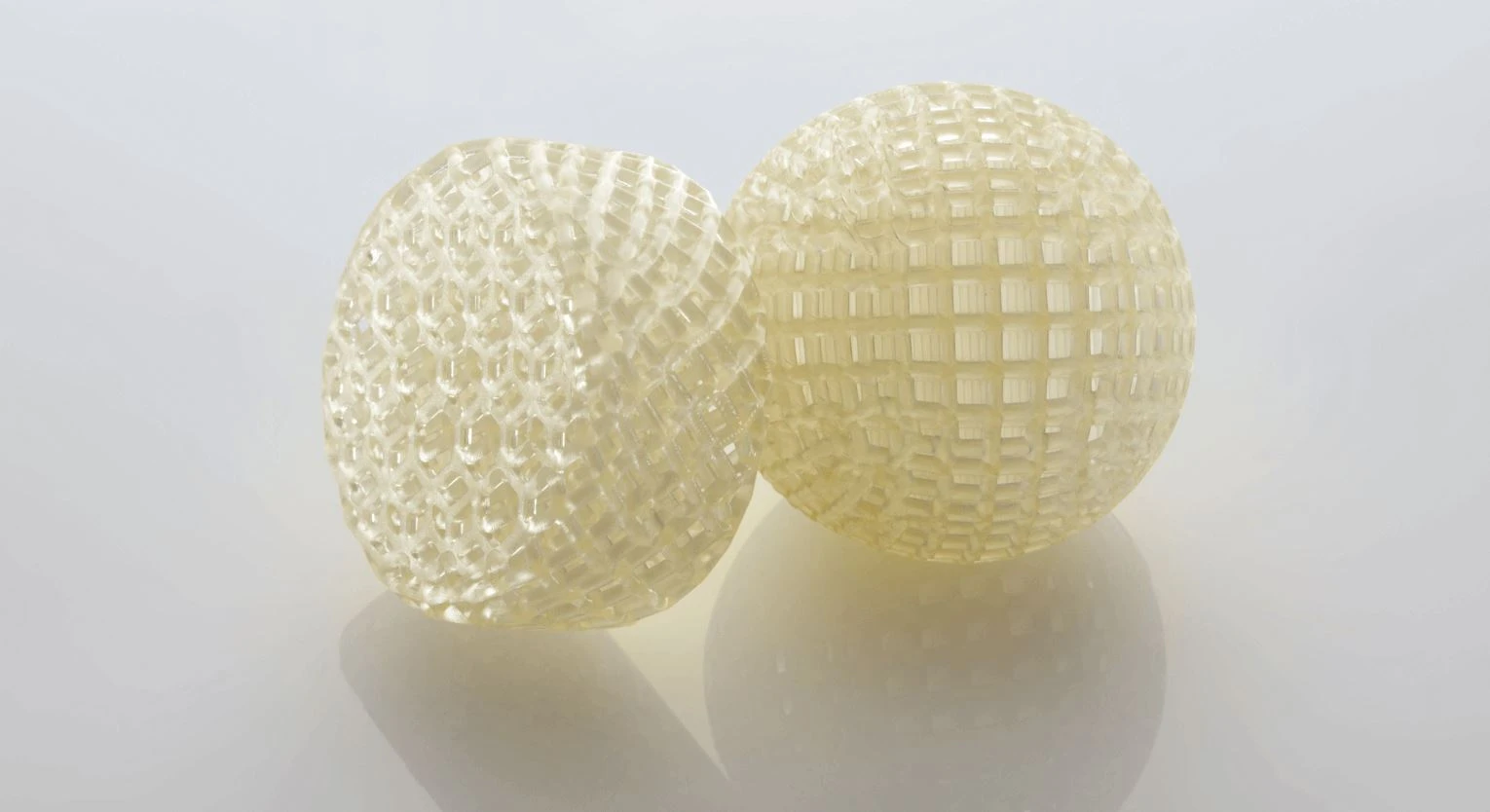

Example Applications
Footwear
Prototyping
Cushioning pads
Flexible grip
Material Properties
Rebound resilience: 28 %
Tear strength (Graves): 14 N/mm
Elongation at break: 182 %
Hardness: 77 A
