EVOLVEO StrongVision LTE MINI

- GSM model - 4G/LTE connection
- Remote data transfer and control via mobile apps
- Live preview /Sending to Cloud, Email, FTP
- Video up to 2K Full HD 30fps, photo up to 30mpx
- Colour 2.0" TFT Display - for easy operation
- MicroSD card support up to 256GB
- Power: 3×18650 Li-Ion 2500 mAh, replaceable battery
- Solar panel
- PIR sensing angle 60° / range up to 20m
- Night light - 4x IR LED 940nm
- FREE: CZ SIM card + Cloud

The EVOLVEO StrongVision LTE MINI photo trap is designed for situations where you need to keep an eye on what's happening remotely, but don't want to install a large and conspicuous device. Imagine having a cabin away from civilization, building materials on a property without electricity, or tracking the movement of wildlife in the woods - with this photo trap, you get the images instantly to your mobile app, email or FTP server. You don't have to go anywhere and check the status in person. As soon as there is movement of people, vehicles or animals, you know about it within seconds and can react immediately.

Compact size without compromise
Size plays a crucial role in practice - and this is where the LTE MINI has a huge advantage. Without the solar panel, it is one of the smallest 4G photo traps on the market and can easily be hidden in a tree, bush or fence. This allows the device to remain inconspicuous and hard to detect, which is key when protecting property or tracking wildlife, for example. Hunters will appreciate that the photo trap does not interfere with the natural behaviour of animals, while property owners will significantly reduce the risk of it being stolen. In doing so, the device retains full functionality and 4G connectivity.

Endurance that makes sense - even without a solar panel
A major advantage is the power solution using 3× Li-Ion 18650 batteries, which represent the ideal combination of capacity, availability and easy replacement. In practice, this means that the photo trap can operate for a long time without external power, for example when monitoring a forest or remote property. If you need even longer operation, simply replace the batteries with a ready-made set and continue without interruption. This is a major advantage over devices with an integrated battery, where you have to wait for a charge. In addition, you can purchase additional batteries and adapt operation to your exact needs.

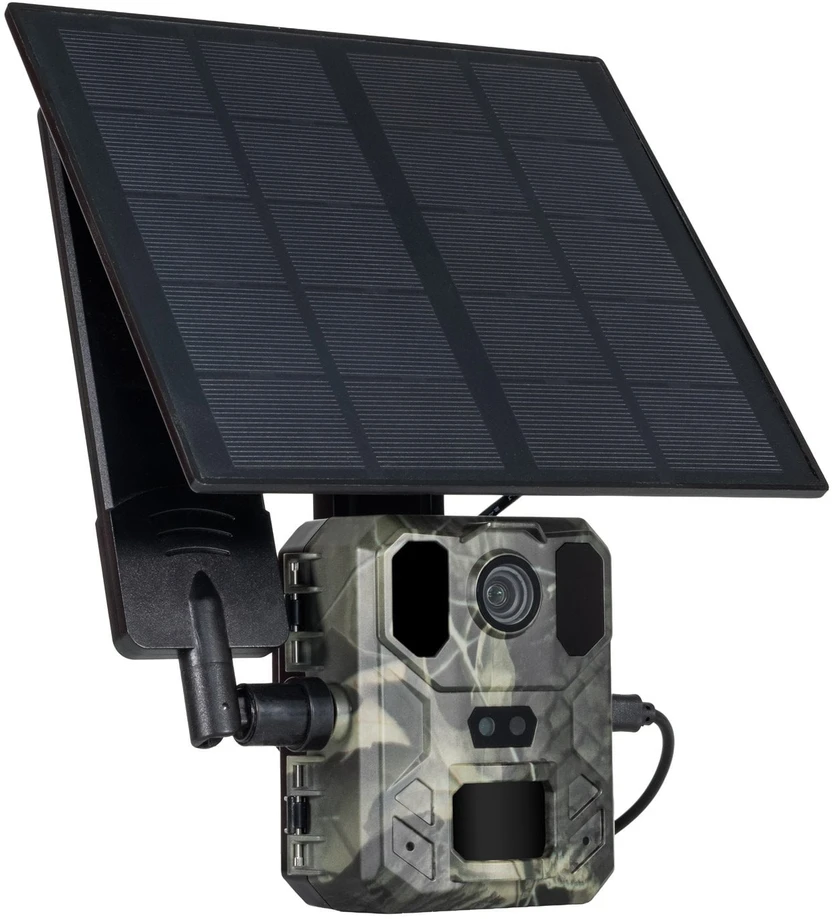

Solar panel for virtually unlimited operation
For maximum independence, the photo trap can be supplemented with a solar panel (5 W, USB-C) that continuously recharges the inserted batteries. With the right positioning and sufficient sunlight, the device can operate virtually unrestricted and without the need for intervention. This will be appreciated, for example, by farmers when monitoring fields, owners of remote properties or companies when monitoring buildings for long periods of time. The combination of solar panel and replaceable batteries creates a solution that adapts to both short and long term deployment.

Keep track from anywhere - mobile, email and your own server
Thanks to 4G connectivity and the EVOLVEO CAM app, you can access your images anytime, anywhere. But most importantly, simply set up the camera the way you need it. Of course, there is also a Czech menu of the app and the camera itself! As soon as the device detects movement, you receive a notification on your phone and immediately see the current situation. Images can be saved to cloud storage, sent to email or FTP server, which will be appreciated by advanced users and companies. In practice, you have full control over your data and can choose the way of working that suits you best. There is also a live preview or Live View function, which is used both for real-time monitoring and for setting the camera location.

Ideal for hunters, property owners and businesses
The photo trap finds use in a wide range of situations. Hunters will use it to monitor game for long periods of time without disturbing it. Cottage and property owners will get a reliable tool for protecting their property that will alert them immediately to movement. Farmers can check remote properties or livestock without the need for daily visits. Businesses will appreciate the ability to monitor buildings, warehouses or machinery outside working hours. In all cases, it's a combination of time savings, cost savings and increased security.

Reliable operation day and night, in all weathers
The photo trap is prepared for real-life conditions. The PIR sensor (90°) with fast response time detects every movement in time - whether it is a person, animal or vehicle. During the day it takes detailed images, while at night the invisible 940 nm IR illumination is activated with a range of up to 20 meters, which does not scare away game or alert the presence of the device. The IP65 rating makes the device resistant to rain, dust and harsh conditions, so you can rely on it for long-term deployment in the field.

Parameters:
- Display: Colour TFT
- Motion sensor: PIR - adjustable sensitivity (3 levels)
- Motion sensor detection angle: 90°
- Night light: 940 nm IR LED, 4 × IR LED under front anti-reflective cover
- IR LED range: 20 m
- Dimensions (H × W × D): 210 × 140 × 79 mm (with antenna, without solar panel)
- Weight: 355 g (including batteries, without solar panel)
- Operating temperature: device -10 °C to +50 °C, battery optimally 0 °C to +40 °C
- Storage temperature: device -10 °C to +50 °C, batteries optimally 0 °C to +40 °C
- Temperature measurement: by reading the internal temperature of the device
- Moon phase on display
- Device lock: password in the app
- Protection: IP65
- Menu language: CZ, SK, EN, HU, RO, SI, HR and more
- App language: CZ, SK, EN, HU, RO, SI, HR and more
- Manual language: CZ, SK, EN, HU, RO, SI, HR

Photos
- Sensor: 3 MPix
- Lens: F=6; FOV=60°
- Photo resolution: 30/24/20/16/12/8/5/3 MP
- Exposure (ISO): Auto/100/200/400
- Timelapse: 5 min/30 min/1/2/3/6/12/24 h
- Burst mode: 1/3/6/9 frames
- Photo information: Time and date, temperature, moon phase, title
- Recording Modes: Photo, Video, Photo and Video, Timelapse
- File Format: .JPEG
- Activation Speed: 0.5 s
- Delay interval: 1 s - 30 min

Video
- Video Resolution: VGA, 720p, 1080p, 2K
- Recording duration: 5-90 seconds
- File Format: MP4/H.265
- Live View: <180 kbps

Power
- Battery: 3× Li-Ion 18650 (replaceable)
- Charging: USB-C 5 V / 2 A
- Connector: USB-C (power/solar)
- Solar Panel: 5 W (optional accessory)
- External power supply: via USB-C

Connectivity
- Mobile networks: LTE/3G/2G
- Memory Card: Micro SD up to 256 GB
- SIM card: Nano SIM (without PIN)
- LTE Antenna: External, replaceable
- Internal memory: no
- Sending: Cloud / Email / FTP

Package contents:
- StrongVision LTE MINI photo trap
- User Manual
- 4G Antenna
- 3× Li-Ion 18650 battery
- Solar panel
- Strap for attachment
