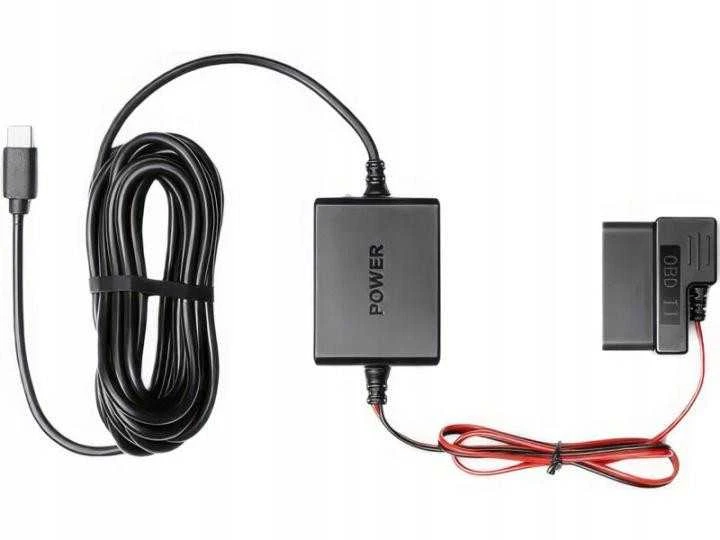

70mai Hardwire Kit OBD-II

70mai Power adapter for OBD II parking mode
Activates the parking mode in your 70mai camera.
Plug-and-play installation without modifying the vehicle's wiring.
Maintains manufacturer's warranty and insurance protection.
Protects the battery from excessive discharge.
Adjustable run time and threshold voltage.
Compatible with internal combustion, hybrid and electric vehicles.
Five built-in protections protect the car's electronics.

No more every driver's worst nightmare, a dead battery due to the camera in parking mode. The 70mai OBD-II Hardwire Kit adapter powers the camera from the diagnostic socket, activates parking mode and protects the battery. Four voltage protection levels, six monitoring time options, USB-C and a range of security features without interfering with the vehicle's wiring are among the main advantages of this device.

Activate parking mode and protect your battery effortlessly

The 70mai Hardwire Kit OBD Adapter is a solution that allows you to permanently power the dashcam directly from the vehicle's diagnostic socket. Activate the parking mode and get continuous monitoring of your car, while both the warranty and the battery remain protected.

Quick installation without tools

Tired of complicated instructions and a tangle of cables? With the 70mai Hardwire Kit OBD power adapter, that's a thing of the past. Just find the OBD diagnostic port in your car, connect the device and you're done. You don't need any tools or a visit to the workshop - power up the camera yourself in minutes.

Continuous monitoring even when parking

Want your dashcam to keep an eye on your car even when you're away? This adapter ensures a constant power supply to the camera even when the engine is switched off, so it can continuously record what's happening around the car. Every incident in the car park, minor accident or attempted vandalism will be recorded - giving you valuable evidence and peace of mind.

Multi-level battery protection

Say goodbye to the fear of running out of battery. The 70mai adapter has an advanced protection system that monitors the voltage and automatically disconnects the camera if it drops below a set value. Plus, it's equipped with protection against overvoltage, short circuit, overload and reverse wiring - so your car's electronics are always safe.

Set everything up to suit you

Have full control over your monitoring. The 70mai Hardwire Kit OBD adapter allows you to set six different voltage protection levels and parking monitoring times - from one hour to all-day continuous monitoring. It is compatible with internal combustion cars, hybrids and electric vehicles.

Check your camera's connector type before purchasing - newer versions may have changed. This OBD2 adapter uses USB-C.

Technical Specifications
Input voltage
DC 12-30 V
Output voltage
5V 2.4A
Dip Switch Setting
Low voltage protection: 4 levels, Supervision time: 6 levels
Low Voltage Protection Delay
6 minutes
ACC tripping voltage
Switch 5 ON: 13.3V/25.9V ±0.2V, Switch 5 OFF: 12.6V/25.5V ±0.2V
ACC shutdown delay
3 minutes 40 seconds
LED indicator - colours
Green: normal operation, Red: active protection
Input cable
0.5 m red and black two-core
Output cable
3.5 m 3-core with Type-C straight plug
Protection functions
Low voltage protection
Surge protection
Short circuit protection
Overload protection
Protection against reverse wiring
-20 °C to +70 °C
Black

In package
70mai OBD Adapter 2
Operating Instructions
