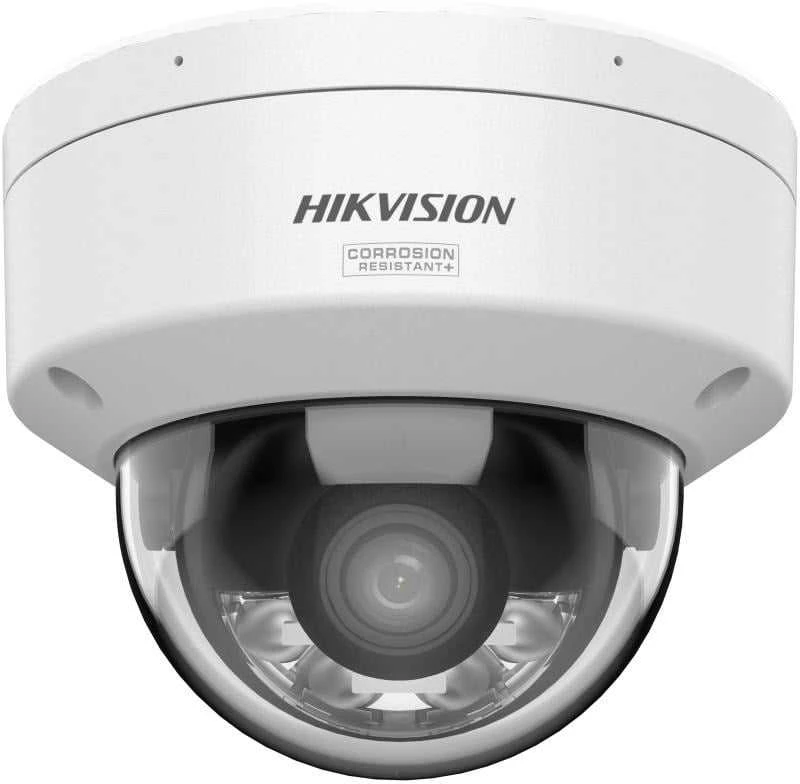

„Hikvision“ kupolinė kamera DS-2CD2147G3-LIS2UY F4 (balta, 4 MP, 30 m IR; 30 m LED; hibridinis apšvietimas, „ColorVu“), žema kaina

Objektyvas
Objektyvo tipas Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5° 4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Lęšio montavimas M16
Rainelės tipas Fixed
Diafragma F1.0
Ryškumo gylis 2.8 mm: 2.5 m to ∞ 4 mm: 3.1 m to ∞

DORI
DORI 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Vaizdas
Pagrindinis srautas 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings.
Vaizdo suspaudimas Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Vaizdo bitų greitis 32 Kbps to 8 Mbps
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Bitų dažnio valdymas CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream

Garsas
Garso tipas -2U: Mono sound
Garso suspaudimas -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Garso atrankos dažnis -2U: 8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimas -2U: Yes

Tinklas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Naudotojas/prievadas Up to 32 users 3 user levels: administrator, operator, and user
Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Vidinė atmintis NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klientas iVMS-4200,Hik-Connect,Hik-Central
Naršyklė Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+

Nuotrauka
Nuotraukos parametrų keitiklis Yes
Nuotraukos nustatymai Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimas Day,Night,Auto,Schedule
Nuotraukų pagražinimas BLC,HLC,3D DNR,Distortion Correction,Defog
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 130 dB
Vaizdo stabilizavimas EIS
Privatumo kaukė 4 programmable polygon privacy masks

Sąsaja
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Garsas -S2U models support: Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija -S: 1 input, 1 output (max. 24 VAC/VDC, 1A)
Perkrovimo mygtukas Yes

Funkcijos
Pagrindinės funkcijos Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,-S model: trigger alarm output
Išmaniosios funkcijos Scene change detection

Išmaniosios funkcijos
Veido atpažinimas Yes
Perimetro apsauga Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Bendra
Maitinimas 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
Medžiaga Base: aluminum alloy, cover: aluminum alloy
Dydis Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Pakuotės dydis 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Svoris Approx. 600 g (1.3 lb.)
Svoris su įpakavimu Approx. 825 g (1.8 lb.)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Pagrindinės funkcijos Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Patvirtinimai
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Saugumas UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Aplinkosauga CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Apsauga IP67: IEC 60529-2013,IK10: IEC 62262:2002
Apsauga nuo korozijos NEMA 4X (NEMA 250-2018)
