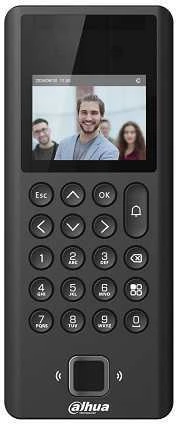

Dahua Technology Dahua Atstuminių kortelių pirštų skaitytuvas + kontroleris + klaviatūra, RJ45, Wiegand, RS-485

Features:

• Comes with a 2.4 inch LCD with a resolution of 320 (H) × 240 (V).
• 2-MP CMOS dual-lens camera with IR illumination and DWDR.
• Multiple unlock methods including face, ID card, password and fingerprint. You can configure scheduled unlock methods, or combine them to create your own personal unlock methods.
• Supports 1,000 users, 1,000 faces, 3,000 fingerprints, 3,000 cards, 1,000 passwords, 50 administrators, and 100,000 records.
• Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft) at an accuracy of 99.9%, and compares 1 face with N faces at the speed of 0.2 seconds per person.
• Supports security extension modules for access control, preventing doors from being forcefully opened.
• Supports Web attendance management and exporting local attendance reports.
• Supports doorbell.
• TCP/IP and Wi-Fi connection.
• Provides power to the electromagnetic lock and card reader (max 12 V, 1 A).

Technical Specifications:

System
Main Processor: Embedded Processor.
Button Type: Mechanical.
Network Protocol: IPv4;RTSP;UDP;P2P;IPv6;RTP;TCP.
OSDP Protocol: Yes.
Interoperability: ONVIF;CGI.
SDK and API: Yes.
Basic
Product Type: Standalone.
Display Screen: 2.4-inch display screen.
Screen Type: Non-touchscreen.
Screen Resolution: 320 (H) × 240 (V).
Camera: 2 MP CMOS HD Dual Cameras.
WDR: DWDR.
Light Compensation: Auto IR.
Voice Prompt: Yes.
Speaker: Yes.
Casing Material: PC + ABS.
Function
Verification Method: Card/remote/password/fingerprint/face unlock.
Card Type: ID card.
Period List: 128 periods.
Holiday Period: 128 periods.
Network Update: Yes.
First User Unlock: Yes.
Remote Verification: Yes.
Restricted List/Trusted List: Yes.
Wi-Fi: Yes.
Wireless Standard: IEEE802.11b/802.11g/802.11n.
Wireless Frequency Range: 2.4 G.
Peripheral Card Reader: One RS-485 card reader or one Wiegand card reader.
Multi-user Authentication: Yes.
Real-time Monitoring: Yes.
Multi-factor Authentication: Yes.
Capture Function: Yes.
Web Configuration:Yes.
Auto Registration: Yes.
Performance
Card Reading Distance: 0 cm–3 cm (0"–1.18").
Face Recognition Height Range: 1.2 m–2.0 m (3.94 ft–6.56 ft).
Face Recognition Distance: 0.3 m–1.5 m (0.98 ft–4.92 ft).
Face Recognition Accuracy: 99.9%.
Face Recognition Time: 0.2 s.
Fingerprint Sensor Type: Optical fingerprint.
Fingerprint Verification Mode: 1:N.
Fingerprint Comparison Time: 1.5 s.
Fingerprint Recognition Time: 0.5 s.
User
User (Card) Type: Common users, VIP users, patrol users, visitor users, blocklist users, other users, custom users 1 and custom users 2.
Capacity
User Capacity: 1000.
Face Image Capacity: 1000.
Fingerprint Capacity: 3000.
Card Capacity: 3000.
Password Capacity: 1000.
Record Capacity: 100000.
Port
RS-485: 1 port (reuse the Wiegand port).
Wiegand: 1 port (reuse the RS-485 port).
USB: 1 × USB 2.0 port.
Network Port: 1 × 10/100 Mbps Ethernet port.
Doorbell: 1.
Exit Button: 1.
Door Status Detection: 1.
Lock Control: 1.
Power Output Port: 1 (12 V, 1.0 A).
Alarm
Anti-pass Back: Yes.
Tamper Alarm: Yes.
Duress Alarm: Yes.
Door Sensor Timeout: Yes.
Intrusion: Yes.
Illegal Card Exceeding Threshold: Yes.
Duress Fingerprint: Yes.
General
Power Adapter: Optional.
Power Supply: 12 VDC, 2 A.
Power Consumption: < /=12 W.
Product Dimensions: 184.9 mm × 76.2 mm × 20.5 mm (7.28" × 3.00" × 0.81") (H × W × D).
Packaging Dimensions:219 mm × 122 mm × 58 mm (8.62" × 4.80" × 2.28") (H × W × D).
Operating Temperature: –10 °C to +45 °C (+14 °F to +113 °F).
Operating Humidity: 0%–90% (RH), non-condensing.
Operating Altitude: 0 m–1,300 m (0 ft–4,265.09 ft).
Operating Environment: Indoor.
Gross Weight: 0.6 kg (1.32 lb).
Accessory: Wall mount bracket (included).
Installation: Wall Mount.
Storage Temperature: –20 °C to +70 °C (–4 °F to +158 °F).
Storage Humidity: 30%–75%.
