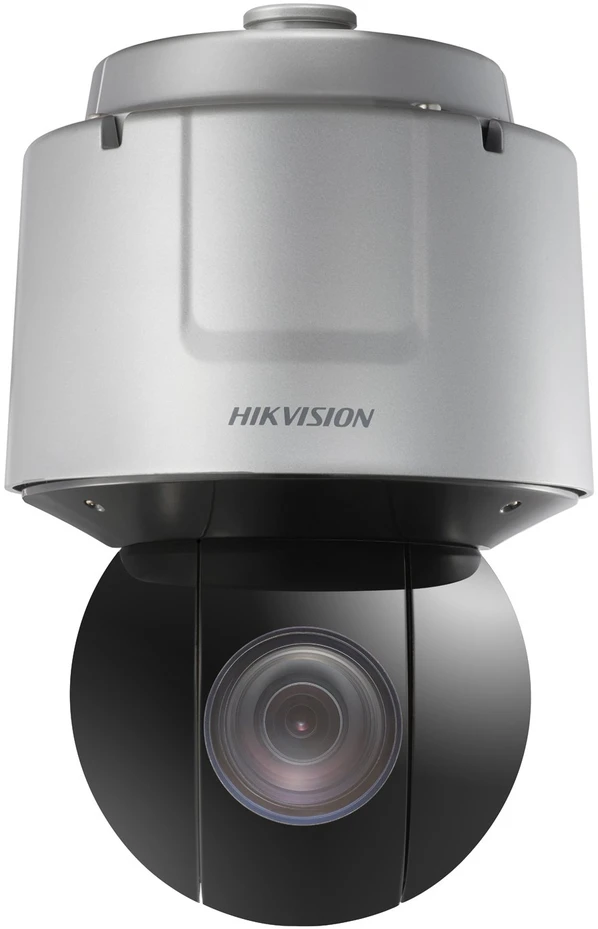

IP speed dome kamera Hikvision DS-2DF6A225X-AEL (x25, DarkFighter), žema kaina

Kamera
Sensorius 1/1.8" progressive scan CMOS
Maks. rezoliucija 1920 × 1080
Min. apšvietimas Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Užrakto greitis 1/1 s to 1/30,000 s
Day & Night IR cut filter
Priartinimas 25x optical, 16x digital
Lėtas užraktas Yes
DORI
Detect (25px/m): 2034.5 m

Observe (63px/m): 807.3 m

Recognize (125px/m): 406.9 m

Identify (250px/m): 203.4 m

PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -20° to 90° (auto flip)
Pan greitis Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt greitis Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proporcingas Pan Yes
Iš anksto išsaugoti nustatymai 300
Išsaugotų nustatymų sustabdymas Yes
Patruliavimas 8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D pozicija Yes
PTZ būsenos vaizdavimas Yes
Užduočių grafikas Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Išjungimo atmintis Yes

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (1920×1080, 1280×960, 1280×720)

60 Hz: 24 fps (1920×1080, 1280×960, 1280×720)
Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG
Vaizdo bitų greitis 32 Kbps to 16384 Kbps
H.264 tipas Baseline profile, main profile, high profile
H.265 tipas Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Garsas
Garso suspaudimas G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Garso bitų greitis 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Internetas
Protokolai IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
Tiesioginis vaizdo žiūrėjimas Up to 20 channels
API Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
Sklandus srautas Yes
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Saugumas User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Vidinė atmintis NAS (NFS, SMB/ CIFS), ANR
Klientas iVMS-4200, Hik-Connect, HikCentral
Naršyklė IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Nuotrauka
Diena/Naktis režimas Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR) 140 dB WDR
SNR ≥ 52 dB
Rūko šalinimas Optical defog
Vaizdo stabilizavimas EIS (Built-in gyroscope to improve EIS performance)
Nuotraukų pagražinimas BLC, HLC, 3D DNR
Privatumo kaukė 24 programmable polygon privacy masks, mask color or mosaic configurable
Regioninis fokusavimas Yes
Regioninė ekspozicija Yes

Sąsaja
Vaizdo išvestis 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
Interneto sąsaja 1 RJ45 10M/100M self-adaptive Ethernet port
Saugyklos vieta Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Garsas 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Signalizacija 7 alarm inputs, 2 alarm outputs
RS-485 HIKVISION, Pelco-P, Pelco-D, self-adaptive

Funkcijos
Pagrindinės funkcijos Motion detection, video tampering alarm, alarm input and output, exception
Išmaniosios funkcijos Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
Sąsaja Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Išmanus sekimas Manual tracking, auto-tracking

Išmaniosios funkcijos
Veido atpažinimas Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture
Perimetro apsauga
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)
Kelių eismo funkcijos Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)

Pagrindinis
Sistemos parametrai 24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
Dydis ⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14")
Svoris Approx. 6 kg (13.23 lb.)
Darbo sąlygos Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Pagrindinės funkcijos Mirror, password protection, watermark, IP address filter
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Patvirtinimai
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 7);

KC (KN 32: 2015, KN 35: 2015)
Saugumas
UL (UL 62368-1)

CB (IEC 62368-1:2014+A11);

CE-LVD (EN 62368-1:2014+A11:2017),

BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);

LOA (IEC/EN 60950-1)
Aplinkosauga
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
Apsauga Lightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
