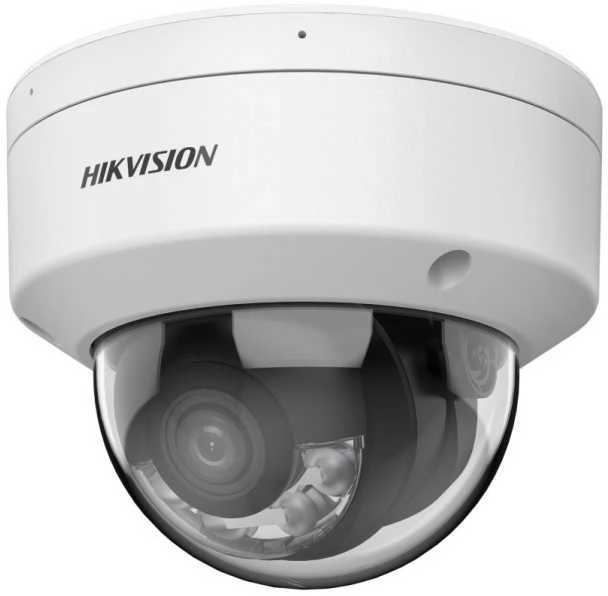

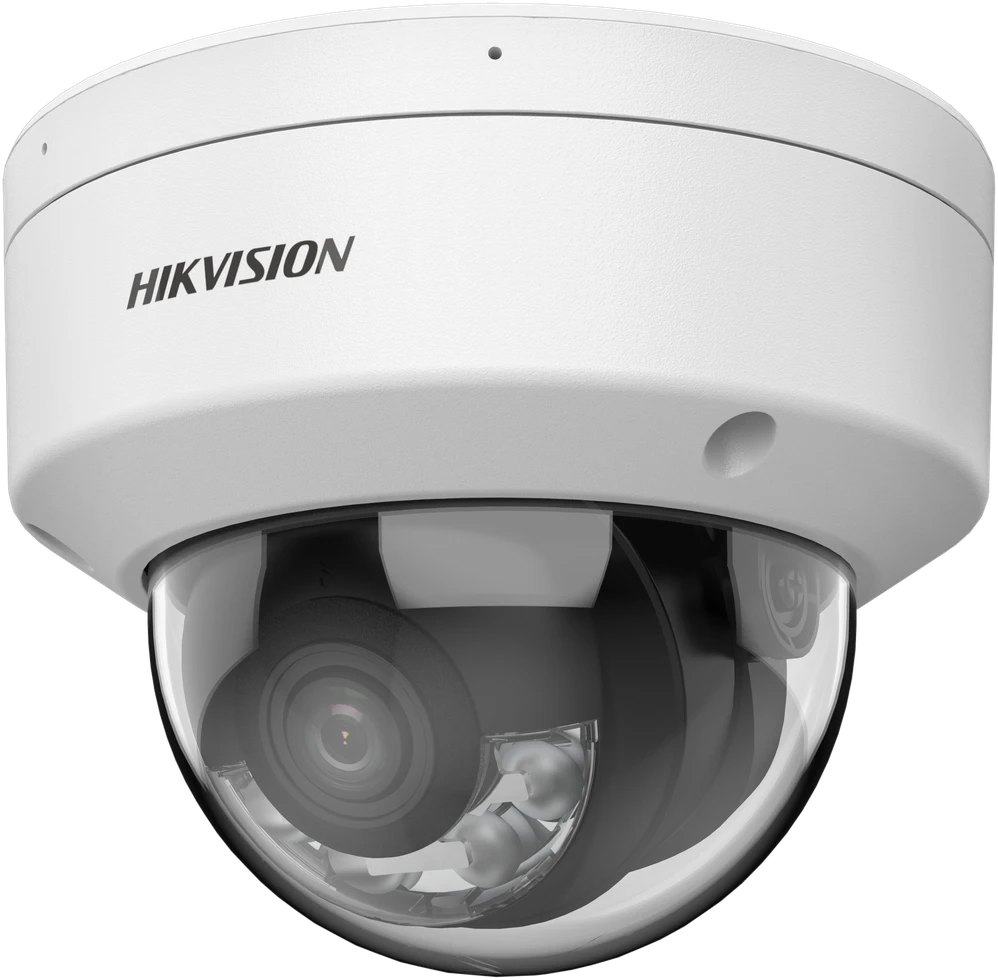

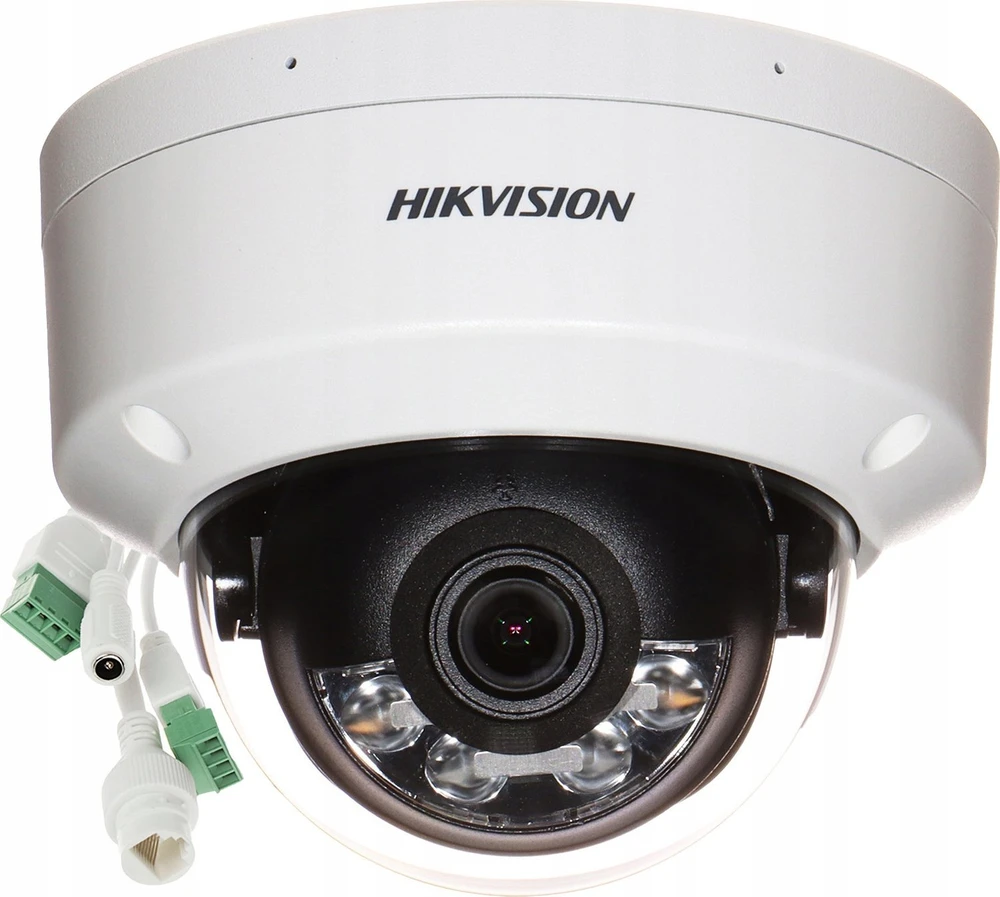

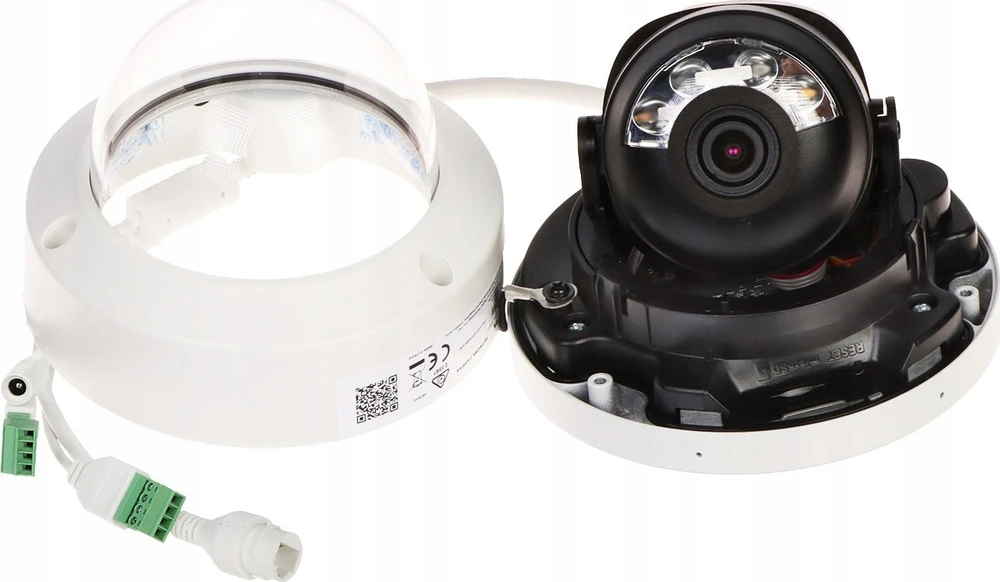

IP kamera Hikvision DS-2CD2147G2H-LISU 2.8mm

Modelis: DS-2CD2147G2H-LISU(eF) 2.8mm, baltos spalvos
Rezoliucija: 4MP
Objektyvas: 2.8 mm, horizontalus FOV 104°
Technologija: AcuSense, hybrid Light, ColorVu
Integruotas mikrofonas: Taip
Naktinis pašvietimas: 30 m. IR; 30 m. LED
Vieta microSD talpai: Taip, 512GB
Darbo sąlygos: -30 °C iki 60 °C
Saugos lygis: IP67
Vaizdo suspaudimas: H.265+
WiFi: Ne
Laikiklis/bazė (papildomai): DS-1280ZJ-DM46
Lauko/vidaus: Lauko

Aprašymas:

Kamera
• Sensorius: 1/1.8" Progressive Scan CMOS
• Maks. rezoliucija: 2688 x 1520
• Min. apšvietimas: Color: 0.0005 Lux @ (F1.0, AGC ON)
• Užrakto greitis: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Kampo keitimas: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lęšis
• Lęšio tipas: Fixed focal lens, 2.8mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°
• Lęšio montavimas: M16
• Rainelės tipas: Fixed
• Diafragama: F1.0
DORI: 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
Apšvietimas
• Papildomo apšviešimo tipas: IR, White Light
• Papildomo apšvietimo diapazonas: Up to 30 m
• Išmanus papildomas apšvietimas: Yes
• IR bangos ilgis: 850 nm
Vaizdas
• Pagrindinis srautas:
50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
• Antrinis srautas:
50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)
60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
• Trečias srautas:
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
• Vaizdo suspaudimas: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Vaizdo bitų greitis: 32 Kbps to 8 Mbps
• H.264 tipas: Baseline Profile,Main Profile,High Profile
• H.265 tipas: Main Profile
• Bitų greičio kontrolė: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Scalable Video Coding (SVC)H.264 and H.265 encoding
Garsas
• Pašalinių garsų šalinimas: -U: Yes
• Garso tipas: -U: Mono sound
• Garso suspaudimas -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Garso bitų greitis -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Garso atrankos dažnis -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Internetas
• Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Tiesioginis vaizdo žiūrėjimas: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Saugumas: Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Vidinė atmintis: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Klientas: iVMS-4200, Hik-Connect, Hik-Central
• Naršyklė: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Nuotrauka
• Nuotraukos parametrų keitiklis: yes
• Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Wide Dynamic Range (WDR): 130 dB
• SNR: > /= 52 dB
• Diena/Naktis režimas: Day,Night,Auto,Schedule
• Nuotraukų pagražinimas: BLC,HLC,3D DNR
Sąsaja
• Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Vidinė atmintis: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB
• Įmontuotas mikrofonas: -U: Yes
• Signalizacija: -S: 1 input, 1 output (max. 12 VDC, 30 mA)
• Garsas: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium, -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
• Perkrovimo mygtukas: Yes
Funkcijos
• Pagrindinės funkcijos: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Išmaniosios funkcijos: Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Scene change detection
• Sąsaja: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email; -SU: audible warning
Išmaniosios funkcijos
• Veido atpažinimas: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Pagrindinis
• Sistemos parametrai: 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W
• Medžiaga: Base: aluminum alloy, cover: aluminum alloy
• Dydis: Ø121.5 mm x 97.6 mm (Ø4.78" x 3.84")
• Pakuotės dydis: 234 mm x 120 mm x 117 mm (9.2" x 4.7" x 4.6")
• Svoris: Approx. 525 g (1.2 lb.)
• Svoris su įpakavimu: 750 g (1.7 lb.)
• Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Pagrindinės funkcijos: Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Patvirtinimai
• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
• Saugumas: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Aplinkosauga: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Apsauga: IP67: IEC 60529-2013,IK10: IEC 62262:2002
