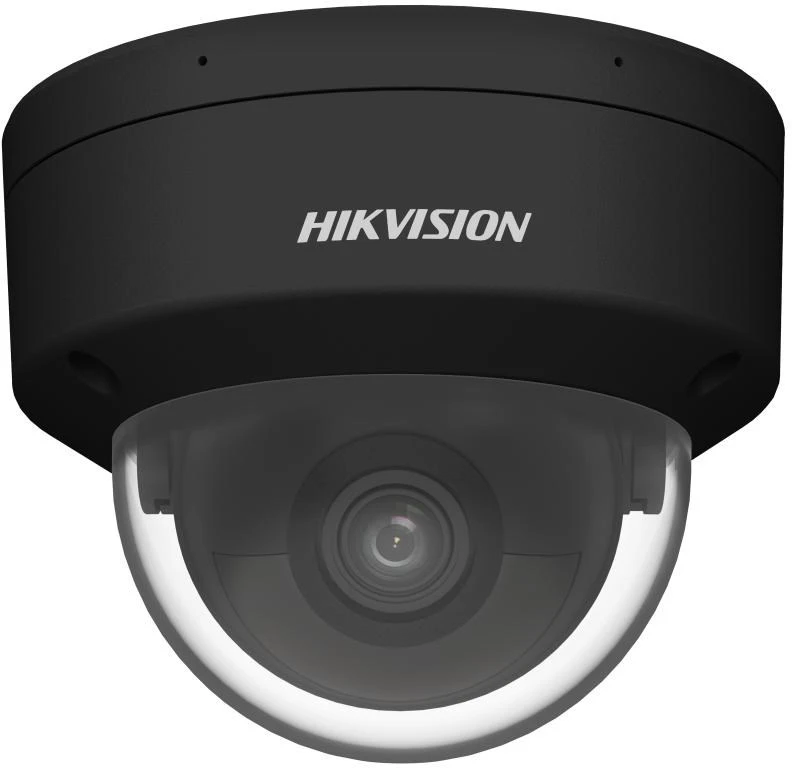

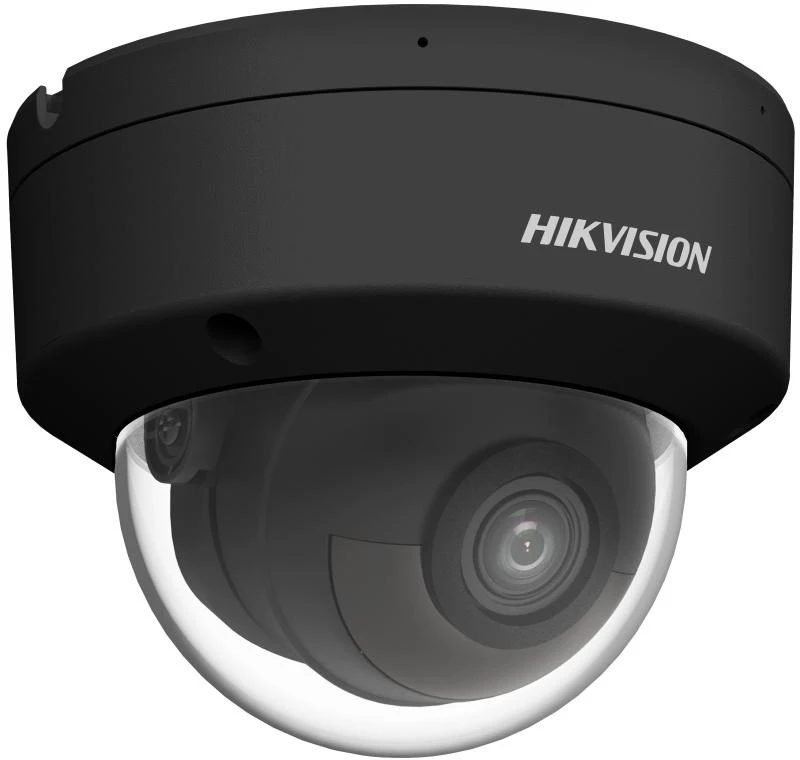

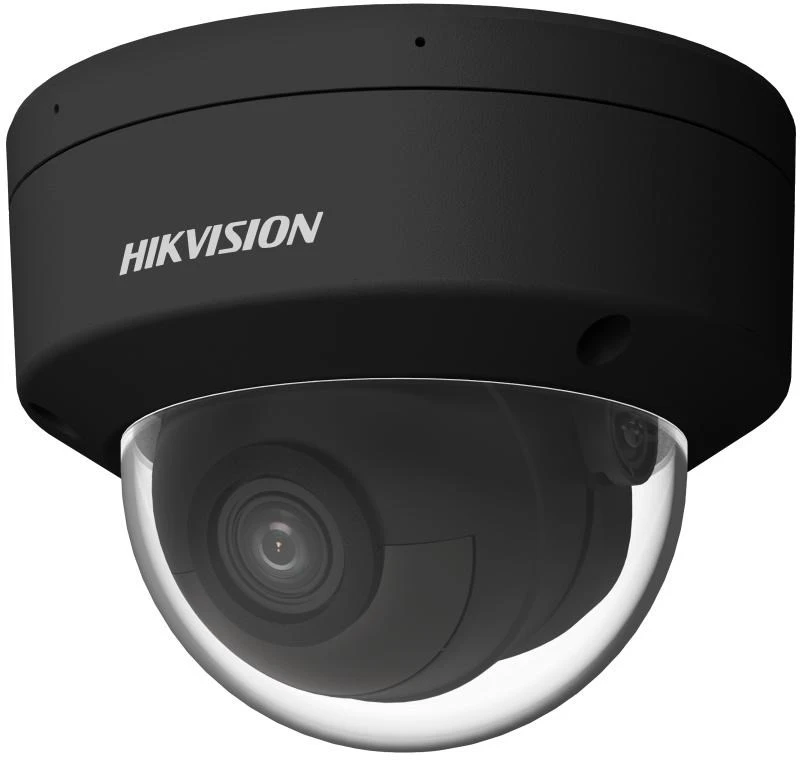

Name: IP kamera Hikvision dome DS-2CD2146G2H-ISU F2.8 (juoda, 4 MP, 30 m. IR, AcuSense)
Brand: Hikvision
SKU: 41865287
Price: 237.38 EUR
Availability: InStock

MP (MegaPixel): 4 MP
Objektyvas: 2.8 mm, horizontalus FOV: 103°
Technologija: AcuSense
Integruotas mikrofonas: Taip
Naktinis pašvietimas: 30 m. IR
Vieta microSD talpai: Taip, 512GB
Darbo sąlygos: -30 °C iki 60 °C
Saugos lygis: IP67
Vaizdo suspaudimas: H.265+
WiFi: Ne
Laikiklis/bazė (papildomai): DS-1280ZJ-DM46
Lauko/vidaus: Lauko

Kamera
Sensorius	1/3" Progressive Scan CMOS
Maks. rezoliucija	2688 × 1520
Min. apšvietimas	Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Užrakto greitis	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Kampo keitimas	Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lęšis
Lęšio tipas	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lęšio montavimas	M12
Rainelės tipas	Fixed
Diafragama	F1.0
Ryškumo gylis	2.8 mm: 1.9 m to ∞4 mm: 2.5 m to ∞

DORI
DORI	2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m

Apšvietimas
Papildomo apšviešimo tipas	IR
Papildomo apšvietimo diapazonas	Up to 30 m
Išmanus papildomas apšvietimas	Yes
IR bangos ilgis	850 nm

Vaizdas
Pagrindinis srautas	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Vaizdo suspaudimas	Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
Vaizdo bitų greitis	32 Kbps to 8 Mbps
H.264 tipas	Baseline Profile/Main Profile/High Profile
H.265 tipas	Main Profile
Bitų greičio kontrolė	CBR/VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream

Garsas
Garso suspaudimas	-SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis	-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis	-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas	-SU: Yes

Internetas
Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimas	Up to 6 channels
API	Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Saugumas	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Vidinė atmintis	NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas	iVMS-4200, Hik-Connect, Hik-Central
Naršyklė	Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Nuotrauka
Nuotraukos parametrų keitiklis	Yes
Nuotraukos nustatymai	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Diena/Naktis režimas	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Nuotraukų pagražinimas	BLC, HLC, 3D DNR
Privatumo kaukė	4 programmable polygon privacy masks

Sąsaja
Interneto sąsaja	1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Įmontuotas mikrofonas	-SU: Yes
Garsas	-SU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium-SU: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija	-SU: 1 input, 1 output (max. 12 VDC, 30 mA)
Perkrovimo mygtukas	Yes

Funkcijos
Pagrindinės funckcijos	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Išmaniosios funkcijos	Scene change detection
Sąsaja	Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Išmaniosios funkcijos
Veido atpažinimas	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

Pagrindinis
Sistemos parametrai	12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8.5 W
Medžiaga	Cover: aluminum alloy, main body: aluminum alloy

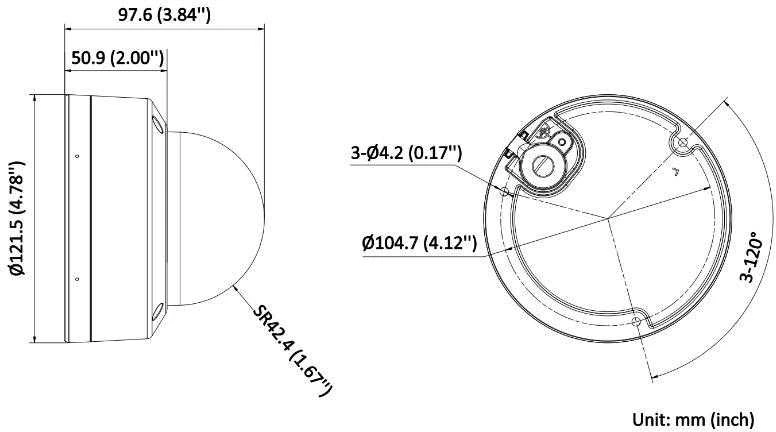

Dydis	Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")
Pakuotės dydis	150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Svoris	Approx. 550 g (1.2 lb.)
Svoris su įpakavimu	Approx. 800 g (1.8 lb.)
Sandėliavimo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba	33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Patvirtinimai
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Saugumas	UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
Aplinkosauga	CE-RoHS: 2011/65/EU
Apsauga	IP67: IEC 60529-2013,IK10: IEC 62262:2002
