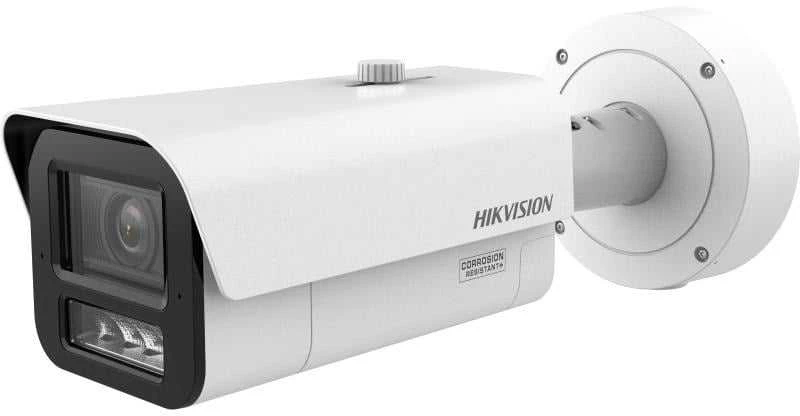

IP kamera Hikvision Bullet iDS-2CD7A46G2 / V-XZHSY 2.8–12mm (Balta, 4MP, IR+LED 100m, DarkFighter 2.0, Perimetro apsaugai, žema kaina

Didelio masto dirbtinio intelekto modelis skirtas perimetro apsaugai, sumažina klaidingų įspėjimų skaičių iki 90%
Aukštos kokybės vaizdas su 4 MP raiška
Puikus našumas esant prastam apšvietimui, dėka DarkFighter 2.0 technologijos
Aiškus vaizdas esant stipriam kontrastui dėl 140 dB WDR technologijos
Efektyvi H.265+ suspaudimo technologija, padedanti sutaupyti saugyklos vietą
VCA analitika nakties metu veikia iki 80 m, diena iki 100 m
Atsparus vandeniui ir dulkėms (IP67), vandalizmui (IK10) bei korozijai (NEMA 4X, pasirenkamas)
Įmontuotas lešio šildytuvas, užtikrinantis aiškų vaizdą lietingomis ar snieguotomis sąlygomis
Naktinis pašvietimas IR+Balta šviesa iki 100 m
Komplekte bazė pridedama

Patvirtinimai
Apsauga nuo korozijos	-Y: NEMA 4X (NEMA 250-2018)
Automatika	EN50121-4
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Aplinkosauga	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Kita	PVC FREE
Apsauga	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Saugumas	CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1

Garso
Garso bitų greitis	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis	8 kHz/16 kHz/32 kHz/48 kHz
Garso tipas	Mono sound
Pašalinių garsų šalinimas	Yes

Camera
Diena&Naktis	IR cut filter,Blue glass module (less ghost phenomenon)
Vaizdo jutiklis	1/1.8" Progressive Scan CMOS
Maks. rezoliucija	2688 × 1520
Min. apšvietimas	Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR,0 Lux with light
Užrakto greitis	1 s to 1/100,000 s

DORI
DORI	Wide:2.8 to 12 mm: D (Detect): 64.7 m, O (Observe): 25.7 m, R (Recognize): 12.9 m, I (Identify): 6.5 mTele:2.8 to 12 mm: D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.2 mThe DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

Išmaniosios funkcijos
Meta duomenys	Intrusion detection,line crossing detection,region entrance detection,region exiting detection
Perimeter Protection	Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggeringDedicated large scale AI model for perimeter protection, reduce false alarms by 98%VCA range up to 100 m*Result based on standard setup and test environment

Funkcijos
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
Sąsaja	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Išmaniosios funkcijos	scene change detection,audio exception detection,defocus detection

Bendra
Rasos šalinimas	Yes
Device Management	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
Dydis	With -Y: Ø140 mm × 377.4 mm (Ø5.5" × 14.9"), Without -Y: Ø144.1 mm × 374.7 mm (Ø5.7" × 14.8")
Pagrindinės funkcijos	Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log
Šildytuvas	Yes
Kalba	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Medžiaga	Aluminum alloy body
Pakuotės dydis	425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
Maitinimas	three-core terminal block,12 VDC ± 20%, 1.8 A, max. 21.5 W,24 VAC ± 20%, 1.47 A, max. 21 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.55 A to 0.41 A, max. 23.1 W
Darbo sąlygos	-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos	-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Svoris	Approx. 2280 g (5.03 lb.)
Svoris su įpakavimu	Without -Y: Approx. 3364 g (7.42 lb.), -Y: Approx. 3406 g (7.5 lb.)

Apšvietimas
IR bangos ilgis	850 nm
Išmanus papildomas apšvietimas	Yes
Papildomo apšvietimo diapazonas	Up to 100 m
Papildomo apšviešimo tipas	IR,White Light

Nuotrauka
Diena/Naktis režimas	Day,Night,Auto,Schedule,Alarm Trigger
Nuotraukų pagražinimas	BLC,HLC,3D DNR,Distortion Correction,Defog
Nuotraukos parametrų keitiklis	Yes
Nuotraukos nustatymai	Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Vaizdo stabilizavimas	EIS
Nuotraukos perdanga	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Privatumo kaukė	8 programmable polygon privacy masks
SNR	≥ 52 dB
Wide Dynamic Range (WDR)	140 dB

Sąsaja
Alarm	2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Garso	1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Įmontuotas mikrofonas	2 built-in microphones
Įmontuotas garsiakalbis	1 built-in speaker,Max. power consumption: 1.5 W
Interneto sąsaja	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Vidinė atmintis	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Galia	-Y: 12 VDC, max. 100 mA
RS-485	-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukas	Yes
Vaizdo išvestis	1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Lęšis
Diafragma	2.8 to 12 mm: F1.47 to F2.5
Focal Length & FOV	2.8 to 12 mm, horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1°
Fokusavimas	Auto,Semi-auto,Manual
Rainelės tipas	P-iris

Tinklas
API	ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
Klientas	iVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintis	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Saugumas	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
Naudotojas/prievadas	Up to 32 users3 user levels: administrator, operator, and user
Naršyklė	Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Vaizdas
Bitų dažnio valdymas	CBR,VBR
Penktasis srautas	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Ketvirtas srautas	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
H.264 tipas	Baseline Profile,Main Profile,High Profile
H.265 tipas	Main Profile
Pagrindinis srautas	Monitoring mode:50 Hz: up to 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080)60 Hz: up to 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 120 fps (1920 × 1080)*High frame rate is supported under monitoring mode only.smart mode:50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Region of Interest (ROI)	4 fixed regions for each stream
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Antrinis srautas	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Tikslinis apkarpymas	Yes
Trečias srautas	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Vaizdo bitų greitis	32 Kbps to 8 Mbps
Video Compression	Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
e-PTZ	Support Patrol and Auto Tracking settings
