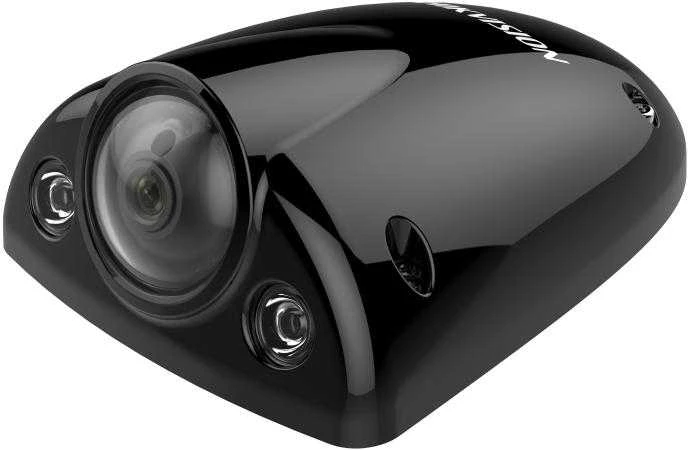

IP kamera DS-2XM6512G0-I / ND F2.8, žema kaina

Kamera
Sensorius 1/2.8″ Progressive Scan CMOS
Min. apšvietimas 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Užrakto greitis 1 s to 1/100,000 s
Lėtas užraktas Yes
WDR 120 dB
Day & Night IR Cut Filter
Kampo keitimas
2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90°

4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°

Vaizdas
Maks. rezoliucija 1536 × 864
Pagrindinis srautas
50Hz: 50 fps (1536 × 864, 1280 × 720, 704 × 576, 640 × 480)

60Hz: 60 fps (1536 × 864, 1280 × 720, 704 × 480, 640 × 480)
Antrinis srautas
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Trečias srautas
50Hz: 25fps (1536 × 864, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

60Hz: 30fps (1536 × 864, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Vaizdo suspaudimas
Main Stream: H.265 /H.264

Sub-Stream: H.265 /H.264 / MJPEG

Third Stream: H.265 /H.264
Vaizdo bitų greitis 32 Kbps to 16 Mbps
H.264 tipas BaseLine Profile/Main Profile/High Profile
H.265 tipas Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding

Garsas
Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3
Garso bitų greitis 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8Kbps-320Kbps(MP3)
Garso atrankos dažnis 8kHz/16kHz/32kHz/44.1kHz/48kHz
Pašalinių garsų šalinimas Yes

Internetas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Tiesioginis vaizdo žiūrėjimas Up to 20 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
User/Host
Up to 32 users

3 levels: Administrator, Operator and User
Vidinė atmintis
MicroSD/SDHC/SDXC card (up to 128 GB), local storage and NAS (NFS,SMB/CIFS), ANR

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas iVMS-4200, Hik-Connect, Hik-Central
Naršyklė
Plug-in required live view: IE8+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11;

Local service: Chrome 41.0+, Firefox 30.0-51

Nuotrauka
Nuotraukos nustatymai Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Diena/Naktis režimas Day/Night/Auto/Schedule
Nuotraukų pagražinimas BLC, HLC, 3D DNR, Defog, EIS
DNR 3D DNR

Sąsaja
Interneto sąsaja
Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port

-M: 1 four-core M12 aviation plug
Vidinė atmintis No
Garsas No
Signalizacija No
Perkrovimo mygtukas Yes

Funkcijos
Pagrindinės funckcijos Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Išmaniosios funkcijos
Line crossing detection, up to 4 lines configurable Intrusion

detection, up to 4 regions configurable

Region entrance detection, up to 4 regions configurable

Region exiting detection, up to 4 regions configurable

Unattended baggage detection, up to 4 regions configurable

Object removal detection, up to 4 regions configurable

Object detection: detects objects and upload images

Scene change detection, defocus detection
Sąsaja Upload to FTP/NAS/memory card, notify monitoring center, send email, trigger recording, trigger capture

Pagrindinis
Kameros dydis
Camera: 163.7 × 122.6 × 65.1 mm (6.4" × 4.8\" × 2.6\")

With package: 252 × 190 × 108 mm(9.9 × 7.5\" × 4.3\")"
Kameros svoris
Camera: Approx. 850 g (1.9 lb.)

With package: 1200 g (2.6 lb.)
Darbo sąlygos -40 °C to 70 °C (-40 °F to 158 °F).Humidity 95% or less (non-condensing)
Pagrindinės funkcijos Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
Energijos sunaudojimas
-ID, -IDM: 24 VDC, 0.36 A, max. 8.6 W

-I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.8 W
Maitinimas
-ID, -IDM: 24 VDC ± 25%, two-core terminal block, reverse polarity protection;

-I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 0
