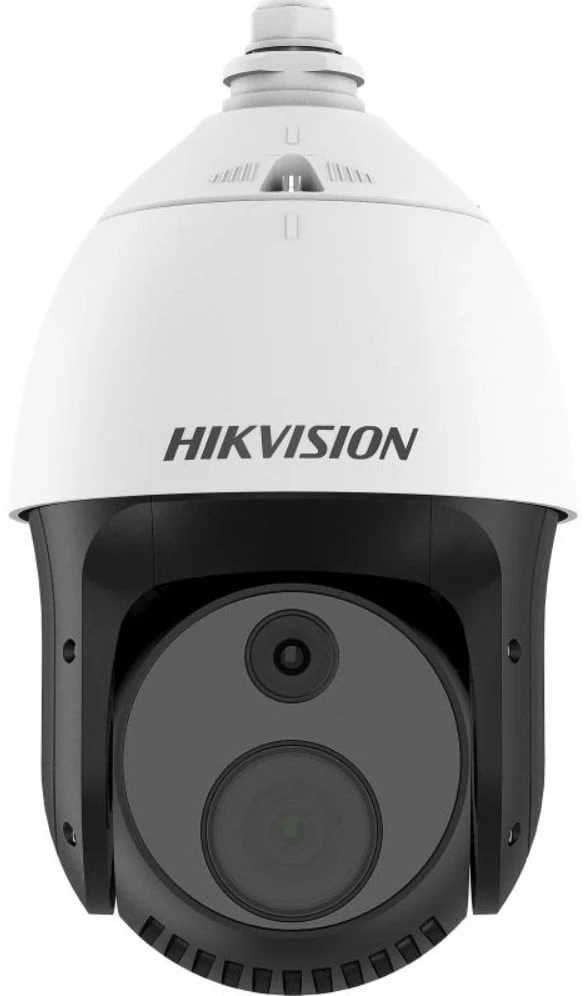

Name: Hikvision termovizorinis ir optinis dome DS-2TD4228T-10/S2
Brand: Hikvision
SKU: 54495722
Price: 2632.39 EUR
Availability: InStock

Detection Range Table/Smart Function Range
VCA Range for Humans 80 m
VCA Range for Vehicles 240 m

Pagrindinis
Dydis 305 mm × 185 mm × 163 mm (12.01 " × 7.28 " × 6.42 ")
Energijos sunaudojimas Max 30 W
Maitinimas 24VAC ± 20%, two-core terminal block36VDC ± 20%, two-core terminal block48VDC ± 20%, two-core terminal blockHi-PoE
Apsaugos lygis IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Tinklo naršyklės kalba 32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Svoris Approx. 3.9Kg (8.6lb)
Darbinė temperatūra / drėgmė -40°C to 70°C (-40°F to 158°F), 90% or less

Apšvietimas
IR distancija Up to 100m
IR intensyvumas ir kampas Automatically adjusted

Vaizdo efektas
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Tikslinė spalva Supported in white hot and black hot mode.

Sąsaja
Alarm Action Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Signalizacijos įvestis 7-ch inputs (0-3.3 VDC)
Signalizacijos išvestis 2-ch relay outputs, alarm response actions configurable
Analog Video Output 1.0 V [p-p]/75 Ω
Garso įvestis LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
Garso išvestis Linear Level; Impedance: 600 Ω
Bendravimo sąsaja 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface

Tinklas
API ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Klientas iVMS-4200, Hik-Connect
Vidinė atmintis MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protokolai IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Saugumas User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Tiesioginis vaizdo žiūrėjimas Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Naršyklė Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0+, Firefox 52.0 +

Optinis modulis
Diafragma (diapazonas) F1.2-F4.4
FOV 58.8° × 34.4° (H × V) to 2.18° × 1.2° (H × V)
Židinio nuotolis 4.8-153 mm, 32x
Fokusavimo režimas Auto/Semi-auto/Manual
Sensorius 1/2.8" Progressive Scan CMOS
Min. apšvietimas Color: 0.05 Lux @(F1.2，AGC ON), B/W: 0.01 Lux @(F1.2，AGC ON)
Optinio rūko šalinimas No, support algorithmic defog
Rezoliucija 2688 × 1520, 4 MP
Užrakto greitis 1s to 1/100,000s
WDR 120 dB

PTZ
Judėjimo diapazonas Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
PT Status Turn On/Turn Off
Pan greitis Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
Park Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Patruliavimas 8; Up to 32 Presets Per Patrol
Išsaugotų rėžimų skenavimas 4; More Than 10 Minutes Per Pattern
Power Off Memory Yes
Iš anksto išsaugoti nustatymai 300 in total, 273 are configurable.
Proporcingas priartinimas Yes
Užduočių grafikas Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
Tilt greitis Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s

Išmanioji funkcija
Fire Detection Dynamic fire detection, up to 10 fire points detectable.
Temperatūros tikslumas Max (±2 °C, ±2 %)
Temperatūros matavimas Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperatūros diapazonas -20 °C to 550 °C (-4 °F to 1022 °F)
VCA Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene

Termovizorio modulis
Diafragma F1.0
Skaitmeninis priartinimas ×2, ×4, ×8
FOV 18.1°×13.6° (H × V)
Židinio nuotolis 10 mm
Fokusavimo režimas Athermalized
IFOV 1.2 mrad
Sensorius Vanadium Oxide Uncooled Focal Plane Arrays
Minimali fokusavimo distancija 1.5m
NETD Less than 35 mK (@25 °C,F#=1.0)
Pixel Interval 12 μm
Rezoliucija 256 × 192 (the resolution of output image is 1280 × 720)
Reagavimo bangų juosta 8 μm to 14 μm

Vaizdas ir garsas
Garso suspaudimas G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Pagrindinis srautas Optical channel50 Hz:25 fps (2688 × 1520，1920×1080, 1280×960, 1280×720)60 Hz:30 fps (2688 × 1520，1920×1080, 1280×960, 1280×720)Thermal channel25 fps (1280×720, 704 × 576, 640 ×512, 256× 192)
Sub-stream Optical channel50 Hz:25 fps (704 × 576, 352 × 288)60 Hz:30 fps (704 × 576, 352 × 288)Thermal channel25 fps (704 × 576, 640 ×512, 256 × 192)
Vaizdo suspaudimas Main stream: H.265+/H.265/H.264+/ H.264Sub-stream: H.265/H.264/MJPEG
