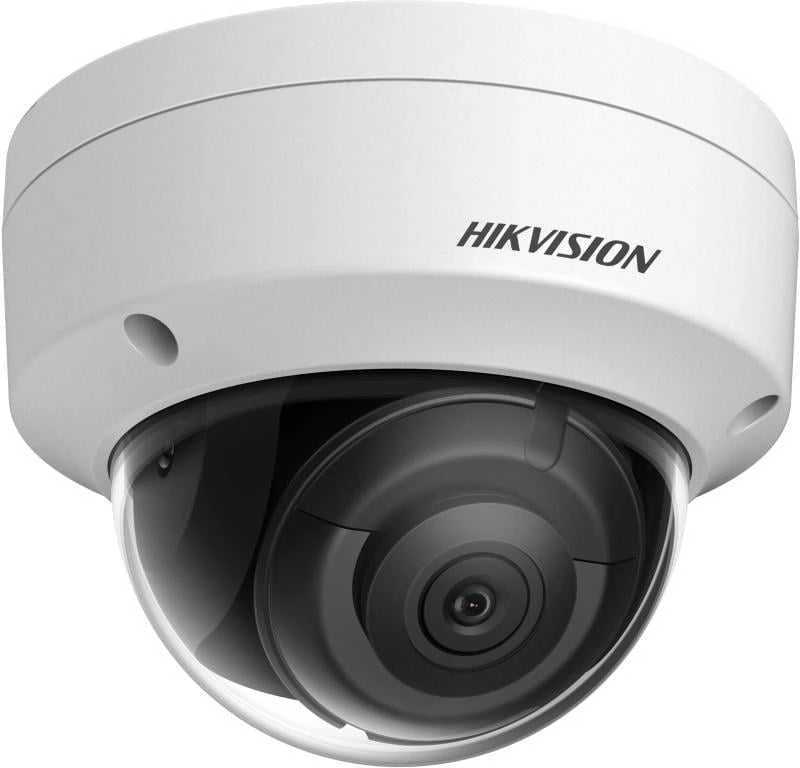

Hikvision kupolas DS-2CD2166G2H-ISU...

Dėmesio! Ar prekė turi maitinimo šaltinį (power supply) teiraukitės pas vadybininką

Lęšis
Lęšio tipas Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5°

4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112°
Lęšio montavimas M12
Rainelės tipas Fixed
Diafragama F1.0
Ryškumo gylis
2.8 mm: 1.7 m to ∞

4 mm: 2.2 m to ∞

DORI
DORI
2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m

4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m

Vaizdas
Pagrindinis srautas
50 Hz:

25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3200 × 1800)

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Vaizdo suspaudimas
Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.
Vaizdo bitų greitis 32 Kbps to 16 Mbps
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Bitų greičio kontrolė CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Garsas
Garso suspaudimas -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso tipas -U: Mono sound
Garso bitų greitis -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Garso atrankos dažnis -U: 8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimas -U: Yes

Internetas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas iVMS-4200,Hik-Connect,Hik-Central
Naršyklė
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Nuotrauka
Nuotraukos parametrų keitiklis Yes
Nuotraukos nustatymai Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimas Day,Night,Auto,Schedule
Nuotraukų pagražinimas BLC,HLC,3D DNR
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Privatumo kaukė 4 programmable polygon privacy masks

Sąsaja
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Įmontuotas mikrofonas -U: Yes
Garsas -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija -S: 1 input, 1 output (max. 12 VDC, 30 mA)
Perkrovimo mygtukas Yes

Funkcijos
Pagrindinės funckcijos Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Išmaniosios funkcijos

Scene change detection

Išmaniosios funkcijos
Veido atpažinimas Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggered by specified target types (human and vehicle)

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.65 A, max. 7.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 9.5 W
Medžiaga

Base: aluminum alloy, cover: aluminum alloy
Dydis Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Pakuotės dydis 150 mm × 150 mm × 142 mm (9.2" × 4.7" × 4.6")
Svoris Approx. 525 g (1.2 lb.)
Svoris su įpakavimu Approx. 750 g (1.7 lb.)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Pagrindinės funkcijos Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
