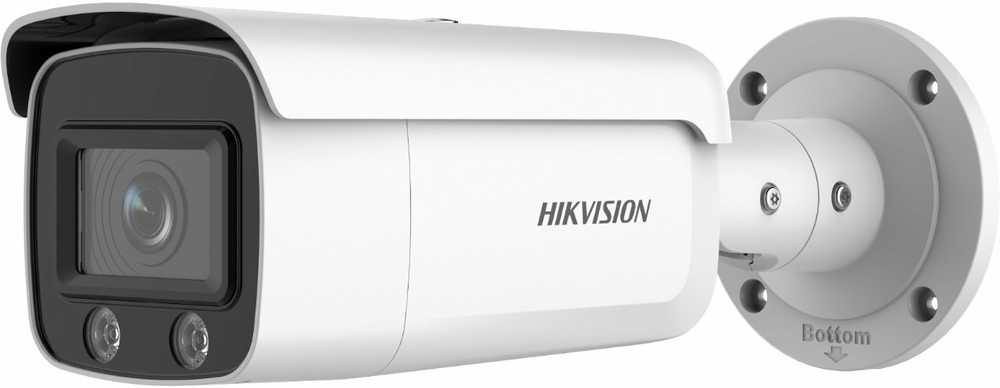

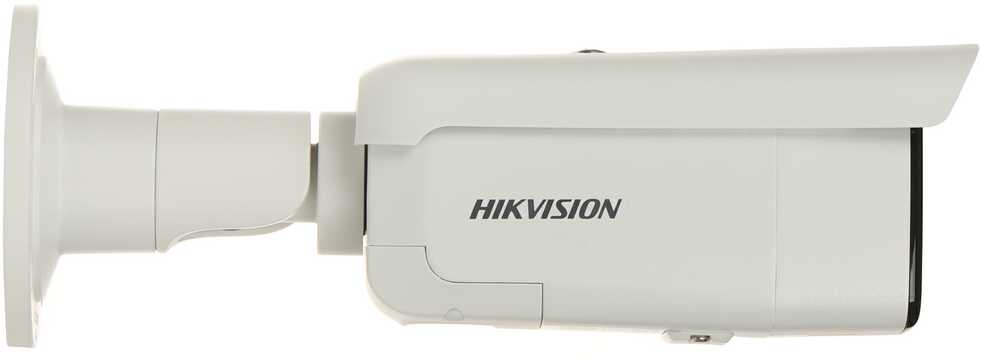

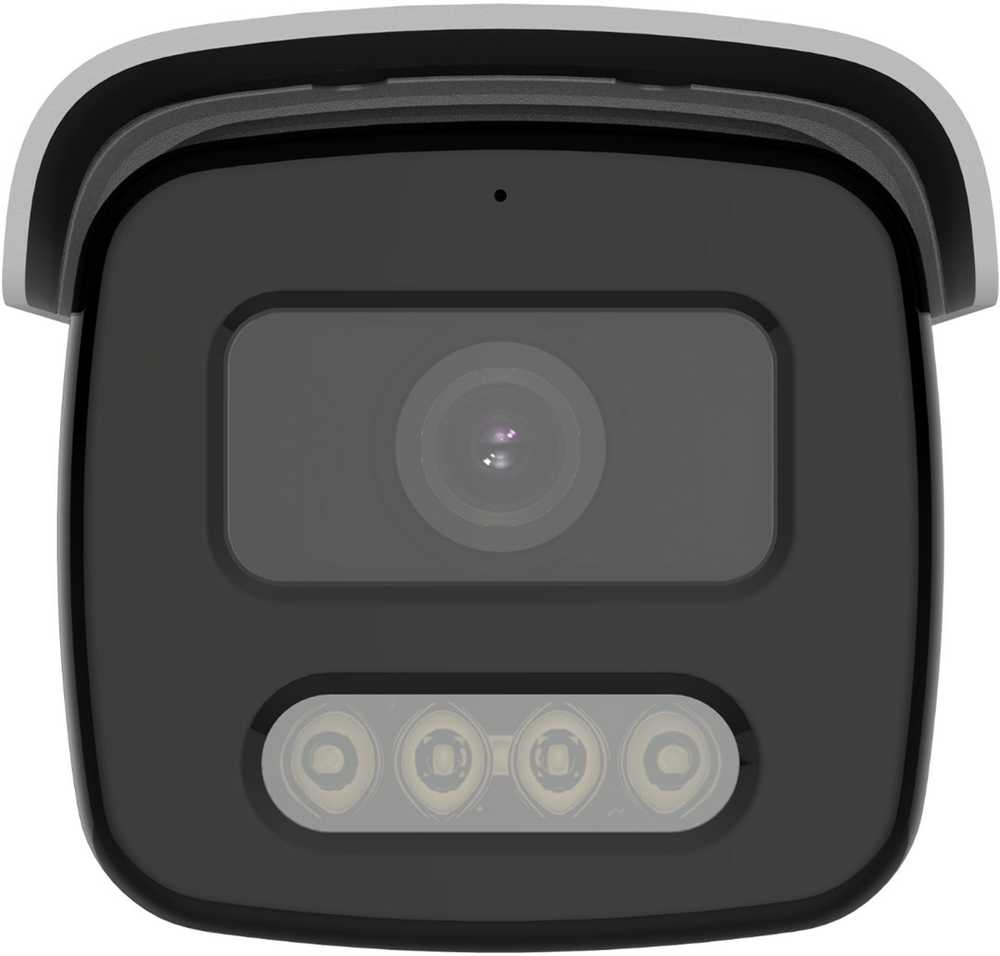

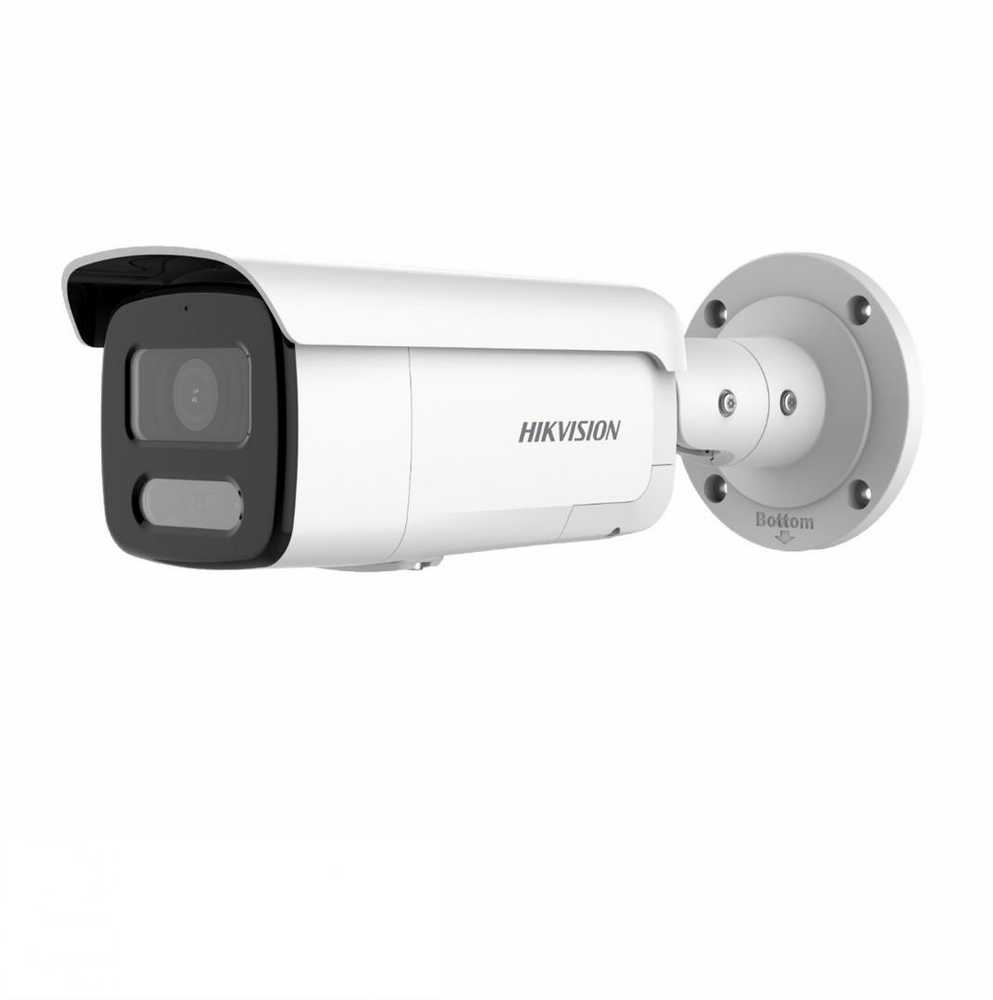

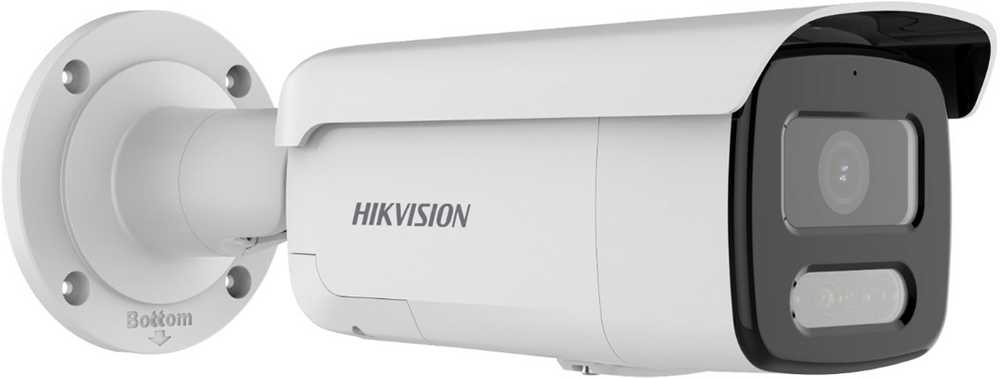

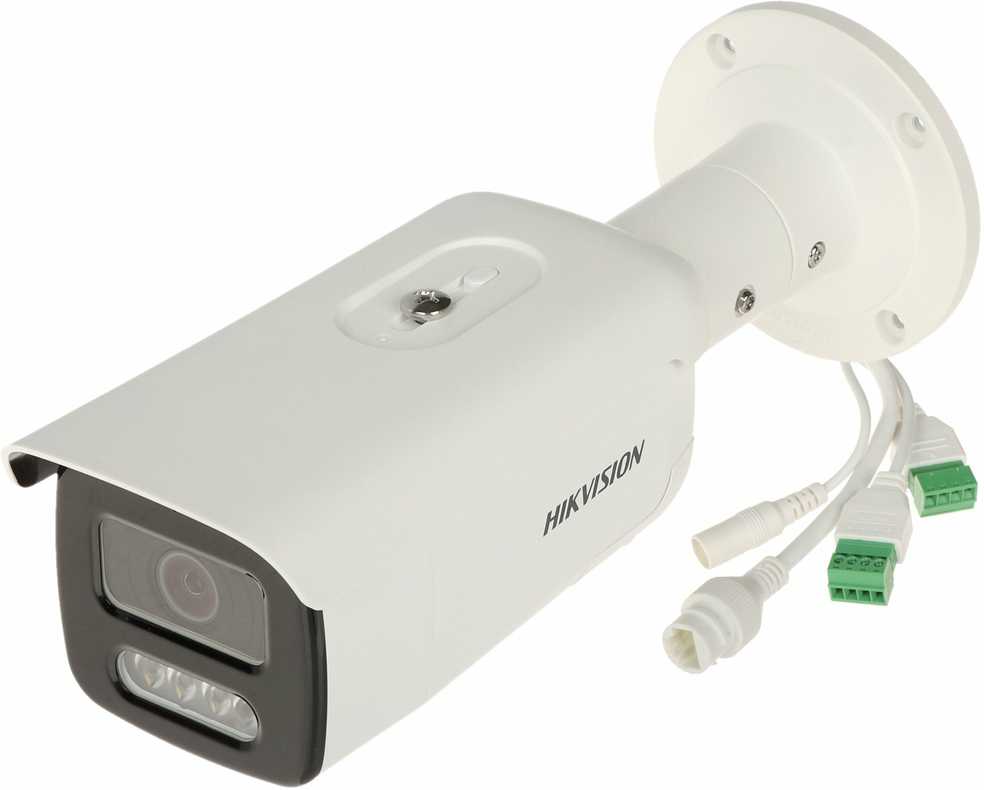

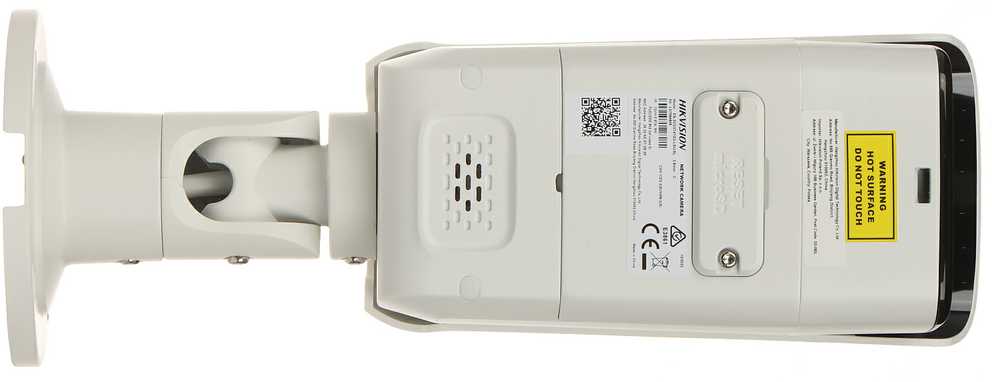

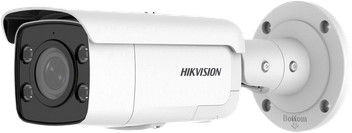

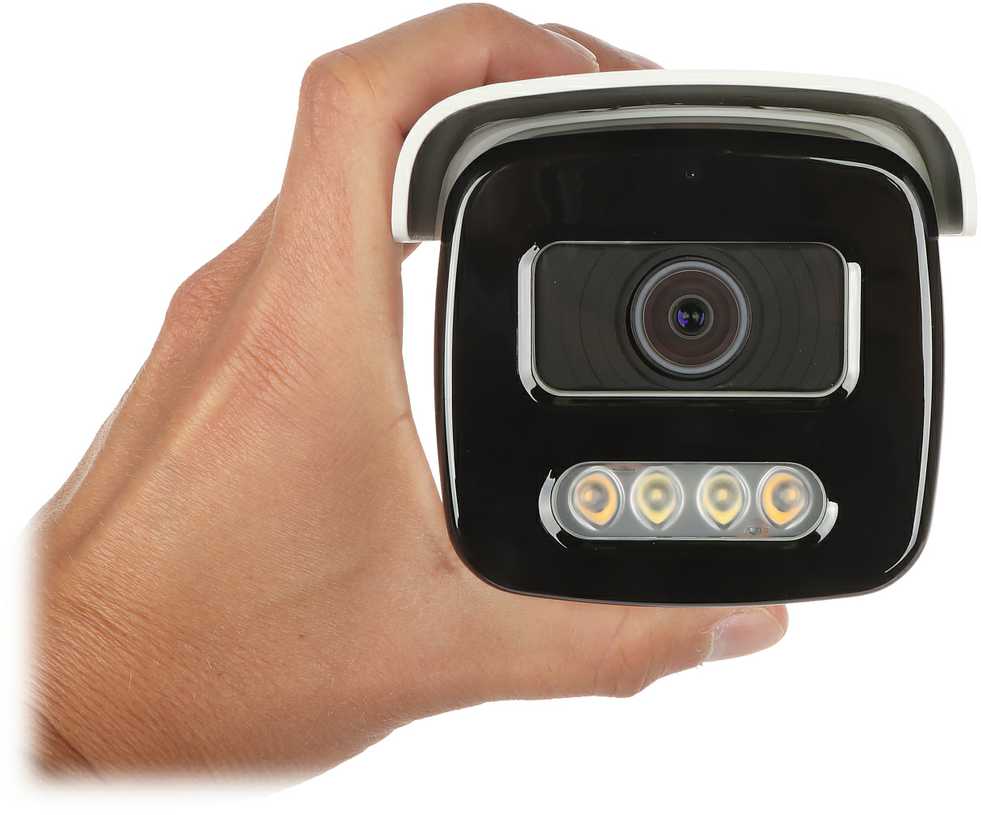

„Hikvision“ kulkos formos DS-2CD2T47G2-LSU/SL F2.8 (balta, 4 MP, 60 m. LED, „ColorVu“)

2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°

4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°

6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7°

2.8 mm: 3.1 m to ∞

4 mm: 5.4 m to ∞

6 mm: 12.1 m to ∞

2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m

4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

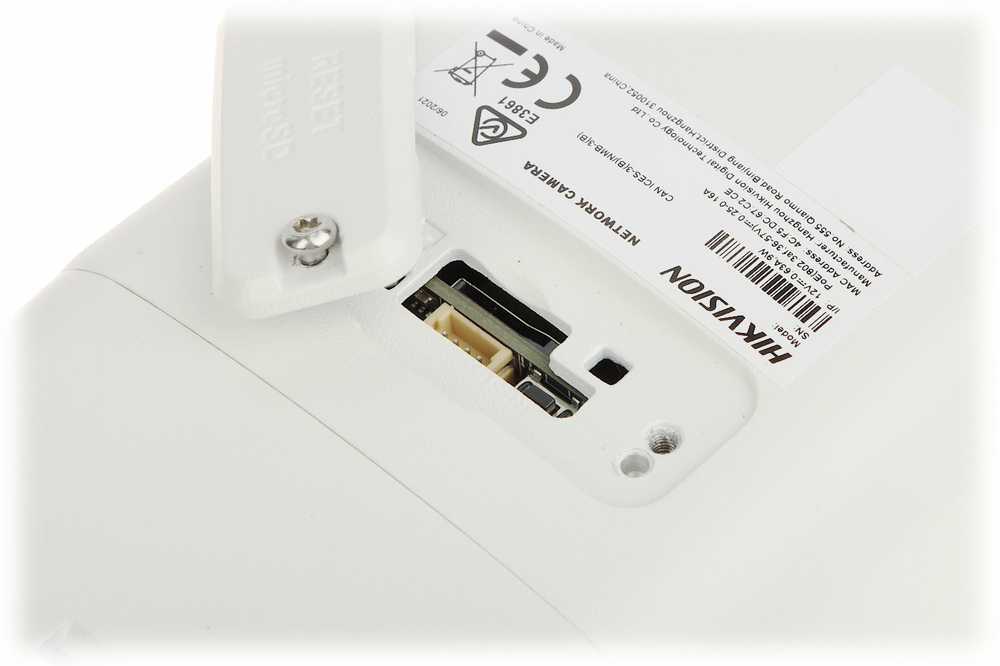

NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card (256 GB) local storage

Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

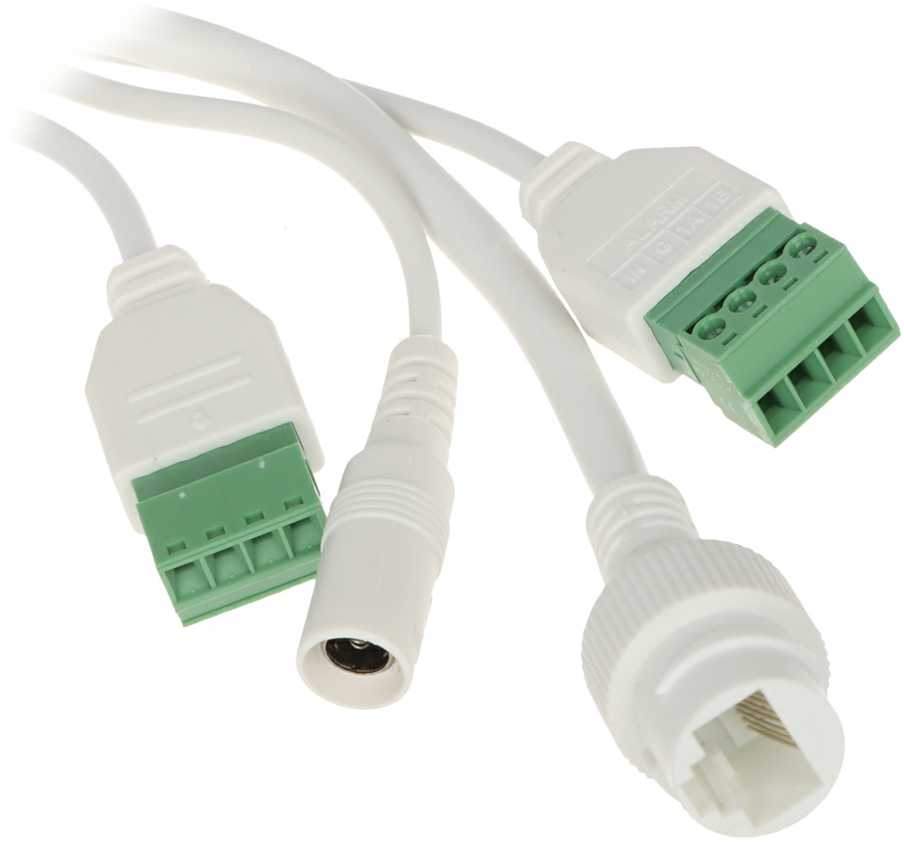

1 input (line in), two-core terminal block , max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out),two-core terminal block , max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Visual alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

Scene change detection

12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

FCC SDoC: 47 CFR Part 15, Subpart B;

CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;

RCM: AS/NZS CISPR 32: 2015;

IC VoC: ICES-003: Issue 6, 2016;

KC: KN 32: 2015, KN 35: 2015

UL: UL 60950-1;

CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

LOA: IEC/EN 60950-1

CE-RoHS: 2011/65/EU;

WEEE: 2012/19/EU;

Reach: Regulation (EC) No 1907/2006
