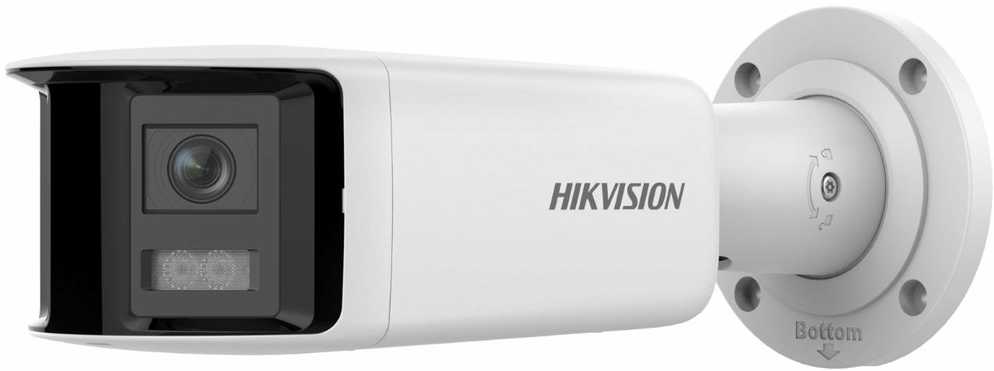

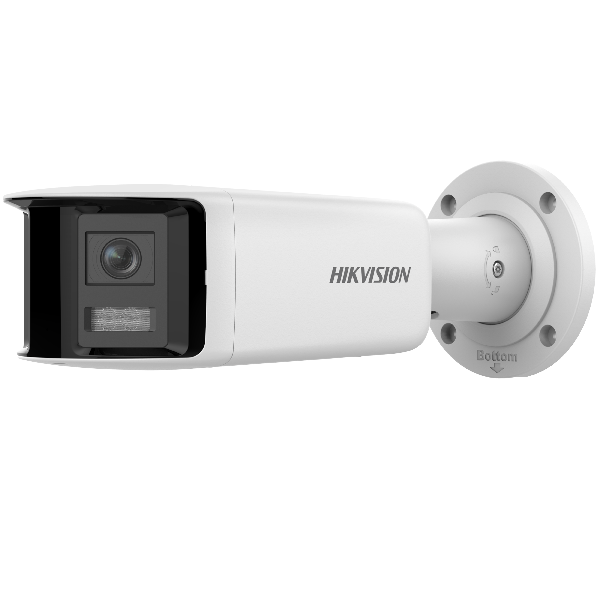

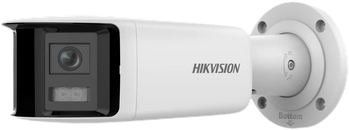

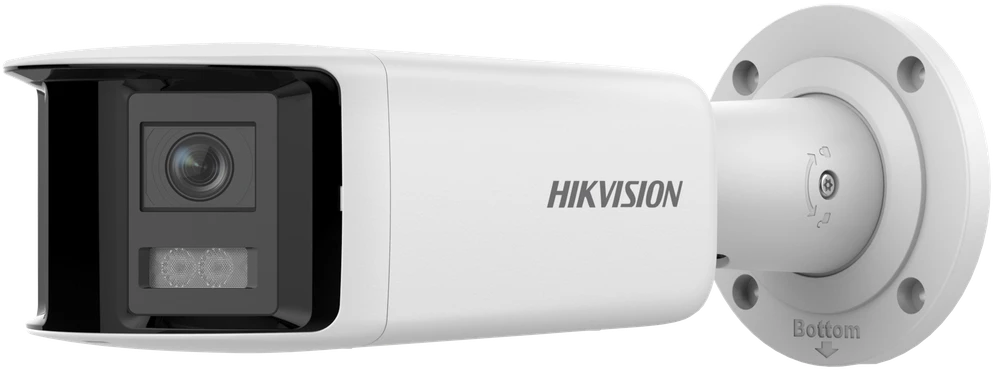

Name: Hikvision kulka DS-2CD2T47G2P-LSU/SL(C) F2.8 (balta, 4 MP, 40 m. IR; 40 m. LED, ColorVu)
Brand: Hikvision
SKU: 27112383
Price: 299.89 EUR
Availability: InStock

Dėmesio! Ar prekė turi maitinimo šaltinį (power supply) teiraukitės pas vadybininką

Kamera
Sensorius 2 × 1/2.5" Progressive Scan CMOS
Maks. rezoliucija 3040 × 1368
Min. apšvietimas Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Užrakto greitis 1/3 s to 1/100,000 s
Kampo keitimas Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lęšis
Lęšio tipas Fixed focal lens, dual lens, 2.8 mm
FOV 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lęšio montavimas M12
Rainelės tipas Fixed
Diafragama F1.0
Ryškumo gylis 2 m to ∞

DORI
DORI 2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m

Apšvietimas
Papildomo apšviešimo tipas White Light
Papildomo apšvietimo diapazonas Up to 40 m
Išmanus papildomas apšvietimas Yes

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (3040 × 1368)

60 Hz: 24 fps (3040 × 1368)
Antrinis srautas
50 Hz: 25 fps (1200 × 536, 960 × 432)

60 Hz: 24 fps (1200 × 536, 960 × 432)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis 32 Kbps to 8 Mbps
H.264 tipas Baseline Profile,Main Profile,High Profile
H.265 tipas Main Profile
Bitų greičio kontrolė CBR,VBR
SVC H.264 and H.265 encoding
ROI 1 fixed region(s) for main stream

Garsas
Garso tipas Mono sound
Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas Yes

Internetas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Tiesioginis vaizdo žiūrėjimas Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas iVMS-4200,Hik-Connect,Hik-Central
Naršyklė
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklis Yes
Nuotraukos nustatymai Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimas Day,Night,Auto,Schedule
WDR 130 dB
SNR ≥ 52 dB
Nuotraukų pagražinimas BLC,HLC,3D DNR

Sąsaja
Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Įmontuotas mikrofonas Yes
Įmontuotas garsiakalbis Max. power consumption: 1 W, max. sound pressure level: 10 cm: 97 dB.
Garsas
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Perkrovimo mygtukas Yes

Funkcijos
Pagrindinės funckcijos Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
Išmaniosios funkcijos
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),

Scene change detection
Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Medžiaga Front cover: metal, body: metal, bracket: metal
Dydis 118.6 mm × 105.1 mm × 306.5 mm (4.7" × 4.1" × 12.1")
Pakuotės dydis 405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")
Approx. 1400 g (3.1 lb.)
Svoris su įpakavimu Approx. 2100 g (4.6 lb.)
Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos Anti-banding, heartbeat, mirror, flash log, pixel counter
Flashing Light Yes

Patvirtinimai
EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7
Saugumas
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017
Aplinkosauga
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
Apsauga IP67: IEC 60529-2013
