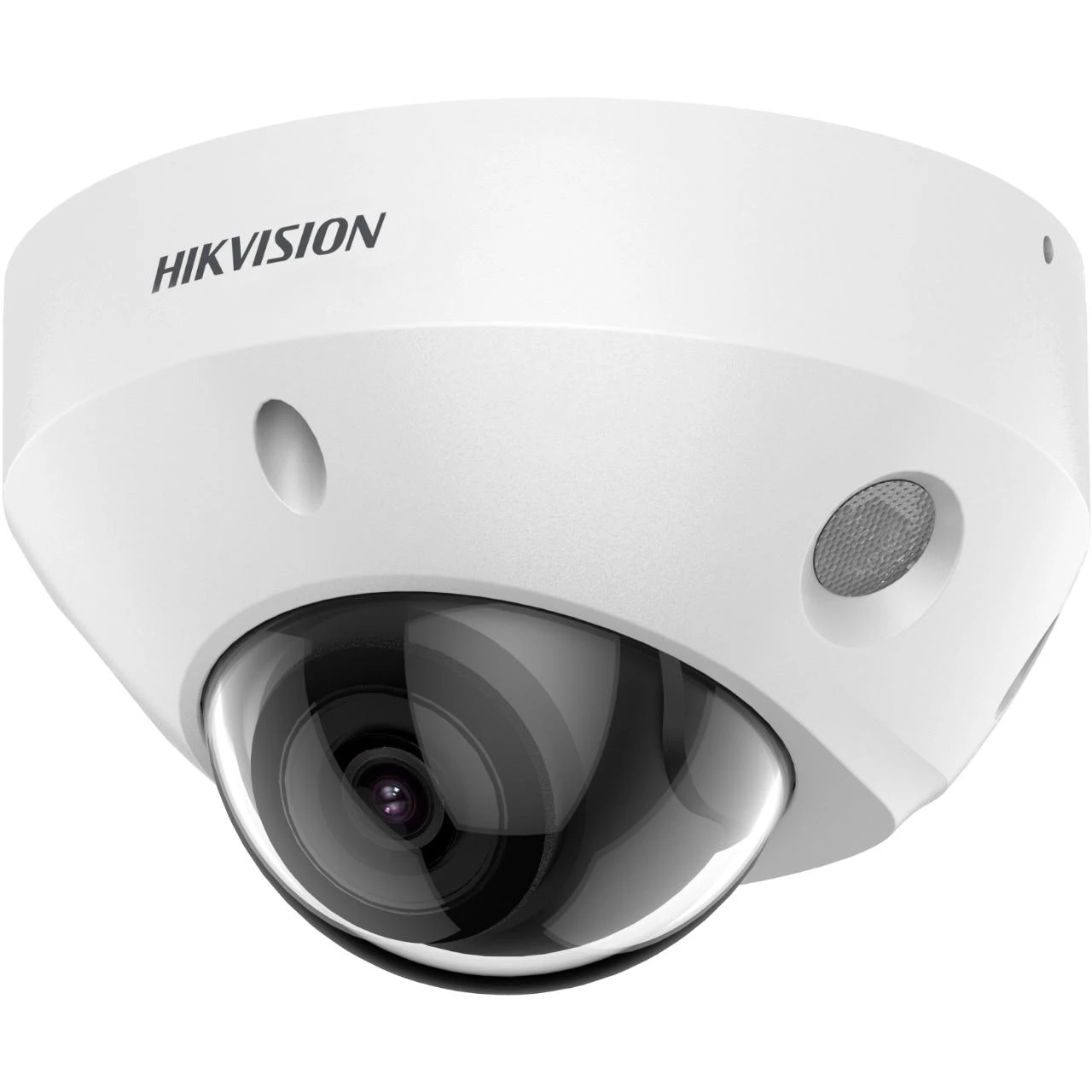

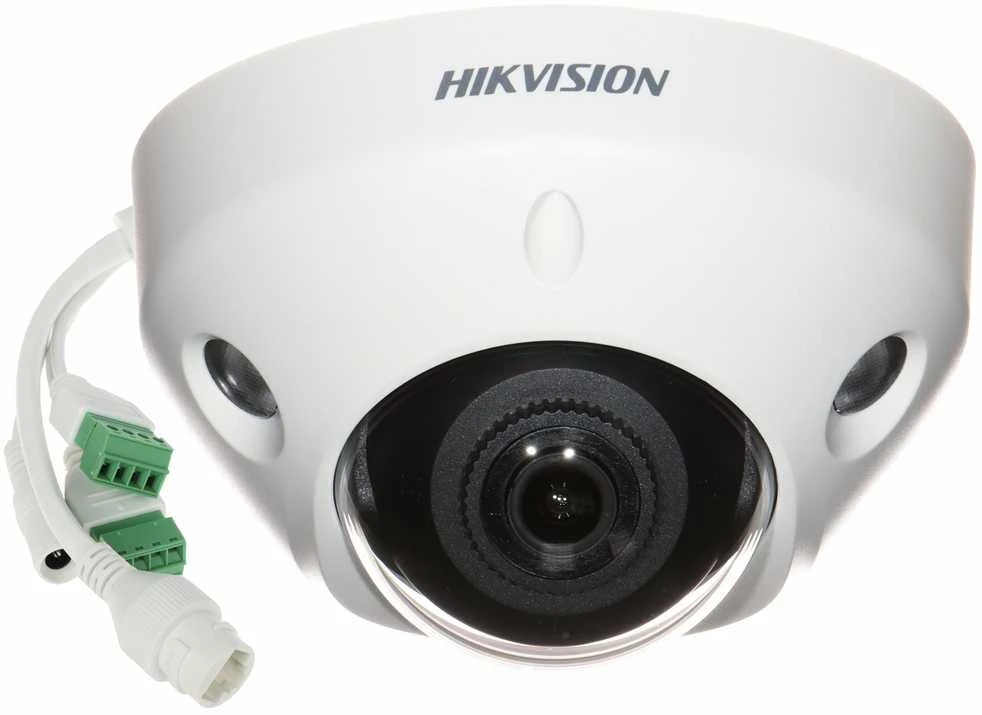

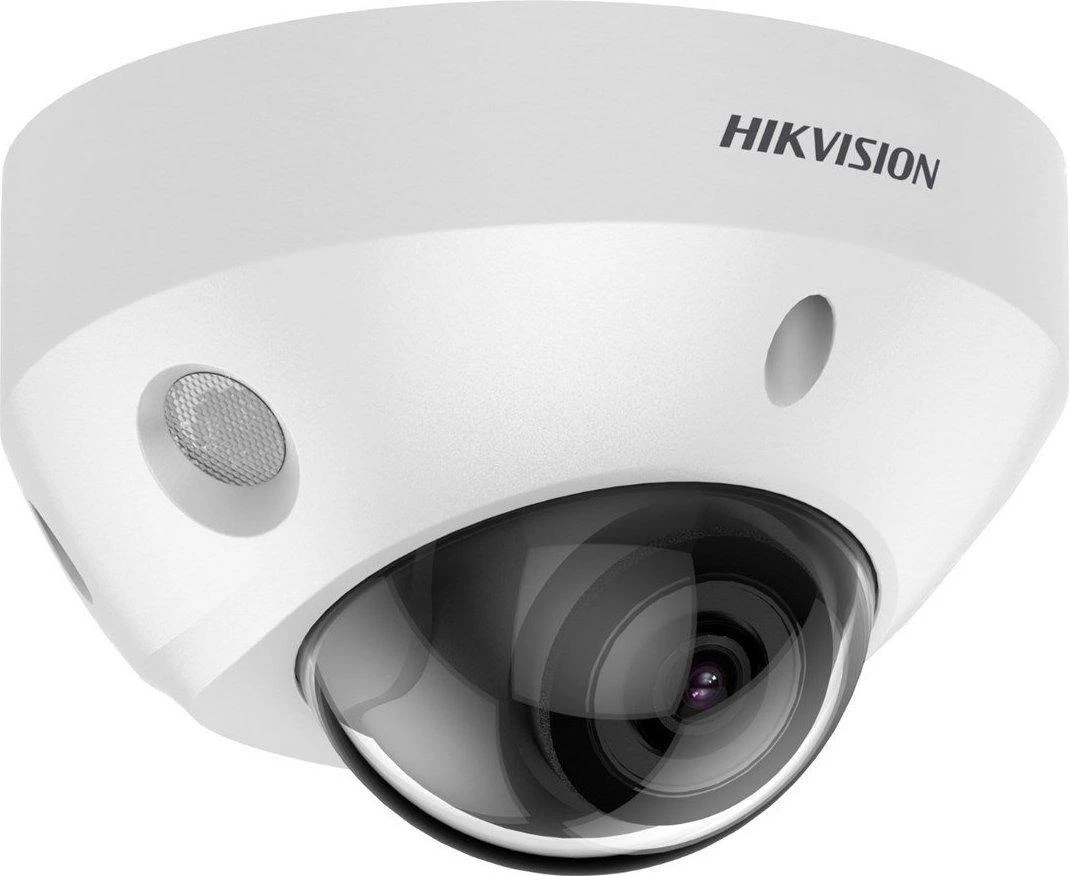

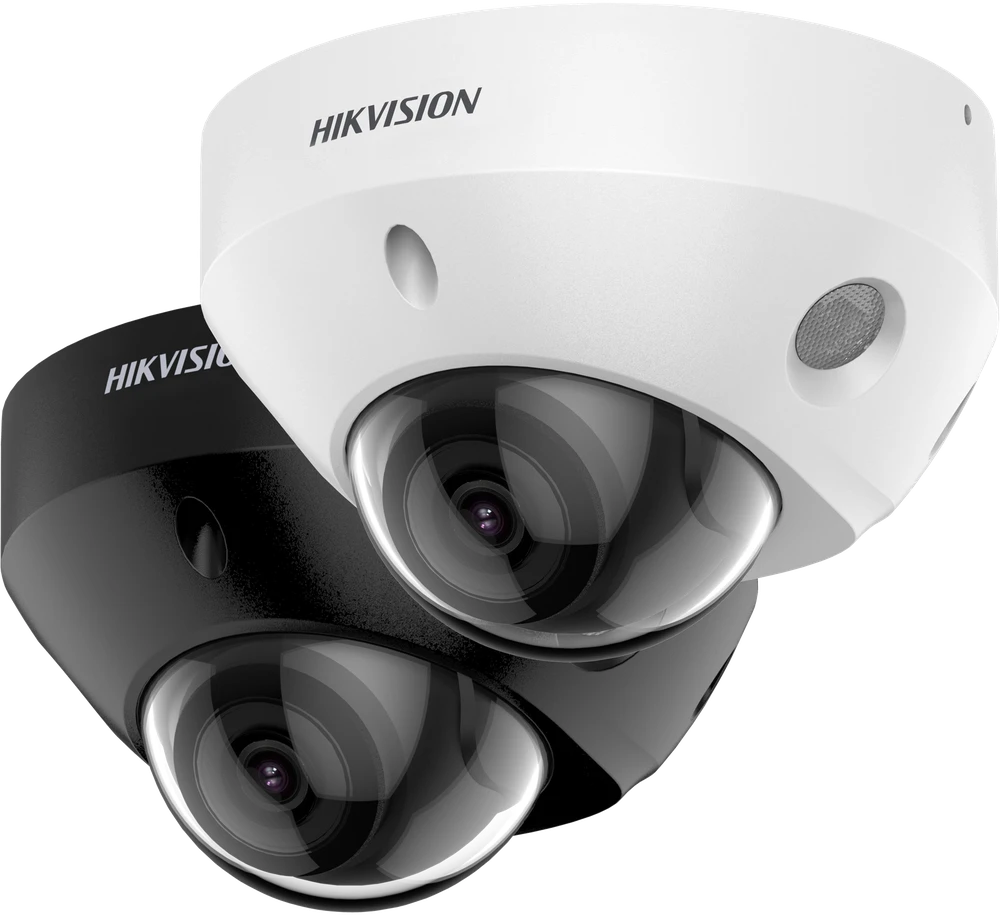

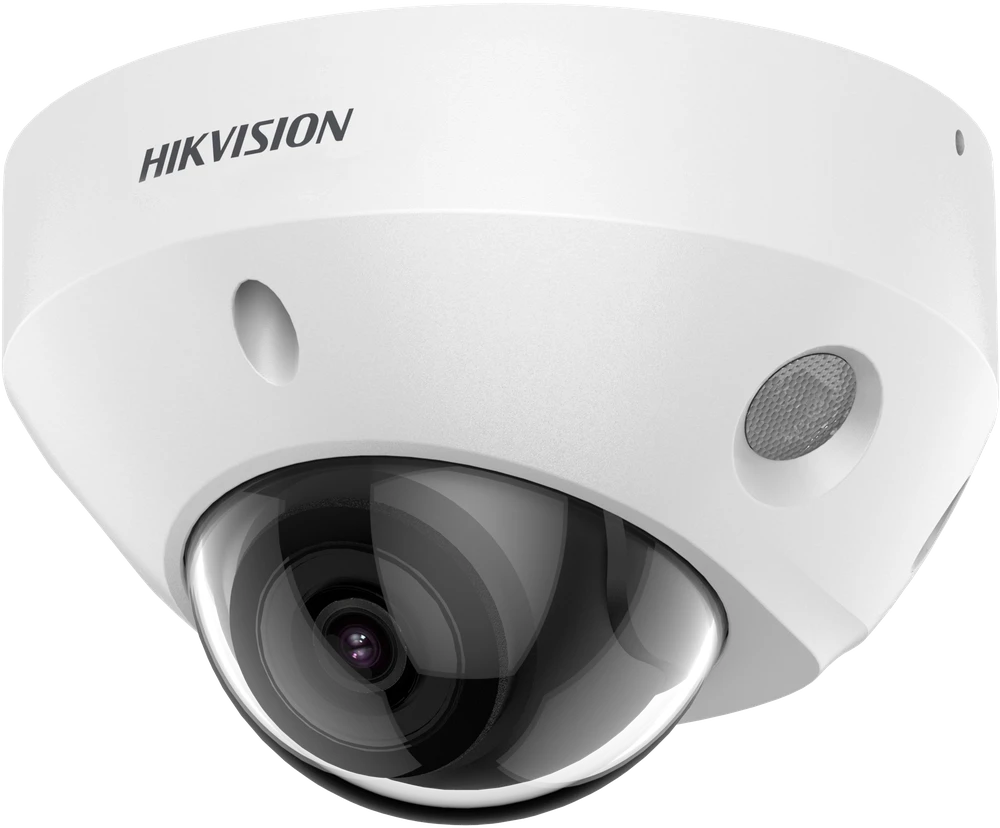

Hikvision | IP kamera | DS-2CD2583G2-IS F2.8 | Kupolas | 8 MP | 2,8 mm / 4 mm | Maitinimas per Ethernet (PoE) | IP67, IK08 | H.265/H.264/H.264+/H.265+ | „MicroSD“ iki 256 GB

2.8 mm, horizontal FOV 106.4°, vertical FOV 58.4°, diagonal FOV 124.8°

4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°

2.8 mm: 1.4 m to ∞

4 mm: 2.1 m to ∞

2.8 mm:

D: 88 m

O: 35 m

R: 18 m

I: 9 m

4 mm:

D: 118 m

O: 47 m

R: 24 m

I: 12 m

50 Hz:

20 fps (3840 × 2160)

25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

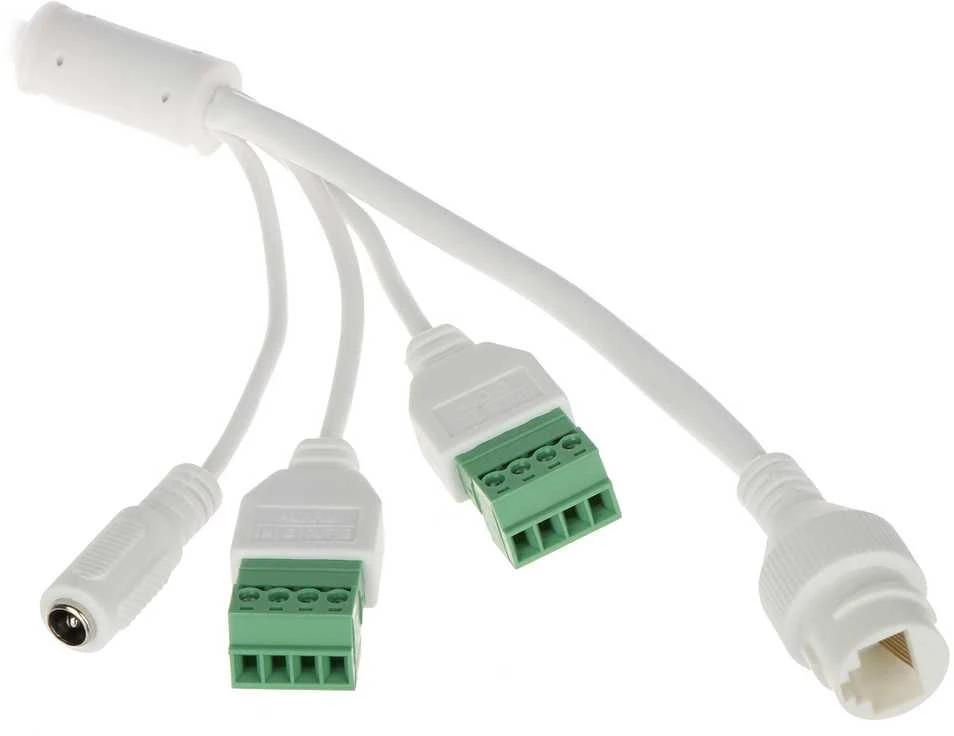

-IS:

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

-IS:

1 input, 1 output (max. 12 VDC, 20 mA)

12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: (802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

FCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015)

IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)

UL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)

CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)

IP67 (IEC 60529-2013)

IK10 (IEC 62262: 2002)
