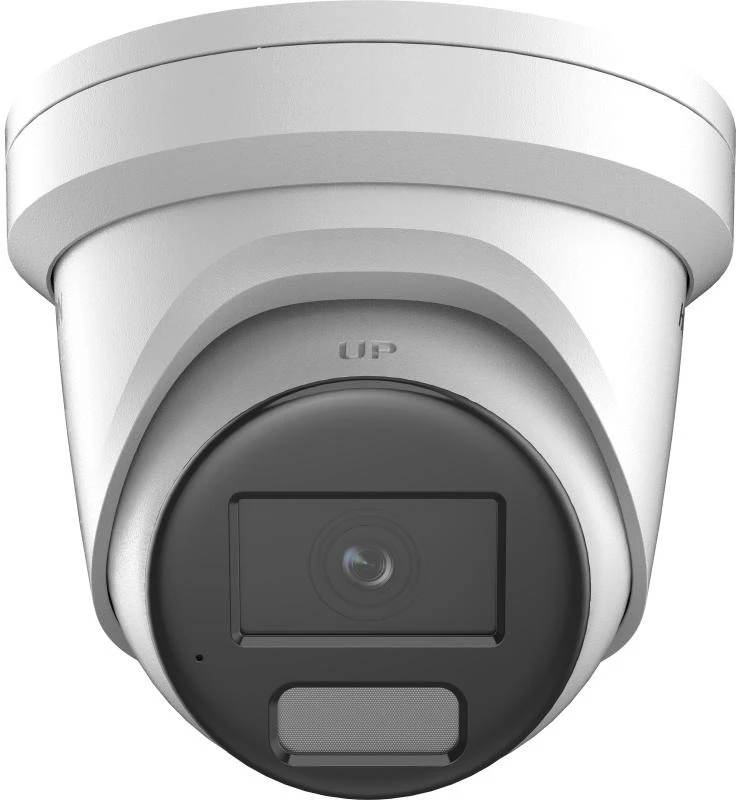

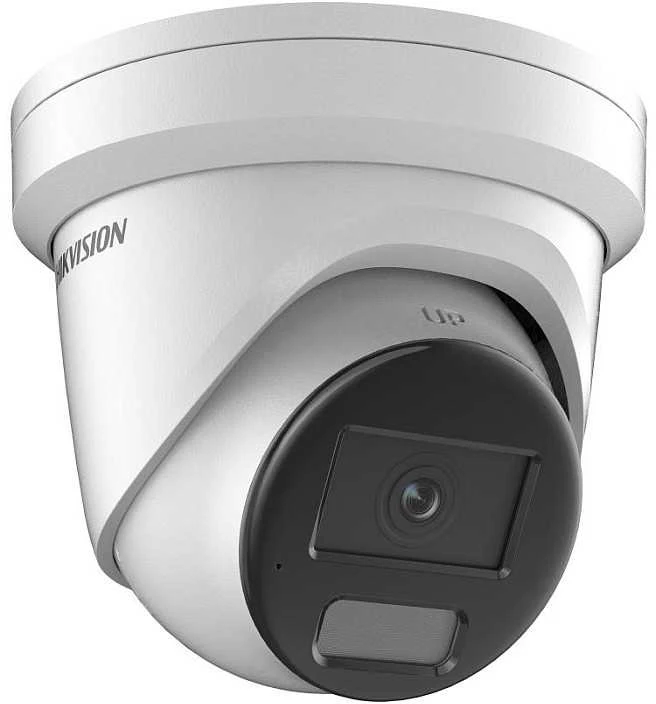

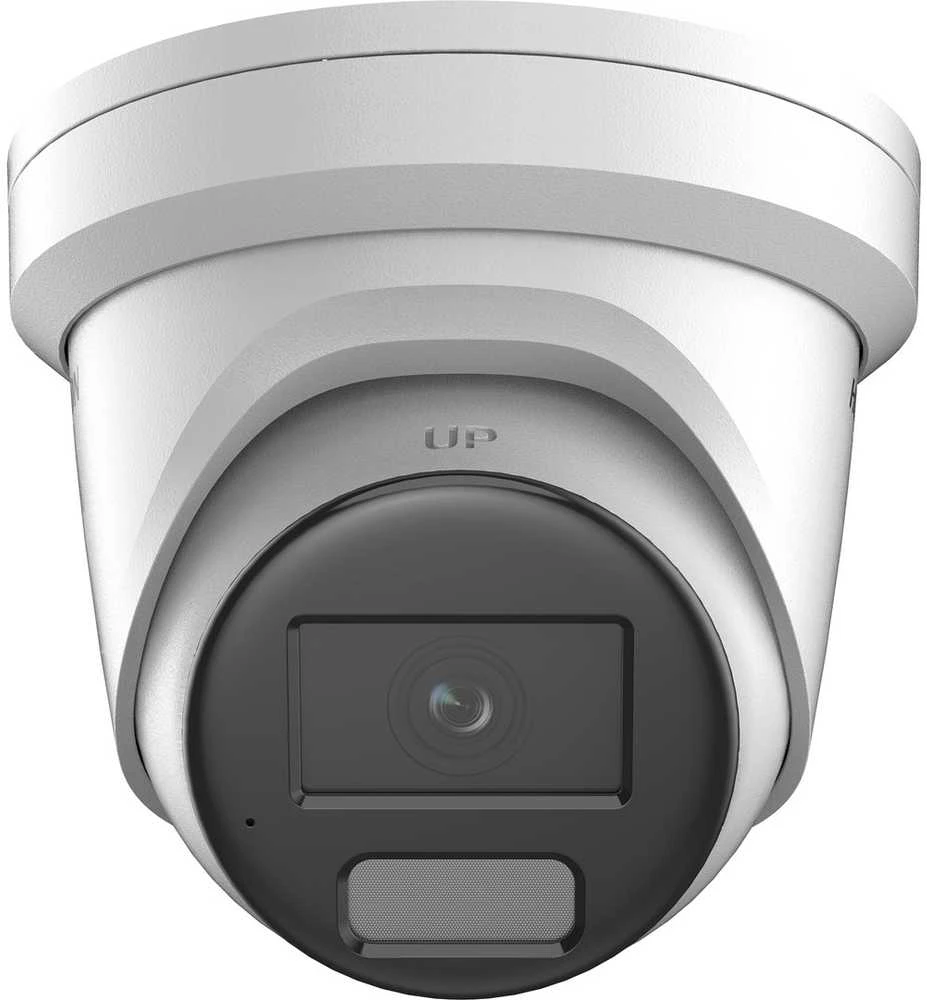

HIKVISION IP CAMERA DS-2CD2386G2H-IU(2.8mm)(eF)

Modelis: DS-2CD2386G2H-IU, 2.8mm, Dome, baltos spalvos
Rezoliucija: 8MP
Objektyvas: 2.8 mm, horizontalus FOV 108.8°
Technologija: AcuSense
Integruotas mikrofonas: Taip
Naktinis pašvietimas: 30 m. IR
Vieta microSD talpai: Taip, 256GB
Darbo sąlygos: -30 °C iki 60 °C
Saugos lygis: IP67
Vaizdo suspaudimas: H.265+
WiFi: Ne
Laikiklis/bazė (papildomai): DS-1280ZJ-PT6
Lauko/vidaus: Lauko

Aprašymas:

Kamera
• Sensorius: 1/1.8" Progressive Scan CMOS
• Maks. rezoliucija: 3840 × 2160
• Min. apšvietimas: Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
• Užrakto greitis: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Kampo keitimas: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lęšis
• Lęšio tipas: Fixed focal lens, 2.8mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
• Lęšio montavimas: M16
• Rainelės tipas: Fixed
• Diafragama: F1.0
• Ryškumo gylis: 2.8 mm, 3.3 m to infinite
DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
Apšvietimas
• Papildomo apšviešimo tipas: IR
• Papildomo apšvietimo diapazonas: Up to 30 m
• Išmanus papildomas apšvietimas: Yes
• IR bangos ilgis: 850 nm
Vaizdas
• Pagrindinis srautas:
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Antrinis srautas:
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Trečias srautas:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
• Vaizdo suspaudimas: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 *Third stream is supported under certain settings.
• Vaizdo bitų greitis: 32 Kbps to 8 Mbps
• H.264 tipas: Baseline Profile, Main Profile, High Profile
• H.265 tipas: Main Profile
• Bitų greičio kontrolė: CBR/VBR
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding
Garsas
• Pašalinių garsų šalinimas: -U: Yes
• Garso suspaudimas -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Garso bitų greitis: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Garso atrankos dažnis -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Internetas
• Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Tiesioginis vaizdo žiūrėjimas: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Vidinė atmintis: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Klientas: iVMS-4200, Hik-Connect, Hik-Central
• Naršyklė: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Nuotrauka
• Nuotraukos parametrų keitiklis: yes
• Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Diena/Naktis režimas: Day, Night, Auto, Schedule
• Nuotraukų pagražinimas: BLC, HLC, 3D DNR
• SNR: > /= 52 dB
• Wide Dynamic Range (WDR): 120 dB
• Privatumo kaukė: 4 programmable polygon privacy masks
Sąsaja
• Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Vidinė atmintis: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Įmontuotas mikrofonas: -U: Yes

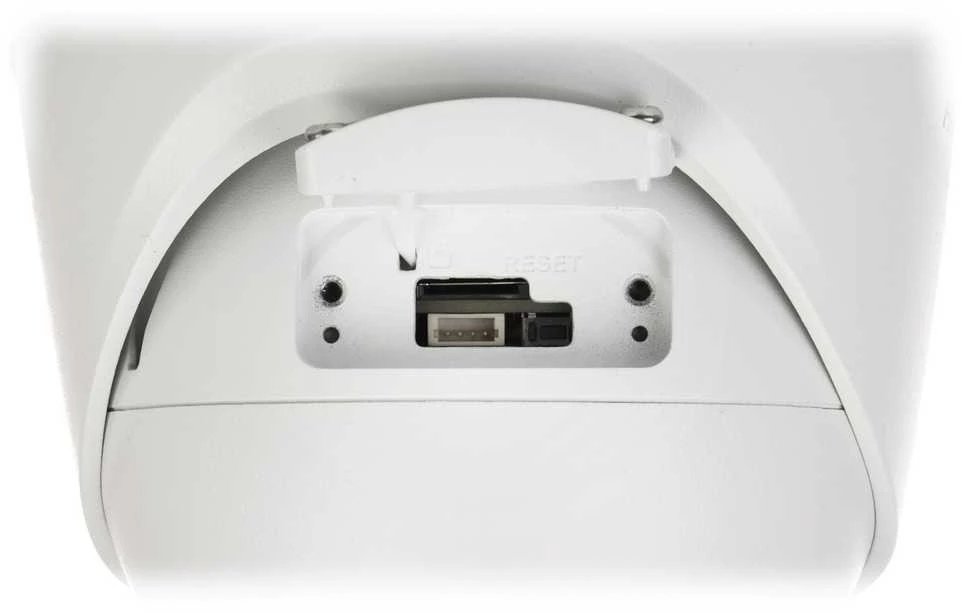

• Perkrovimo mygtukas: Yes
Funkcijos
• Pagrindinės funkcijos: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Išmaniosios funkcijos: Scene change detection
• Sąsaja: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Išmaniosios funkcijos
• Veido atpažinimas: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Pagrindinis
• Sistemos parametrai: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8 W
• Medžiaga: Cover: metal, main body: metal

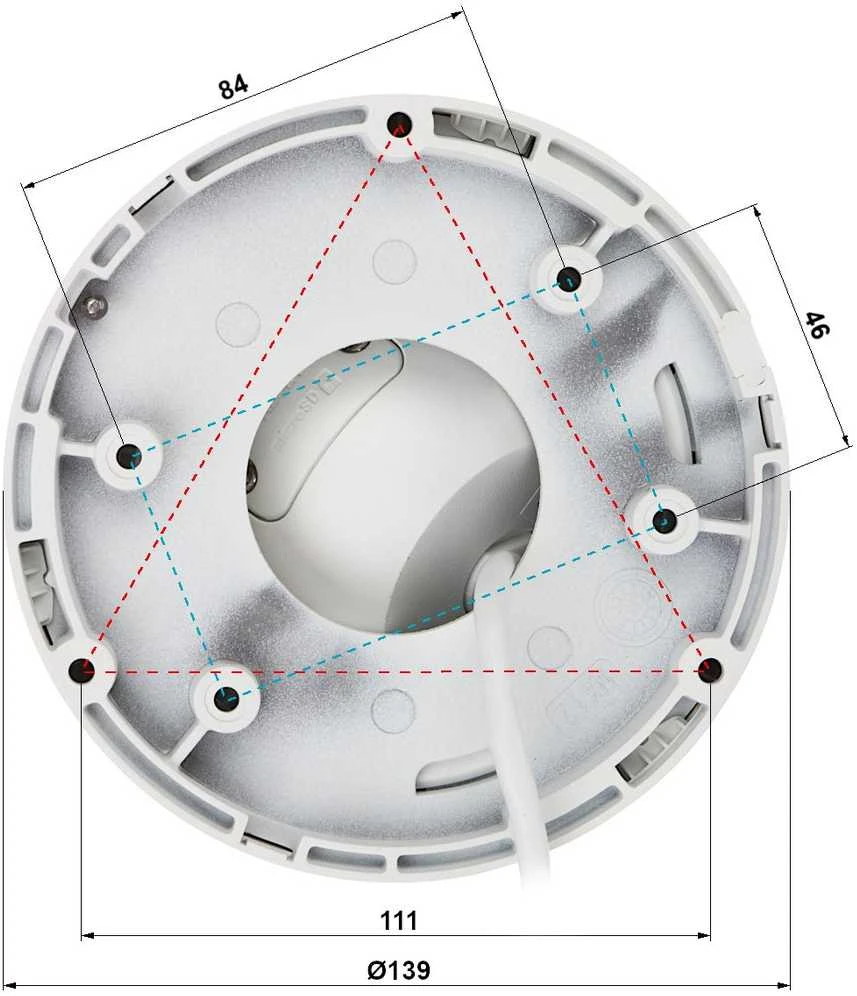

• Dydis: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Pakuotės dydis: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• Svoris: Approx. 775 g (1.7 lb.)
• Svoris su įpakavimu: Approx. 1231 g (2.7 lb.)
• Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Pagrindinės funkcijos: Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Patvirtinimai
• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32: 2015
• Saugumas: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
• Aplinkosauga: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Apsauga: IP67: IEC 60529-2013

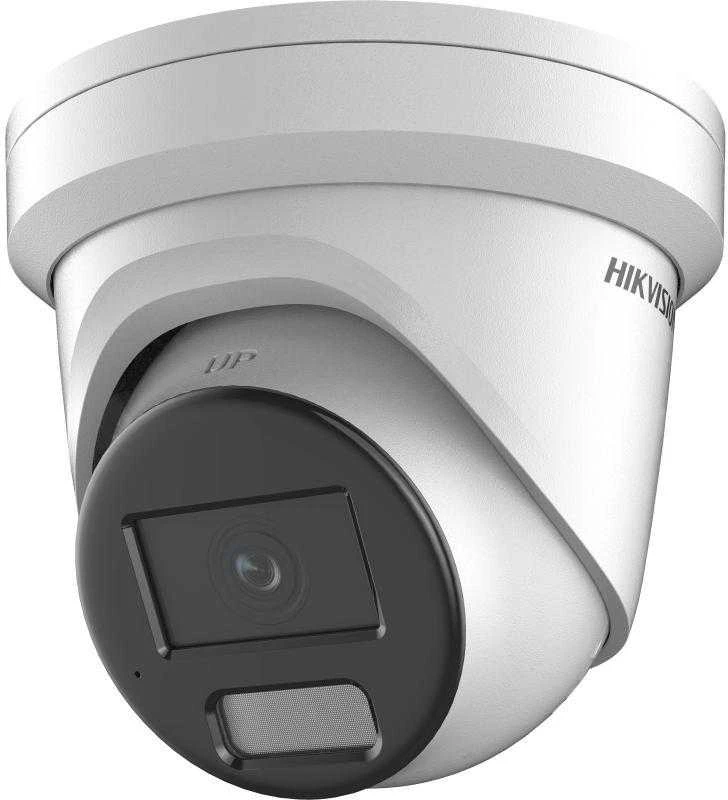

DS-2CD2386G2H-IU 8MP Powered by Darkfighter Fixed Turret Network Camera

Features

Model: DS-2CD2386G2H-IU (2.8mm), black
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67

Specifications

Camera
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
• Lens Type: Fixed focal lens, 2.8mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm: 3.3 m to infinite
• DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
Illuminator
• Supplement Light Type : IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
Video
• Main Stream:
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
• Video Compression:
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264 *Third stream is supported under certain settings.
• Video Bit Rate 32 Kbps to 16 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR, VBR
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
• Environment Noise Filtering -U: Yes
• Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate -U: 8 kHz/ 16 kHz/ 32 kHz/ 44.1 kHz/ 48 kHz
Network
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Wide Dynamic Range (WDR) 120 dB
• SNR > /= 52 dB
• Day/Night Switch: Day,Night,Auto,Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Image Parameters Switch: yes
• Privacy Mask: 4 programmable polygon privacy masks
Interface
• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: -U: Yes
• Reset Key: Yes
Event
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
• Smart Event: Scene change detection
Deep Learning Function
• Face Capture: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
General
• Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8 W
• Material: Cover: Metal, main body: Metal

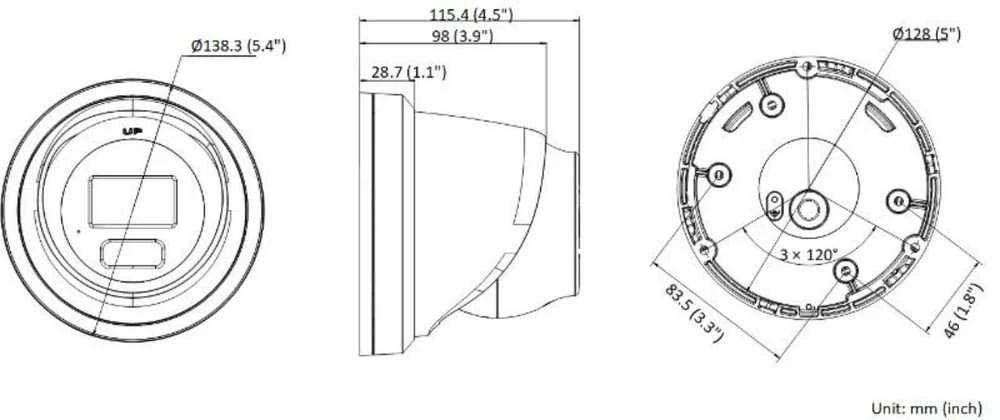

• Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• Weight Approx. 775 g (1.7 lb.)
• With Package Weight Approx. 1231 g (2.7 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32: 2015
• Safety:
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection IP67: IEC 60529-2013
