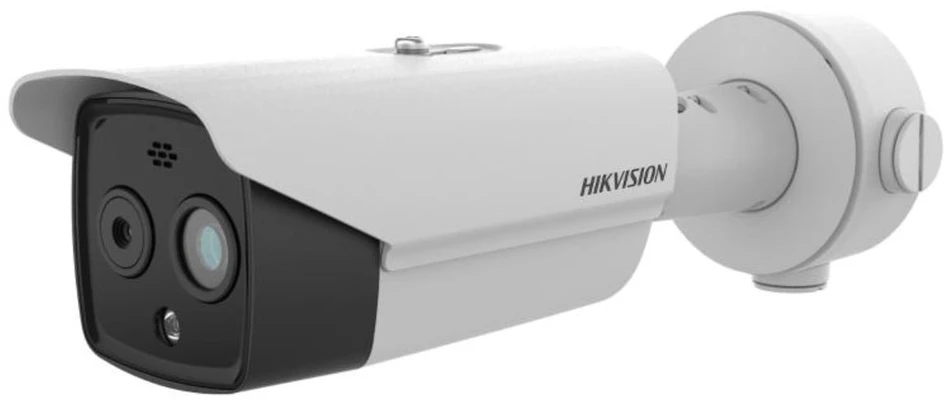

Hikvision HeatPro serijos termovizorinis bullet DS-2TD2628T-7 / QA, žema kaina

Optinis modulis
Sensorius 1/2.7" Progressive Scan CMOS
Rezoliucija 2688 × 1520
Min. apšvietimas 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
FOV 53.0° ×28.0° (H × V)
FOV 6.4 mm
Užrakto greitis 1 s to 1/100,000 s
Baltos spalvos balansas MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode IR Cut Filter with Auto Switch
WDR 120 dB
Diafragama F 1.6

Vaizdo efektas
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Tikslinė spalva Yes. Supported in white hot and black hot mode.

Garsinis ir vaizdinis signalas
Baltos šviesos diapazonas Up to 30 m
Vaizdinė signalizacija Yes. White light alarm with adjustable flashing frequencies
Garso signalizacija
Yes, for three types of audible alarm (VCA and Temperature Exception)

3 preset voice alerts (one for each)

6 importable user-defined voice alerts (6 options shared in the two types)

Išmanioji funkcija
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperatūros matavimas 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperatūros diapazonas -20°C to 550°C (-4°F to 1022°F);
Temperatūros tikslumas Max (±2°C, ±2 %)
Pagrindinės funkcijos Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter

Internetas
Protokolai IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
Vidinė atmintis MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Tiesioginis vaizdo žiūrėjimas Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Saugumas User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Klientas iVMS-4200, Hik-Connect

Sąsaja
Signalizacijos įvestis 2, alarm input (0-5 VDC)
Signalizacijos išvestis 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Garso įvestis
1, 3.5 mm Mic in/Line in interface

Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Garso išvestis Linear level, impedance: 600 Ω
Bendravimo sąsaja
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

1, RS-485 interface (half duplex)
Analoginė išvestis 1.0V [p-p]/75Ω, PAL/NTSC/BNC

Pagrindinis
Kalbos 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Maitinimas
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

PoE (802.3af, class 3)
Energijos sunaudojimas
24 VDC ± 25%: 0.8 A, Max.8.5 W

12 VDC ± 25%: 0.7 A, Max.8.5 W

PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
Darbinė temperatūra / drėgmė
Temperature: -40°C to 65°C (-40°F to 149°F)

Humidity: 95% or less
Apsaugos lygis
IP67 Standard

TVS 4000V lightning protection, surge protection, voltage transient protection

IK10-rated housing
Dydis 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Svoris 1550 g (3.41 lb)
